4.4 Cyclone 208i Input connectors
Analogue input XLR-M pinout
Pin 1 GND
Pin 2 Hot +
Pin 3 Cold -
Analogue input TRS Jack pinout
Tip Hot +
Ring Cold -
Sleeve GND
4.5 Cyclone 208i Output connectors
Output A
UG10916-1.0 - Cyclone 208i User Guide
+ +
-
-

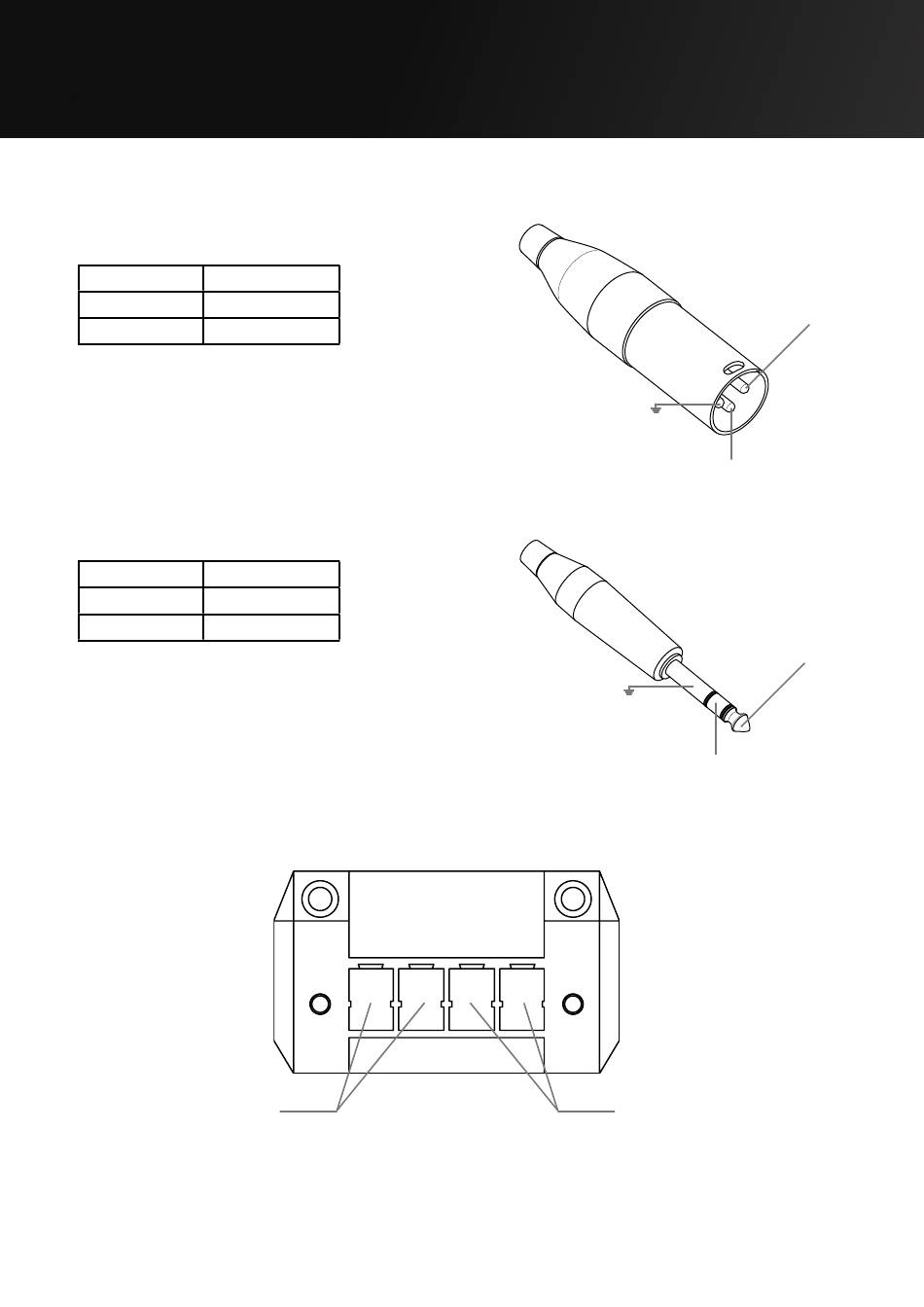

Figure 4.4: Output phoenix connector
2
3
1
GND
-Cold
Figure 4.2: XLR-M diagram
GND
-Cold
Figure 4.3: TRS Jack diagram
Output B
+Hot
+Hot
