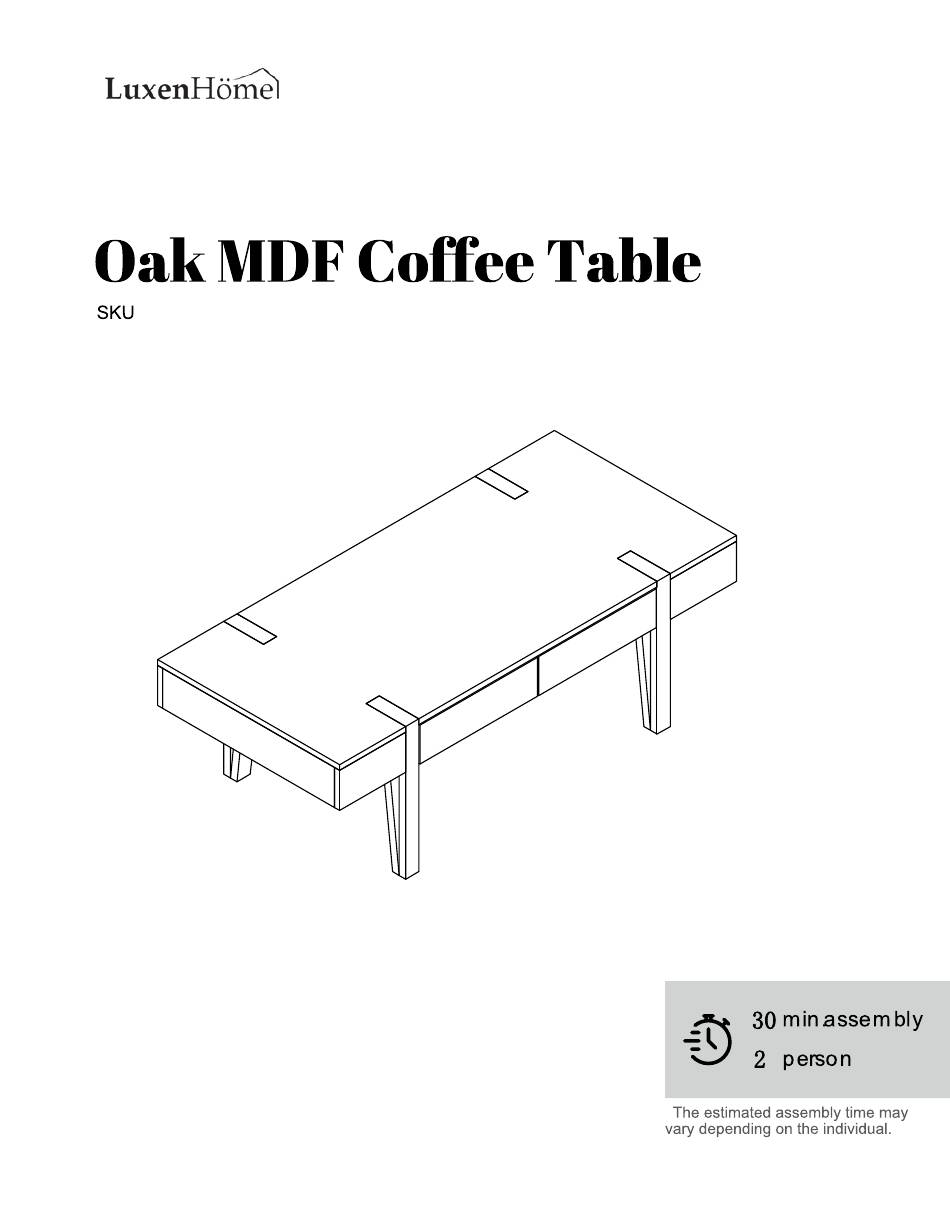

- Page 1 WHIF1635 A S S E M B L Y I N S T R U C T I O N S...
-
Page 2: Tools Required
Hey, there Thank you for purchasing this LuxenHome product. This product has been manufactured with the highest Now is assembly time! standards of safety and quality. Deeeeeep breathe..and again..Tools ready, PLEASE READ ALL INSTRUCTIONS CAREFULLY Easy peasy! BEFORE ASSEMBLY. -
Page 3: Hardware & Accessory
Top table panel Table side panel Table middle panel Table short panel Table short panel Table middle panel Table middle panel Table back panel Metal leg Table middle panel Drawer left panel Drawer front panel Drawer back panel Drawer bottom panel Drawer right panel Drawer front panel Hardware &... - Page 4 Please save this manual for future reference.
- Page 5 Step 1 1.Install hardware⑨ on panel H and hardware ⑧ on panel F with screw ⑥. 2.Install hardware ⑨ on left side panel G,and install hardware ⑧ on right side of panel G with screw ⑥. Please pay attention and select correct holes. Please save this manual for future reference.
- Page 6 Step 2 Vertically screw hardware ① on panel I & panel A . Please save this manual for future reference.
- Page 7 Step 1.Connect panel H,G & F to panel I by using hardware ② . 2.Fix panel H,G,F & I onto panel A with hardware ②&③ . Please save this manual for future reference.
- Page 8 Step 4 1.Vertically screw hardware ① onto panel E & D . 2.Connect panel E,B,D & C with hardware ②&③ as shown . Please save this manual for future reference.
- Page 9 Step 5 Fix panel E,B,D&C to panel A with hardware ② &③. Please save this manual for future reference.
- Page 10 Step 6 Assemble metal legs J to panel F,C & H by using hareware ④ & ⑤ . Please save this manual for future reference.
- Page 11 Step 7 Connect panel K & L to panel M with hardware ⑦；insert panel N along the groove; Same assemble instruction for both drawers. Then connect the drawer front panel O & P with hardware ① & ②. Please save this manual for future reference.
- Page 12 Step 8 Install hardware 10 & 11 on drawer bottom with hardware 6 as shown, Pay attention and select correct holes. Please save this manual for future reference.
- Page 13 Step 9 Install drawer as shown,please note the drawers are different. Please save this manual for future reference.
- Page 14 V O I L A ! Now enjoy. Please save this manual for future reference.
- Page 15 If you experience any dissatisfaction, feel free to contact us immediately. Our in-house customer care team will respond ASAP. customerservice@luxenhome.com Things to do to Get response within 24 hrs expedite the process 909.548.6688...
- Page 16 Happy with our product? Leave us a review Share with others It really help us as a small business Our customers look for REAL stuff Follow us on IG @luxen.home Find the product you purchased on Share your #liveluxen moments our website (tip: search by SKU) and leave us a review.
