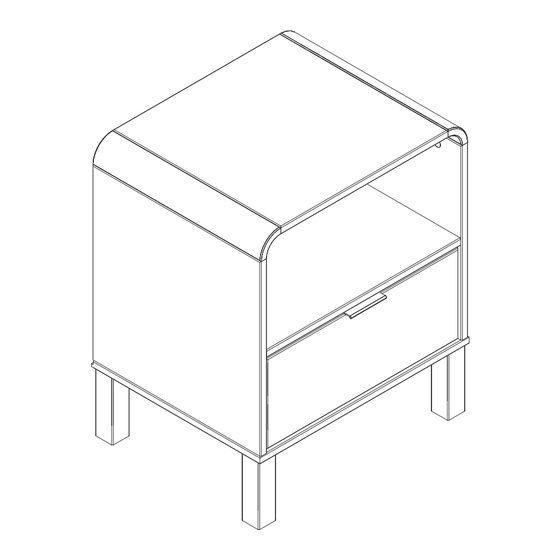

Walker Edison Elias ELIB4C Assembly Instructions Manual

Hide thumbs Also See for Elias ELIB4C:

Advertisement

Quick Links

Download this manual

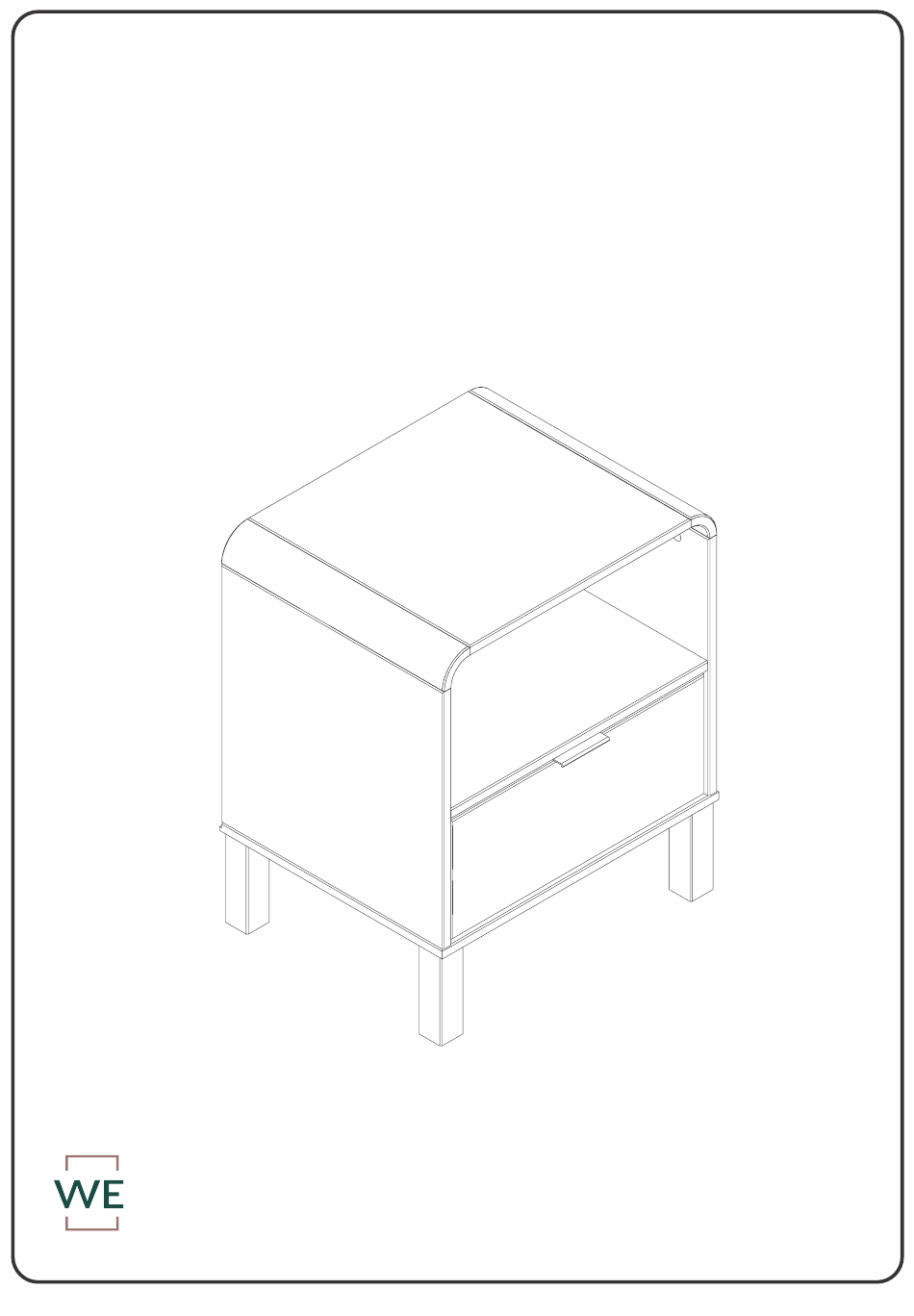

Please visit our website for the most current instructions, assembly tips, to report damage
or request parts. www.walkeredison.com
Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.
Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.
Item: ELIB4C
Assembly Instructions
Revised 08/2024-V3
P.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Elias ELIB4C and is the answer not in the manual?

Questions and answers

Related Manuals for Walker Edison Elias ELIB4C

Summary of Contents for Walker Edison Elias ELIB4C

  • Page 1 Please visit our website for the most current instructions, assembly tips, to report damage or request parts. www.walkeredison.com Revised 08/2024-V3 Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved. Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.
  • Page 2 A Phillips head screwdriver is required for the assembly of this product.

  • Page 3: Parts List

    Parts List 01 pc 01 pc 01 pc Bottom panel 01 pc 01 pc 01 pc Shelf 04 pcs 01 pc 01 pc 01 pc 01 pc 01 pc...

  • Page 4: Hardware List

    Hardware List ø8*30mm 22 pcs 06 pcs ø3,5*20mm Screw ø3,5*30mm Screw 04 pcs 06 pcs Screw ø4,0*40mm 10 pcs ø15*12mm Cam Lock 06 pcs ø6,0*8mm Screw ø3,5*14mm 08 pcs Screw ø7,0*80mm 04 pcs Bolt 10 pcs ø5,0*24mm Cam Bolt 01 pcs Handle Hex key 01 pc...
  • Page 5 Hardware List ø30mm Felt sticker 04 pcs Right Drawer 01 pc ø250mm slide support Left Drawer ø250mm 01 pc slide support Right Drawer ø250mm 01 pc slide Left Drawer ø250mm 01 pc slide...
  • Page 6 Step 1 Insert wooden dowel (A) into parts 25, 26, 29, 30, 42 e 43. ø8*30mm Step 2 1 - Ensure cam bolt is installed straight and not at an angle. 2 - Tighten cam bolt until shoulder on cam bolt is flush.
  • Page 7 Step 3 Insert Plastic fixing device (L) into parts 42 and 43. ø26mm Step 4 Secure right side slide support (O) to part 42 with screw (F) and phillips head screwdriver Pay attention to the identification ø6,0*8mm ø250mm Secure left side slide support (P) to part 43 with screw (F) and phillips head screwdriver ø250mm...
  • Page 8 Use a phillips screwdriver to fix the screw (G) Step 5 into the right side slide and left side slide. ø3,5x14mm Step 6 Secure part 45 to part 42. Insert screw (B) into Plastic fixing device (L) and tighten with a Phillips head screwdriver. ø3,5*20mm...
  • Page 9 Step 7 Align the opening in cam lock to the cam bolt and press into opening. Using a screwdriver, rotate the cam lock until it engages with the cam bolt and locks in place (anywhere between 90-180 degrees). Do not over-tighten the cam lock.
  • Page 10 Secure part 43 to part 45. Insert screw (B) into Plastic fixing Step 9 device (L) and tighten with a Phillips head screwdriver. ø3,5*20mm Step 10 Insert part 07 between parts 42 and 43. Name and address of the supplier and date of production.
  • Page 11 Step 11 Insert bolt (H) into part 24 and 26, and tighten with hex key (K). Ø7*80mm Step 12 Secure part 24 to parts 42 and 43 with screw (D) and tighten with a Phillips head screwdriver. ø4,0*40mm P.11...
  • Page 12 Step 13 Remove the felt sticker from the paper. Glue the felt to the bottom of the foot. ø30mm Step 14 ø15*12mm Secure parts 29 and 30 to part 44 using Cam Lock (E) and tighten with a Phillips head screwdriver. P.12...
  • Page 13 Step 15 Insert part 46 between parts 29 and 30. Secure part 46 to parts 29 and 30 with screw (C) and phillips head screwdriver. Insert part 27 between parts 29 and 30. ø3,5*30mm Step 16 ø3,5x14mm Attach handle (J) with screw (G) and Phillips head screwdriver.
  • Page 14 Step 17 Secure Right drawer slide (Q) into part 30 with screw (F), tighten with a Phillips head screwdriver. Secure Left drawer slide (R) into part 29 with screw (F), Rotate 90° tighten with a Phillips head screwdriver. Right side Left side ø250mm ø250mm...
  • Page 15 Step 18 Insert Cover (M) into Plastic fixing device (L) in the parts 42 and 43. ø33mm 1 - Fit the Right drawer slide into the Right side slide support (O). 2 - Fit the Left drawer slide (R) into the Left side slide support (P).
