Solid Wood Queen Bed with
Arched Headboard
SKU# ELIB5C
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com
Copyright
2024
by Walker E dison F urniture Co., LLC. All rights reserved .
Revised 06/2024-V2
1
©

Advertisement

loading
Need help?

Need help?

Do you have a question about the Elias ELIB5C and is the answer not in the manual?

Questions and answers

Related Manuals for Walker Edison Elias ELIB5C

Summary of Contents for Walker Edison Elias ELIB5C

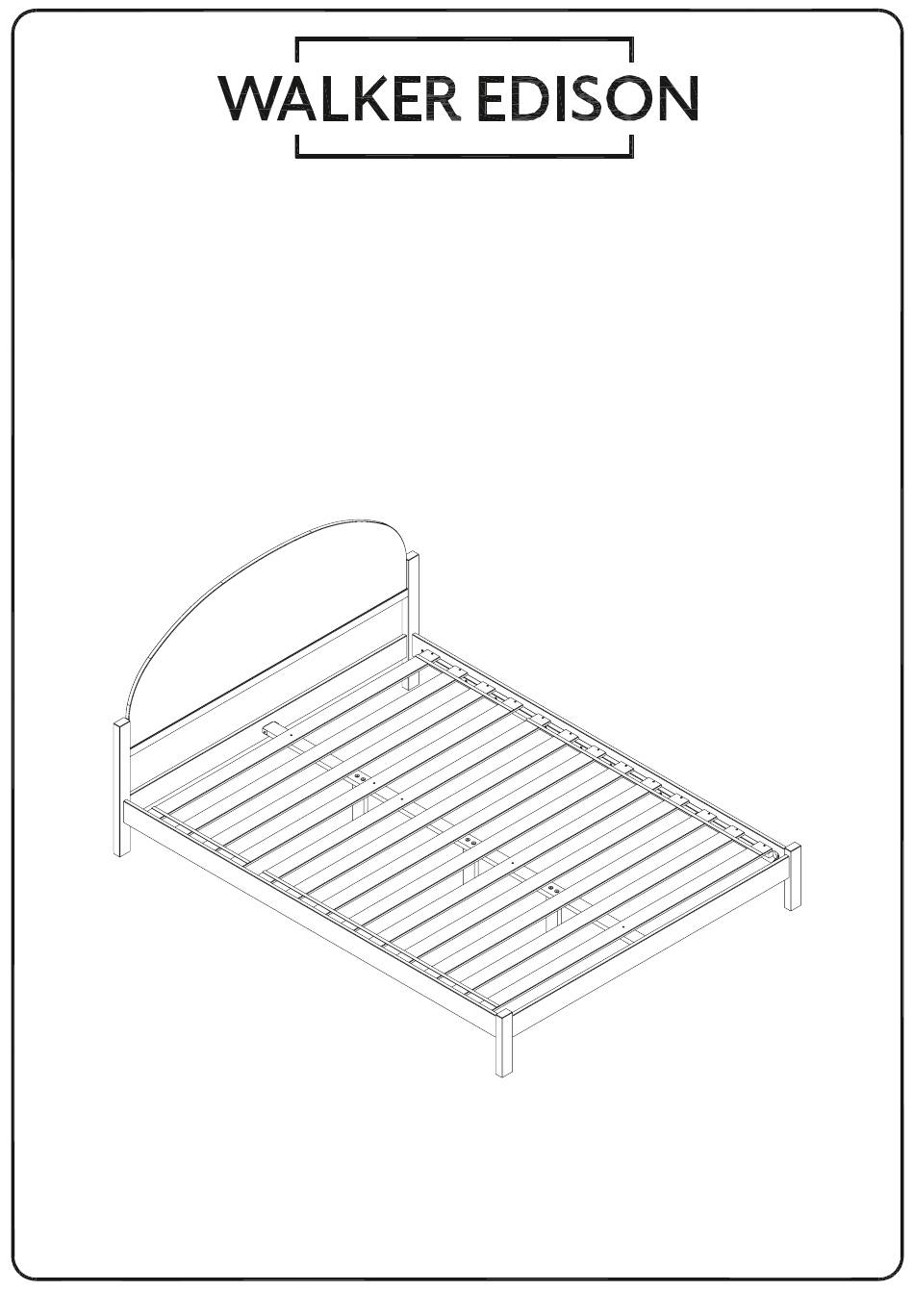

  • Page 1 Solid Wood Queen Bed with Arched Headboard SKU# ELIB5C For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Copyright 2024 by Walker E dison F urniture Co., LLC. All rights reserved . Revised 06/2024-V2 ©...
  • Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Scan to get assembly tips and help!

  • Page 3: Parts List

    Parts List Part Number Description Quantity Footboard Left Leg Footboard Right Leg Footboard Rail Headboard Rail Headboard Panel Slats Center Foot Center Slat Slats Headboard Panel Rail Headboard Right Leg Headboard Left Leg Bed Side Rail...

  • Page 4: Hardware List

    Hardware List Part Size Name Quantity 10x40mm Wooden dowel 4x30mm Screw 1/4x80mm Bolt with Nut Hex Key Support 4x16mm Screw 19mm Plastic foot Bolt 7x60mm 3,5x40mm Screw Flat Key Perforated 1/4x75mm Head Bolt 25x15mm Fork washer The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included.
  • Page 5 Step 1 Let’s get started. Start by inserting Wooden dowels (A) into the Footboard Rail (5), Headboard Rail (6), Headboard Panel (8), Headboard Panel Rail(13) and Bed Side Rail (24).
  • Page 6 Step 2 Then insert Perforated Head Bolt (L) into the Footboard Left Leg (3), Footboard Right Leg (4), Headboard Right Leg (21) and Headboard Left Leg (22).
  • Page 7 Step 3 Now we will attach the Headboard Left Leg (22) into Headboard Panel (8) and fix the Perfurated Head Bolt (L) with Fork Washer (M) and Flat Key (K). Attach elso the Headboard Panel Rail (13) into Headboard Left Leg (22). Pay attention to this hole position...
  • Page 8 Step 4 Fix the Headboard Rail (6) into Headboard Left Leg (22) with Screws ( J) and Phillips head screwdriver.
  • Page 9 Step 5 Attach now the Headboard Right Leg (21) with previous steps. Use the Flat Key (K) to Perfurated Head Screw (M) and Plhillips Head Screwdriver to Screws ( J).
  • Page 10 Step 6 Fix the Headboard Panel Rail (13) to Headboard Panel (8) with Screws (B) and Phillips Head Screwdriver.
  • Page 11 Step 7 Fix the Footboard Rail (13) to Footboard Left Leg (3) and Footboard Right Leg (4) with Screws ( J) and Phillips Head Screwdriver. Pay attention to this hole position...
  • Page 12 Step 8 Fix the Support (F) to Footboard Rail (5) with Screws (G) and Phillips Head Screwdriver.
  • Page 13 Step 9 Fix the Support (F) to Headboard Rail (6) with Screws (G) and Phillips Head Screwdriver.
  • Page 14 Step 10 First let’s unscrew the Nut (C2) from the Screw (C1). Attach the Bed Side Rail (24) into Headboard Left Leg (22) and Headboard Right Leg (21) with Screw (C1) in the Nut (C2), tightening with the Hex Key (E).
  • Page 15 Step 11 Now we will attach the Footboard Left Leg (3) and Footboard Right Leg (4) into Bed Side Rails (24) fixing the Perfurated Head Bolt (L) with Fork Washer (M) and Flat Key (K).
  • Page 16 Step 12 With the Hammer, fix the Plastic Foots (H) into the Center Foots (10). Then fix the Center foots (10) into Center Slat (11) with Screw (I) and Hex Key (E).
  • Page 17 Step 13 Place the Center Slat (11) inside the Support (F) and fix with Screws (G) on the side of the Support. Use a Phillips Head Screwdriver.
  • Page 18 Step 14 Finally, we will fix the Slat (9) and Slat (12) into wood support of Bed Side Rail (24). Align with details and fix with Screws (B) and Phillips Head Screwdriver.
  • Page 19 You did it! Enjoy your new Bed! Congratulations on you new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
