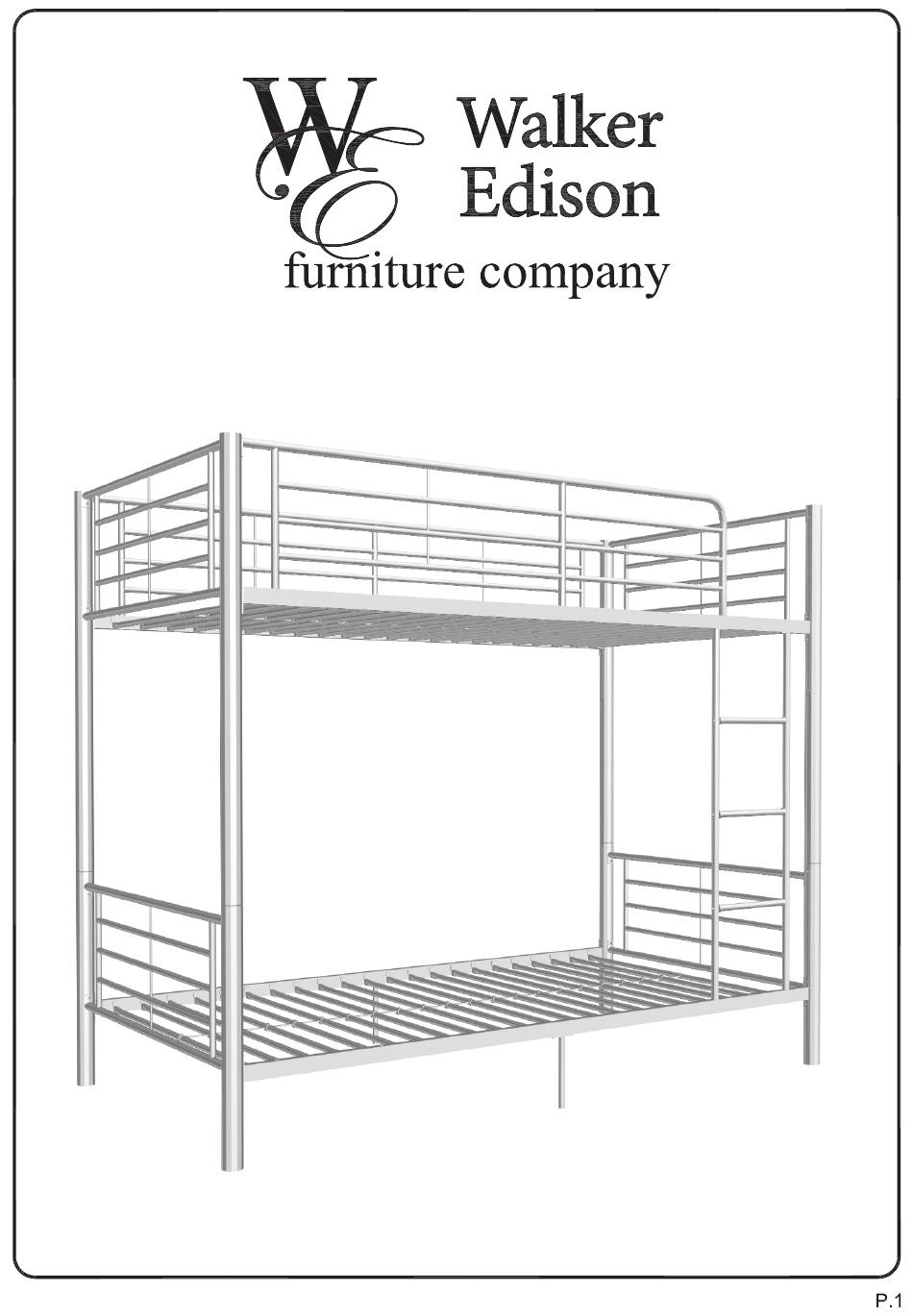

- Page 1 Item #: BTOT Assembly Instructions For our most current instructions, to request missing, lost or broken parts, or for any other Customer Service issues, please visit our website at www.walkeredison.com or call us at 877-207-5906. Revised 02/2011...
- Page 2 The use of a water or sleep flotation mattress is prohibited. Replacement parts, including additional guardrails, may be obtained from any of Walker Edison Furniture Company’s dealers or by contacting us online at www.walkeredison.com. DO NOT use substitute parts. Contact the manufacturer or dealer for replacement parts.
-
Page 3: Parts List
Parts List... -
Page 4: Hardware List
Hardware List... -
Page 5: Assembly Options
Assembly Options Option A Option B (Ladder Left) (Ladder Right) To build this option, follow steps 1 To build this option, follow steps 1 through10 then steps 11A through 13A. through10 then steps 11B through 13B. Option C (Two Twin Beds) This option shows how to separate the bunk bed into two individual twin beds. - Page 6 Slide post sections (A,B) and post sections (D,E) onto post sections (C). Ensure that the holes of all post sections align as shown above. Secure the post sections from STEP 1 together using small bolts (1) with small washers (2). Tighten small bolts (1) with small wrench (11).
- Page 7 Place guardrails (P) between the assembled posts from STEP 2. Repeat this step for both sets of guardrails and posts. Secure guardrails (P) to the assembled posts from STEP 2 using small bolts (1) with small washers (2). Tighten small bolts (1) with small wrench (11). Repeat this step for both sets of guardrails and posts.
- Page 8 Attach support legs (N) to crossbars (G,I) using small bolts (1) with small washers (2). Tighten small bolts (1) with small wrench (11).
- Page 9 Attach crossbars (F,G,H,I) to corresponding post sections (D,E,A,B) as shown above using small bolts (1) with small washers (2). Tighten small bolts (1) with small wrench (11).
- Page 10 Attach crossbars (F,G,H,I) to corresponding post sections (A,B,D,E) as shown above using small bolts (1) with small washers (2). Tighten small bolts (1) with small wrench (11). Ensure that the Manufacturer and Safety Labels are positioned as shown above. P.10...
- Page 11 Insert mattress support bars (O) into the slots of crossbars (F,H). Secure mattress support bars (O) by snapping plastic tab locks (8) into the slots of crossbars (F,H). It may be necessary to apply more pressure to some plastic tab locks than others. Snap plastic links (9) onto mattress support bars (O). P.11...
- Page 12 Insert mattress support bars (O) into the slots of crossbars (G,I). Secure mattress support bars (O) by snapping plastic tab locks (8) into the slots of crossbars (G,I). It may be necessary to apply more pressure to some plastic tab locks than others. Snap plastic links (9) onto mattress support bars (O). P.12...
- Page 13 Attach ladder rungs (M) to ladder rails (L) using medium bolts (5) with washers (6). Tighten medium bolts (5) with wrench (11). P.13...
- Page 14 In this step you will attach guardrail (K) and the ladder to the bunk bed. Attach the top right corner of guardrail (K) to post section (D) using small bolt (1) with small washer (2). Attach the top left corner of the ladder to crossbar (H) using small bolt (1) with small washer (2).
- Page 15 Secure guardrail (J) to the bunk bed using small bolts (1) with small washers (2) at post sections (A,D), and large bolts (4) with large washers (3) at crossbar (F). Tighten all bolts with wrenches (11,12). P.15...
- Page 16 Insert plastic plugs (10) into crossbars (H,I). Option A Final Assembly P.16...
- Page 17 In this step you will attach guardrail (K) and the ladder to the bunk bed. Attach the top left corner of guardrail (K) to post section (A) using small bolt (1) with small washer (2). Attach the top right corner of the ladder to crossbar (H) using small bolt (1) with small washer (2).
- Page 18 Secure guardrail (J) to the bunk bed using small bolts (1) with small washers (2) at post sections (A,D), and large bolts (4) with large washers (3) at crossbar (F). Tighten all bolts with wrenches (11,12). P.18...
- Page 19 Insert plastic plugs (10) into crossbars (H,I). Option B Final Assembly P.19...
- Page 20 P.20...
- Page 21 Detach guardrail (K) and the ladder from the bunk bed by loosening all connecting bolts as shown above. P.21...
- Page 22 Detach guardrail (J) from the bunk bed by loosening all connecting bolts as shown above. P.22...
- Page 23 Loosen and remove the connecting bolts at post sections (A,B,D,E). P.23...
- Page 24 Carefully lift the upper bunk off the lower bunk. Remove post sections (C) from the bed assembly. P.24...
- Page 25 Insert plastic end caps (7) into the open ends of the bed posts. P.25...
- Page 26 Screw bolts (1) into posts (A,D). Insert plastic plugs (10) into both bed frames as shown above. Option C Final Assembly P.26...
