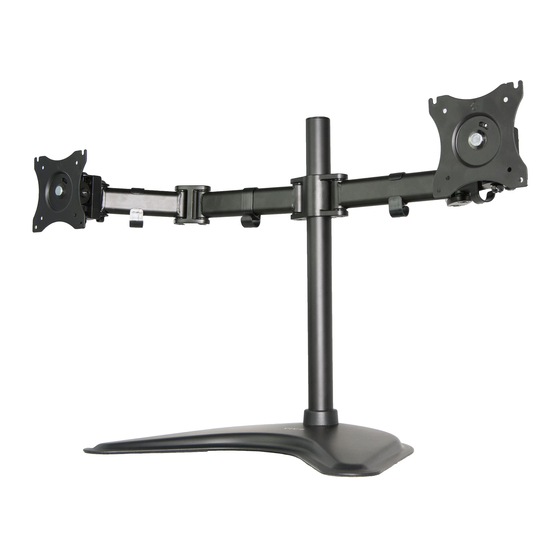

Dual Monitor Desk Stand
Instruction Manual
SKU: STAND-V002P
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002p
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V002P
Summary of Contents for Vivo STAND-V002P
- Page 1 Dual Monitor Desk Stand Instruction Manual SKU: STAND-V002P Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002p GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 17.6 lbs Failure to do so may result in serious injury. (8 kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 Attach the pole cover (D) to the pole (C). STEP 2 Slide the cable management clip (E) and base cover (F) onto the bottom of the pole (C). Loosen the grub screws in the base (A) using the 3mm Allen wrench (G) and screw the pole into the base. - Page 4 STEP 3 If needed, adjust the support collar height using the 3mm Allen wrench (G). STEP 4 Slide the arm (B) onto the top of the pole and tighten using the 5mm Allen wrench (H).
- Page 5 STEP 5 Insert two bolts (M-A or M-B) and washers (M-C) into the top mounting holes of the monitors, making sure to leave 3mm of thread exposed. Align bolts (M-A, M-B) in VESA plates. Secure using two more bolts (M-A or M-B) and washers (M-C) in the bottom two holes of each monitor.
- Page 6 STEP 6 Tighten or loosen the tilt joints using the 6mm Allen wrench (I). STEP 7 Store the Allen wrenches (H, I) in the cable management clip (E) for future adjustments.
- Page 7 STEP 8 Do not move monitors past the center point of gravity. This could result in tipping. STEP 9 If monitor heights are not aligned, turn the screw behind each VESA plate using the 5mm Allen wrench (H). Clockwise will raise the monitor and counter-clockwise will lower the monitor.
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
