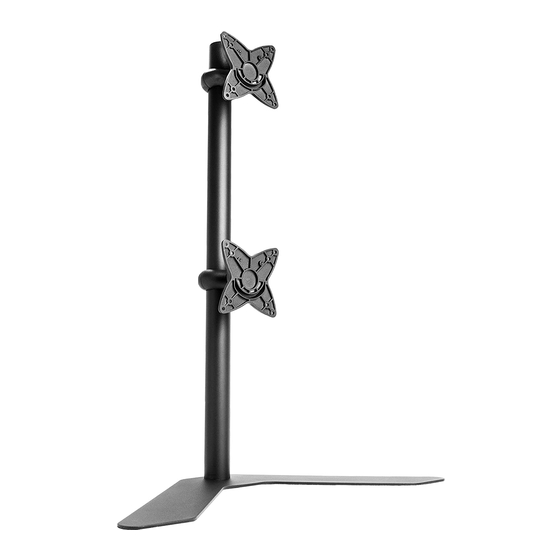

Dual Vertical Monitor Desk Stand
Instruction Manual
SKU: STAND-V002H
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002h
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-V002H
Summary of Contents for Vivo STAND-V002H
- Page 1 Dual Vertical Monitor Desk Stand Instruction Manual SKU: STAND-V002H Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002h GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Attach the pole (C) to the base (D) using the screw (E). Slide the adapter bracket assemblies (A) to desired positions on the pole. Tighten the assemblies firmly using 4mm Allen key (H). Re-attach the plastic cover. - Page 4 STEP 2 Screw the VESA plate (B) onto the display. Tighten all screws (M-A) or (M-B), but do not over-tighten. M-A/M- B...
- Page 5 STEP 3 Carefully lift your display and hook the VESA plate (B) onto the adapter bracket assembly. Repeat for second display.
- Page 6 STEP 3 (Continued) Insert two screws (F) into mounting holes for each adapter bracket. Tighten all screws using 4mm Allen key (H).
- Page 7 STEP 4 Depending on the weight of the display, it may be necessary to make adjustments to the Ball Joint Mechanism. Adjust to the desired position or tilt.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
