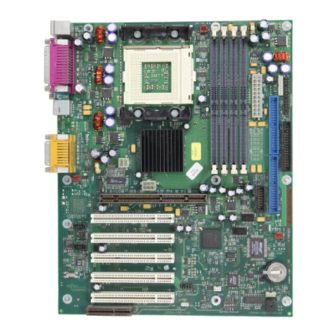

- Page 1 S Y S T E M B A U G R U P P E D 1 1 9 4 S Y S T E M B O A R D D 1 1 9 4 TECHNISCHES HANDBUCH TECHNICAL MANUAL...
- Page 2 Sie haben ..technische Fragen oder Probleme? Wenden Sie sich bitte an: · unsere Hotline: Mo-Fr: 9 - 18 Uhr 9 - 14 Uhr Tel.: ++49 (0) 180 3777 000 · Ihren zuständigen Vertriebspartner · Ihre Verkaufsstelle Weitere Informationen finden Sie im Handbuch "Sicherheit, Garantie und Ergonomie". Aktuelle Informationen zu unseren Produkten, Tipps, Updates usw.
- Page 4 Questo manuale è stato stampato su carta da riciclaggio. Denna handbok är tryckt på recyclingpapper. Dit handboek werd op recycling-papier gedrukt. Herausgegeben von/Published by Fujitsu Siemens Computers GmbH A26361-D1192-Z120-1-7419 Bestell-Nr./Order No.: Printed in the Federal Republic of Germany AG 0401...
- Page 5 Deutsch English Systembaugruppe D1194 System Board D1194 Technisches Handbuch Technical Manual Ausgabe April 2000 April 2000 edition...
- Page 6 Copyright ã Fujitsu Siemens Computers GmbH 2001 Intel, Pentium und Celeron sind eingetragene Warenzeichen und MMX und OverDrive sind Warenzeichen der Intel Corporation, USA. Microsoft, MS, MS-DOS und Windows sind eingetragene Warenzeichen der Microsoft Corporation. PS/2 und OS/2 Warp sind eingetragene Warenzeichen von International Business Machines, Inc.
-
Page 7: Table Of Contents
Recovering System BIOS - switch 2 ..................8 Write protection for floppy disks - switch 3 .................8 Add-on modules ..........................9 Installing and removing processors..................10 Upgrading main memory......................11 Installing network board with WOL................... 13 Replacing the lithium battery....................13 Glossary ............................14 A26361-D1194-Z120-1-7419... -
Page 9: Introduction
Please note the information provided in the "Safety" chapter in the device’s Operating manual. Incorrect replacement of the lithium battery may lead to a risk of explosion. It is therefore essential to observe the instructions in the "Add-on modules" - "Replacing the lithium battery" section. English - 1 A26361-D1194-Z120-1-7419... -
Page 10: Information About Boards
• Remove the power plug from the mains supply before inserting or removing boards containing ESDs. • Always hold boards with ESDs by their edges. • Never touch pins or conductors on boards fitted with ESDs. 2 - English A26361-D1194-Z120-1-7419... -
Page 11: Features
5 PCI slots PCI slots support 3.3 V main and auxiliary voltages. • 1 AGP slot AGP slot supports AGP and 4x AGP modes. The AGP slot supports 1.5 V AGP boards only. • 1 CNR slot English - 3 A26361-D1194-Z120-1-7419... - Page 12 1 external parallel port (ECP- and EPP-compatible) • 1 external serial port (16C550 compatible with FIFO) • 1 internal WOL interface • 2 external PS/2 ports for keyboard and mouse • 2 external USB ports • Real-time clock/calendar with integrated battery backup 4 - English A26361-D1194-Z120-1-7419...
-
Page 13: Interfaces And Connectors
8b = Audio Line-In 4 = Serial port 1 8c = Audio Micro-In 5 = USB port 2 6 = USB port 1 The components and connectors marked are not necessarily present on the system board. English - 5 A26361-D1194-Z120-1-7419... - Page 14 4 = Floppy disk drive 11 = Fan 1 (for the processor) 5 = IDE drives 1 and 2 (primary) 6 = Wake On LAN (WOL) The components and connectors marked are not necessarily present on the system board. 6 - English A26361-D1194-Z120-1-7419...
-
Page 15: Hard Disk Connection
D, A, B, C PCI bus slot 3 A, B, C, D PCI bus slot 4 B, C, D, A PCI bus slot 5 A, B AGP slot USB controller LAN controller Graphics processor SMBus AC'97 Audio English - 7 A26361-D1194-Z120-1-7419... -
Page 16: Settings With Switches And Jumpers
BIOS Setup must be disabled (in menu Security, the field Diskette Write must be set to Enabled). The floppy disk drive is write-protected. Floppy disks can be read, written and deleted (default setting). 8 - English A26361-D1194-Z120-1-7419... -
Page 17: Add-On Modules
8 = PCI slots 1, 2, 3, 4, 5 4 = Location bank 0 for main memory 9 = AGP slot 5 = Location bank 1 for main memory PCI slots support 3.3 V / 5 V main voltage and 3.3 V auxiliary voltage. English - 9 A26361-D1194-Z120-1-7419... -
Page 18: Installing And Removing Processors
Apply the heat transfer compound evenly on the underside of the heat sink (approx. 0.5 mm). Ê Fit the heat sink on the new processor. Ê Tilt the retainers downwards and press in the direction of the arrow (5). 10 - English A26361-D1194-Z120-1-7419... -
Page 19: Upgrading Main Memory
You should not mix memory modules that have different speed classes. Optimal system speed is achieved when you use PC800 RDRAM memory modules. Slot Occupation 1 Occupation 2 RIMM1 RIMM RIMM RIMM2 C-RIMM RIMM RIMM3 RIMM RIMM RIMM4 C-RIMM RIMM English - 11 A26361-D1194-Z120-1-7419... - Page 20 At the same time flip the lateral holders upwards until the memory module snaps in place (2). Removing a memory module Ê Push the clips on the right and left of the compartment outward (1). Ê Carefully remove the memory module from the compartment (2). 12 - English A26361-D1194-Z120-1-7419...
-
Page 21: Installing Network Board With Wol
Brukte batterier kasseres i henhold til fabrikantens instruksjoner. Ê Lift the contact (1) a few millimetres and remove the lithium battery from its socket (2). Ê Insert a new lithium battery of the same type into the socket (3). English - 13 A26361-D1194-Z120-1-7419... -
Page 22: Glossary
Super Video Graphic Adapter GMCH Graphics and Memory Controller Universal Serial Bus Graphics Performance Video Graphic Adapter Accelerator Inter Integrated Circuit Wake On LAN IAPC Instantly Available Power Managed Desktop PC Design I/O Controller Hub Intelligent Drive Electronics 14 - English A26361-D1194-Z120-1-7419...
