Summary of Contents for Fujitsu Siemens Computers D1447

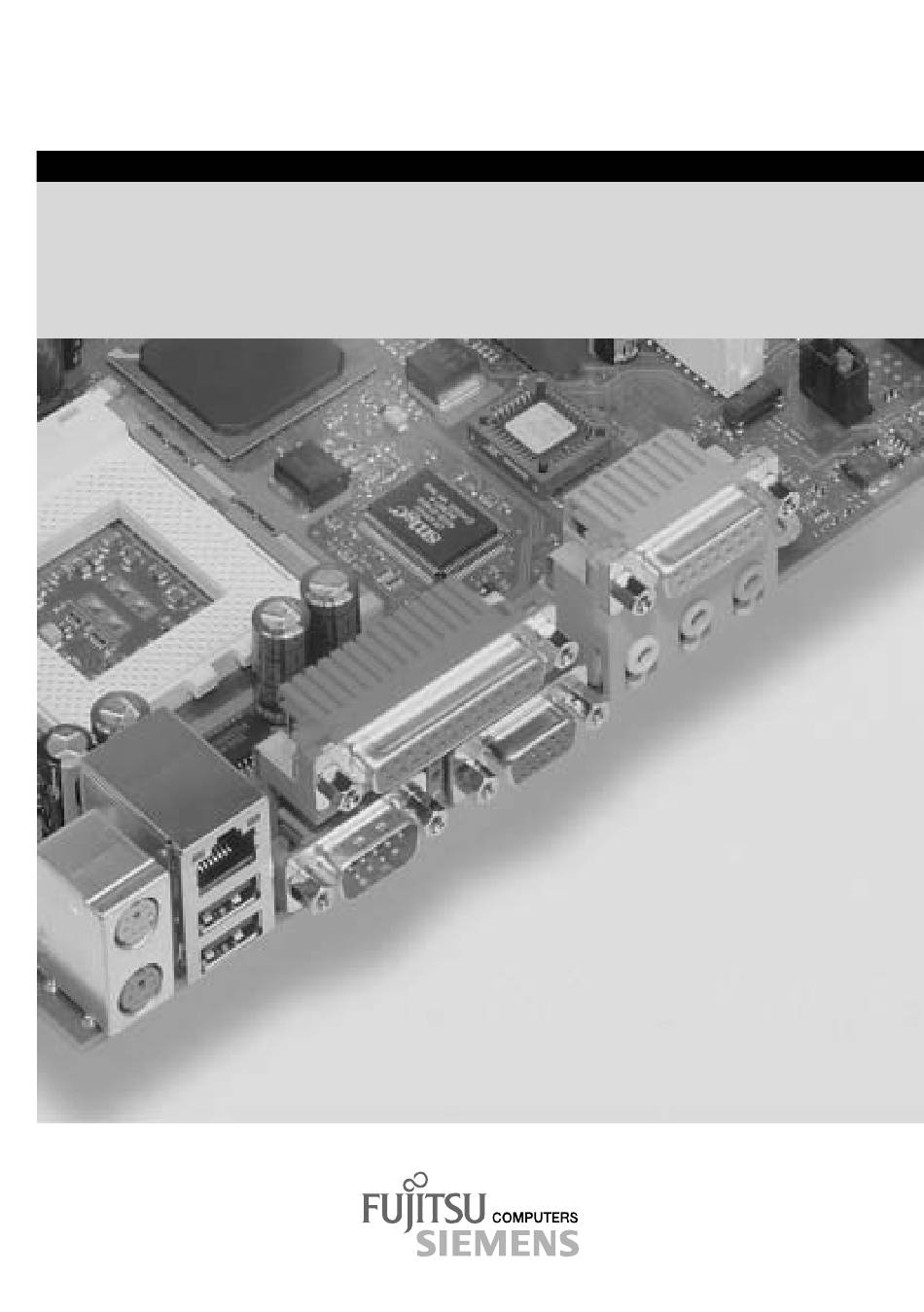

  • Page 1 COMPONENTS Technisches Handbuch / Technical Manual Mainboard D1447...
  • Page 2 Sie haben ..technische Fragen oder Probleme? Wenden Sie sich bitte an: · Ihren zuständigen Vertriebspartner · Ihre Verkaufsstelle Weitere Informationen finden Sie in den Handbüchern "Sicherheit" und "Ergonomie". Aktuelle Informationen zu unseren Produkten, Tipps, Updates usw. finden Sie im Internet: http://www.fujitsu-siemens.com Are there ...
  • Page 4 Questo manuale è stato stampato su carta da riciclaggio. Denna handbok är tryckt på recyclingpapper. Dit handboek werd op recycling-papier gedrukt. Herausgegeben von/Published by Fujitsu Siemens Computers GmbH A26361-D1447-Z120-1-7419 Bestell-Nr./Order No.: Printed in the Federal Republic of Germany AG 0602...
  • Page 5 Deutsch English Mainboard D1447 Technisches Handbuch Technical Manual Ausgabe Juni 2002 June 2002 edition...
  • Page 6 Alle weiteren genannten Warenzeichen sind Warenzeichen oder eingetragene Warenzeichen der jeweiligen Inhaber und werden als geschützt anerkannt. Copyright ã Fujitsu Siemens Computers GmbH 2002 Alle Rechte vorbehalten, insbesondere (auch auszugsweise) die der Übersetzung, des Nachdrucks, der Wiedergabe durch Kopieren oder ähnliche Verfahren.
  • Page 7: Table Of Contents

    Internal ports and connectors ....................7 Temperature / System monitoring....................8 Hard disk connection .........................9 LAN connector...........................9 PCI bus interrupts ........................10 Settings with switches and jumpers ....................10 Add-on modules ..........................11 Installing and removing processors..................12 Upgrading main memory......................13 Replacing the lithium battery....................14 Glossary ............................15 A26361-D1447-Z120-1-7419...
  • Page 9: Introduction

    Text in this typeface indicates screen outputs. Text in this bold typeface indicates the entries you make via the keyboard. Text in italics indicates commands or menu items. "Quotation marks" indicate names of chapters or terms. English - 1 A26361-D1447-Z120-1-7419...
  • Page 10: Important Notes

    EMI spring contacts. Be especially careful with the locking mechanisms (catches, centring pins etc.) when you replace the mainboard or components on it, for example memory modules or processors. 2 - English A26361-D1447-Z120-1-7419...
  • Page 11 · Remove the power plug from the mains supply before inserting or removing boards containing ESDs. · Always hold boards with ESDs by their edges. · Never touch pins or conductors on boards fitted with ESDs. English - 3 A26361-D1447-Z120-1-7419...
  • Page 12: Features

    2 DIMM slots for 128 MB up to 2 GB main memory (DDR-DIMM memory modules meet the PC2100 specification) with and without ECC · Flash BIOS · Fujitsu Siemens Computers system monitoring and temperature monitoring · Power-on functions: Wake on RTC Wake on LAN (via PCI bus or LAN onboard)
  • Page 13 1 external parallel port (ECP- and EPP-compatible) · 2 external serial ports (16C550 compatible with FIFO) · 2 external PS/2 ports for keyboard and mouse · 4 external USB ports (A / B and C / D) English - 5 A26361-D1447-Z120-1-7419...
  • Page 14: External Ports

    3 = Serial port 1 8a = Audio Line-In 4 = Parallel port 8b = Audio Head Out 5 = Serial port 2 8c = Audio Micro-In The components and connectors marked are not necessarily present on the mainboard. 6 - English A26361-D1447-Z120-1-7419...
  • Page 15: Internal Ports And Connectors

    17 = Fan 1 (e.g. for the processor) 8 = USB ports E / F 9 = Cover monitoring 10 = SMBus (Case Temperature) The components and connectors marked are not necessarily present on the mainboard. English - 7 A26361-D1447-Z120-1-7419...
  • Page 16: Temperature / System Monitoring

    In addition, any unnecessary noise is also prevented by reducing the fan speed, and information is provided about the system status. Cover monitoring protects the system from unauthorised opening. An onboard controller developed by Fujitsu Siemens Computers controls the temperature and system monitoring. The following functions are supported: Temperature monitoring: Measurement of the processor and the system temperature with an onboard temperature sensor.
  • Page 17: Hard Disk Connection

    The LAN RJ45 connector is equipped with a yellow and a green LED (light emitting diode). 1 = a connection exists (e.g. to a hub). 2 = Link Mode: the LAN connection is active. WOL mode: a Magic Packet is being received. English - 9 A26361-D1447-Z120-1-7419...
  • Page 18: Pci Bus Interrupts

    BIOS you need a Flash BIOS Diskette (please call our customer service centre). The System BIOS executes from floppy drive A: and the inserted "Flash-BIOS- Diskette" restores the System BIOS on the mainboard. Normal operation (default setting). 10 - English A26361-D1447-Z120-1-7419...
  • Page 19: Add-On Modules

    5 = CNR slot (only AC97 support) 2 = Location bank 1 for main memory 6 = PCI slots 1, 2, 3, 4, 5, 6 3 = Location bank 2 for main memory 7 = AGP slot 4 = Lithium battery English - 11 A26361-D1447-Z120-1-7419...
  • Page 20: Installing And Removing Processors

    The angled corner of the processor may be covered by the heat sink. In this case let yourself be guided by the marking in the rows of pins on the underside of the processor. Ê Push the lever back down until it clicks into place (5). 12 - English A26361-D1447-Z120-1-7419...
  • Page 21: Upgrading Main Memory

    At the same time flip the lateral holders upwards until the memory module snaps in place (2). Removing a memory module Ê Push the clips on the right and left of the compartment outward (1). Ê Carefully remove the memory module from the compartment (2). English - 13 A26361-D1447-Z120-1-7419...
  • Page 22: Replacing The Lithium Battery

    The following graphic representation is also valid if the lithium battery is built-in vertically. Ê Lift the contact (1) a few millimetres and remove the battery from its socket (2). Ê Insert a new lithium battery of the same type into the socket (3). 14 - English A26361-D1447-Z120-1-7419...
  • Page 23: Glossary

    Universal Serial Bus GMCH Graphics and Memory Controller Video Graphic Adapter Graphics Performance Wake On LAN Accelerator Inter Integrated Circuit IAPC Instantly Available Power Managed Desktop PC Design I/O Controller Hub Intelligent Drive Electronics IPSEC Internet Protocol Security English - 15 A26361-D1447-Z120-1-7419...
