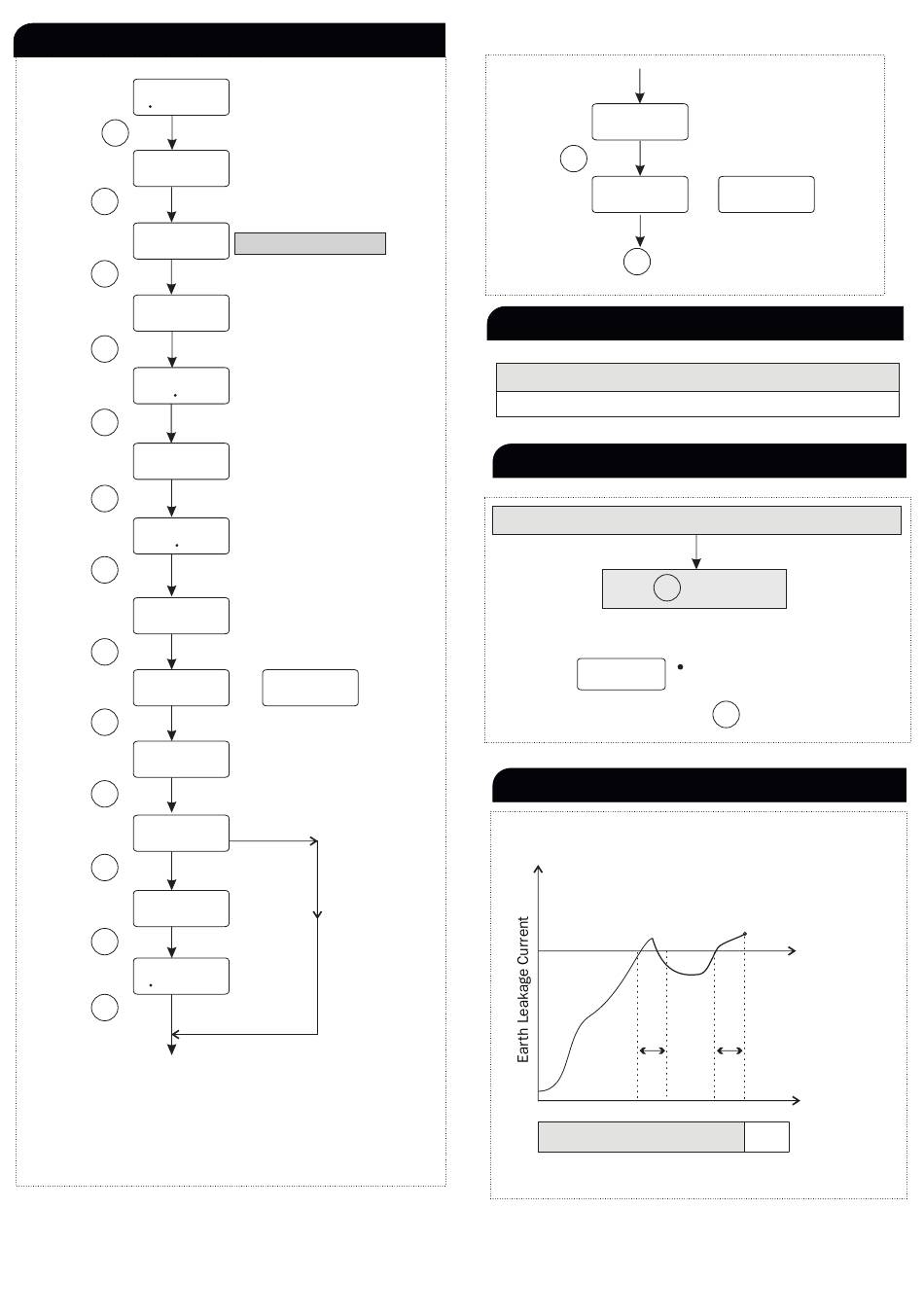

PARAMETER SETTING
0 0 3 0
RST
Press 3 Sec key
p a s s
Press key
RST
0 1 2 3
Press key
RST
s e t
Press key
RST
0 3 0 0
Press key
RST
d e L y
Press key
RST
0 1 0 0
Press key
RST
r f m
Press key
RST
O N
Press key
RST
M O D E
Press key
RST
A U T o
Press key
RST
H Y S
Press key
RST
0 0 1 0
Press key
RST
To be continued
mA (Actual Value of Earth
Leakage Current)
Password
Enter password "123"
Set leakage current
0.030A to 30.00Amp
Delay time
00.00 to 09.99 sec
Relay Fault mode
/
O F F
ON/OFF
Reset Mode
Auto /Manual
If Manual
Reset Selected
Hysteresis
00.00 to
29.99 Amp
P A S S
Press key
RST
E N B
RST
Press key for 3 sec to
save parameter & exit.
LED STATUS INDICATION
1) Relay LED
Control Output Indication (ON/OFF)
TEST MODE
To Enter In Test Mode
Press
TST
- Display Shows
T E S T
- To exit from test mode, Press
TRIP FUNCTION
Relay Fault mode = ON
Delay
Time
RLY-OFF
Password enable/ disable
/
Enable /
D I S
Disable
Key for 5 sec
Relay on
R
RST
key for 1 sec.
Tripping Setting
Set Point
Delay
Time
Time
TRIP
