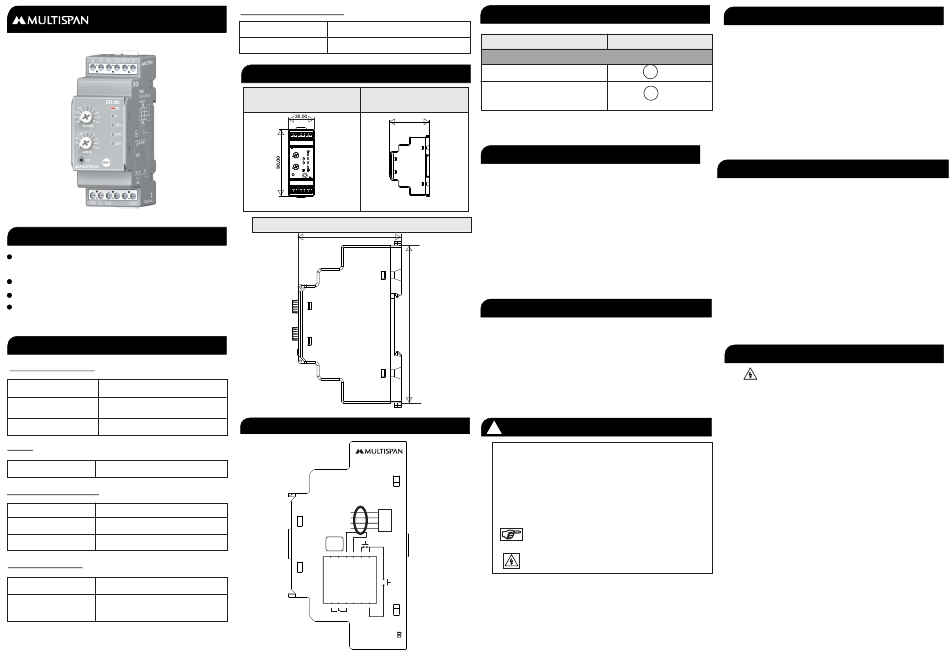

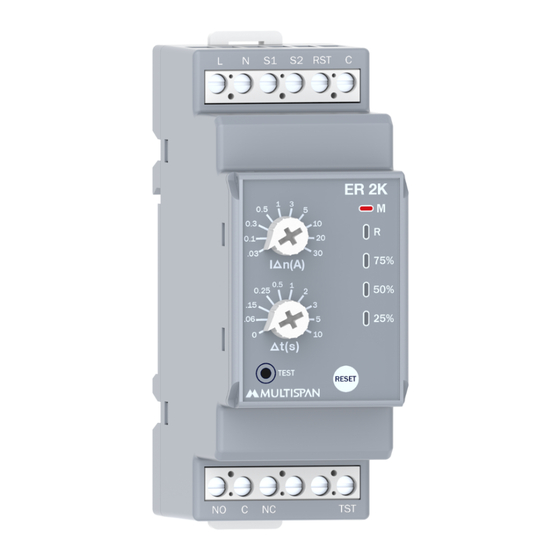

MULTISPAN ER 2K Manual

Earth Leakage Relay
FEATURE
Earth Leakage Current Monitoring In 1Ø - 2W, 3Ø-3W
And 3Ø-4W System
Test Mode Available.
Manual Triping Reset Facility.
Test/Trip Reset Via Front Key / Remote
TECNICAL SPECIFICATION
INPUT SPECIFICATION :
Input Current
30mA To 30A AC From CBCT
Set Currant Range 0.03A To 30Amp
0 to 10 Second
Trip Delay Time
KEYS :
Keys Test , Rst
OUTPUT SPECIFICATION :
Relay 1 Nos.
Relay Type
NO - C - NC
5A,230V AC Resistive Load
Rating
AUXILIARY SUPPLY :
Supply Voltage
100 To 270 V AC
Power Consumption
2VA @ 230 VAC MAX
(VA Rating)
ENVIRONMENT CONDITION :
ER 2K
Operating Temp.
0 - 55°C
Relative Humidity
95% RH
MECHANICAL DIMENSION
Front View(mm)
SIDE VIEW
59
TERMINAL CONNECTION
ER-2K
Range
30mA To 30Amp AC
CORE BALANCE CT
L1
L2
L3
N
~
100
270V AC
50/60 Hz
L N S1 S2 RST C
1 2 3 4 5 6
7 8 9 10 11 12
NO C NC TST
RELAY 1
Made in India
FUNCTION
To Enter in Test Mode
To Reset the Relay Contact
Side View(mm) Manually After Tripping
61.5
NOTE :
To Configure fault type 'NO' or 'NC'
1) Press reset key then power on instrument , Reset key
pressed continuously up to 5 Second.
2) If front relay indication is ' ON 'Means relay is 'NC' in healthy
condition.
3) One can change by pressing 'TEST' key , If front relay
indication is 'OFF' means relay is 'NO' in healthy condition.
4) Then Power OFF Instrument save the parameter.
90
1) The equipment should be cleaned regularly to avoid
blockage of ventilating parts.
2) Clean the equipment with a clean soft cloth. Do not use
isopropyl alcohol or any other cleaning agent.
3) Fusible resistor must not be replaced by operator.
SAFETY PRECAUTION
!
All safety related codifications, symbols and instructions
that appear in this operating manual or on the equipment
must be strictly followed to ensure the safety of the operating
personnel as well as the instrument.
If all the equipment is not handled in a manner specified
by the manufacturer, it might impair the protection provided
by the equipment.
TO
LOAD
Read complete instructions prior to installation
and operation of the unit.
WARNING : Risk of electric shock.
KEY OPERATION
1) Do not allow pieces of metal, wire clippings, or fine
KEY PRESS
metallic fillings from installation to enter the product or
else it may lead to a safety hazard that may in turn
OPERATION MODE
endanger life or cause electrical shock to the operator.
TST
For 5 sec
2) Circuit breaker or mains switch must be installed
between power source and supply terminal to facilitate
RST
For 1 sec
power 'ON' or 'OFF' function. However this mains switch
or circuit breaker must be installed at convenient place
normally accessible to the operator.
3) Use and store the instrument within the specified ambient
temperature and humidity ranges as mentioned in this
manual.
1) To install the instrument on a DIN rail, raise the clamp at the
back of the instrument and place it on the rail. Now release
the clamp, so the instrument fits on the DIN rail.
2) Ensure proper fitting of the instrument by pulling it outwards.
3) To remove the instrument raise the clamp to release it from
the DIN rail.
4) The equipment in its installed state must not come in
close proximity to any heating source, caustic vapors, oil
steam, or other unwanted process byproducts.
5) Do not connect anything to unused terminals.
MAINTENANCE
1) To prevent the risk of electric shock, power supply to the
equipment must be kept OFF while doing the wiring
arrangement. Do not touch the terminals while power is
being supplied.
2) To reduce electro magnetic interference, use wire with
adequate rating and twists of the same of equal size shall
be made with shortest connection.
3. Cable used for connection to power source, must have a
cross section of 1mm or greater. These wires should have
insulations capacity made of at least 1.5kV.
4) A better anti-noise effect can be expected by using
standard power supply cable for the instrument.
INSTALLATION GUIDELINES
MECHANICAL INSTALLATION
WARNING GUIDELINES
WARNING : Risk of electric shock.
Page -1
