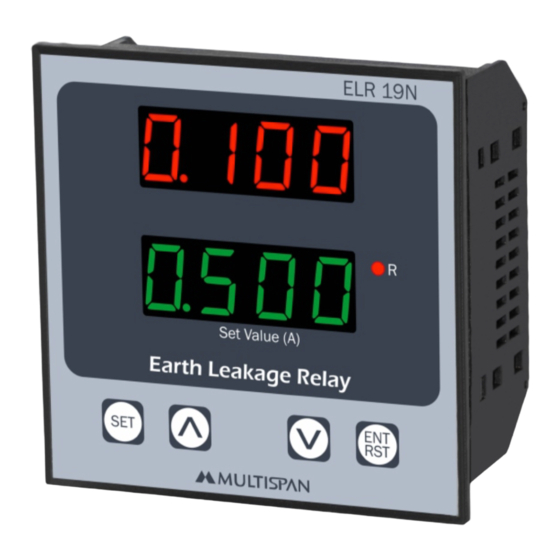

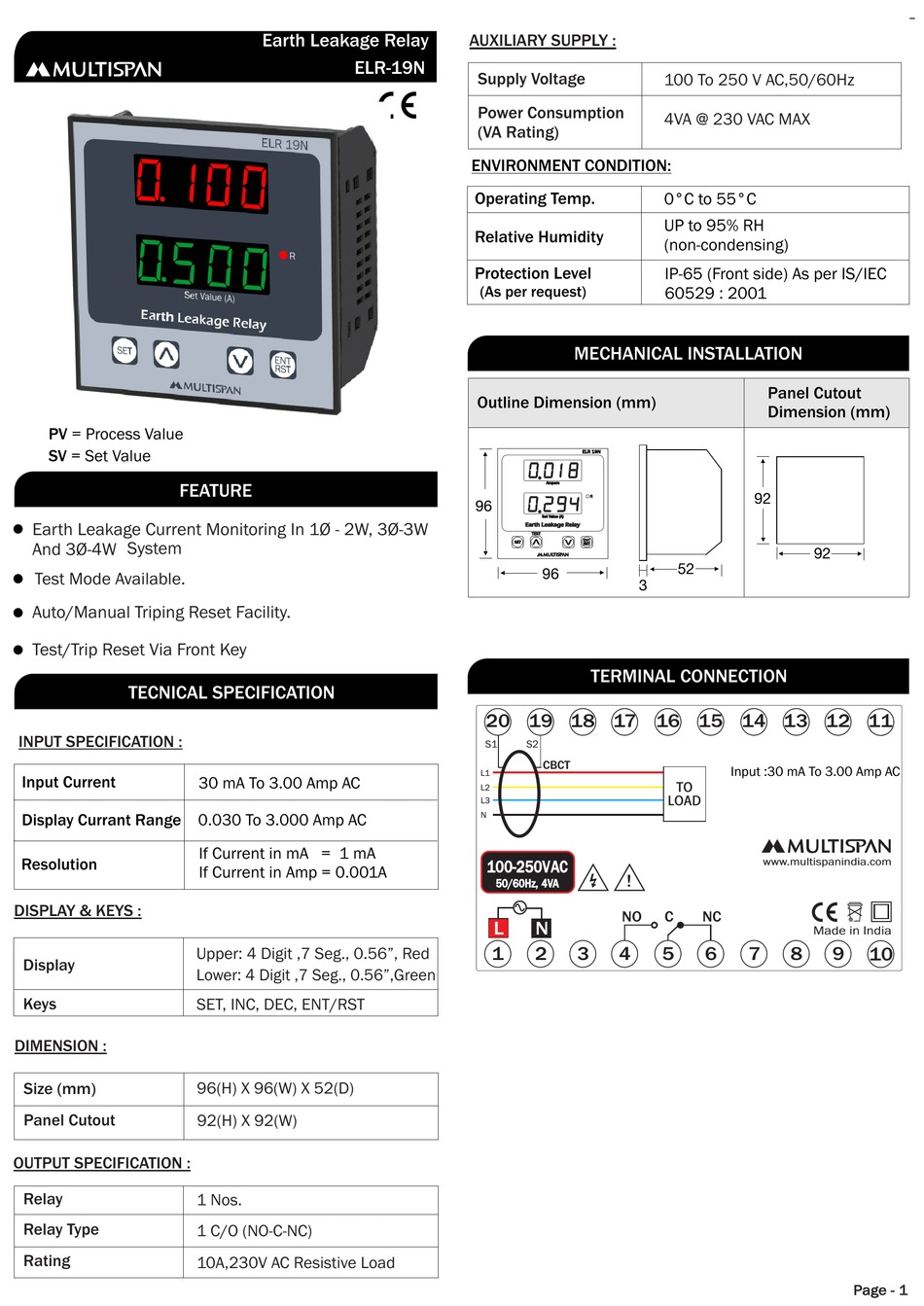

MULTISPAN ELR-19N Quick Start Manual

PV = Process Value
SV = Set Value
FEATURE
Earth Leakage Current Monitoring In 1Ø - 2W, 3Ø-3W
And 3Ø-4W System
Test Mode Available.
Auto/Manual Triping Reset Facility.
Test/Trip Reset Via Front Key
TECNICAL SPECIFICATION
INPUT SPECIFICATION :
Input Current
Display Currant Range
Resolution
DISPLAY & KEYS :
Display
Keys
DIMENSION :
Size (mm)
Panel Cutout
OUTPUT SPECIFICATION :
Relay
Relay Type
Rating
Earth Leakage Relay
ELR-19N
30 mA To 3.00 Amp AC
0.030 To 3.000 Amp AC
If Current in mA = 1 mA
If Current in Amp = 0.001A
Upper: 4 Digit ,7 Seg., 0.56", Red
Lower: 4 Digit ,7 Seg., 0.56",Green
SET, INC, DEC, ENT/RST
96(H) X 96(W) X 52(D)
92(H) X 92(W)
1 Nos.
1 C/O (NO-C-NC)
10A,230V AC Resistive Load
AUXILIARY SUPPLY :
Supply Voltage
Power Consumption
(VA Rating)
ENVIRONMENT CONDITION:
Operating Temp.
Relative Humidity
Protection Level
(As per request)
MECHANICAL INSTALLATION
Outline Dimension (mm)
ELR 19N
0 0 1 8
Ampere
R
0 2 9 4
96
Set Value (A)
Earth Leakage Relay
TEST
ENT
SET
RST
96
3
TERMINAL CONNECTION
20 19 18 17
S1 S2
CBCT
L1
L2
L3
N
100-250V AC
!
50/60Hz, 4VA
NO
N
L
1 2 3 4
100 To 250 V AC,50/60Hz
4VA @ 230 VAC MAX
0°C to 55°C
UP to 95% RH
(non-condensing)
IP-65 (Front side) As per IS/IEC
60529 : 2001
Panel Cutout
Dimension (mm)
92
92
52
16 15 14 13 12
Input :30 mA To 3.00 Amp AC
TO
LOAD
www.multispanindia.com
C NC
Made in India
5
6 7 8
11
9 10
Page - 1
