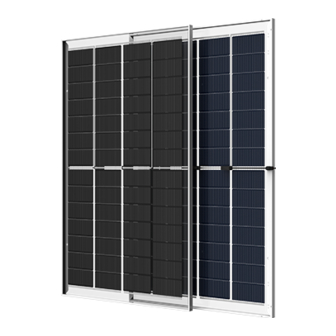

- Page 1 INSTALLATION MANUAL IEC Version NEG9M4C.26 Series SCREW &CLAMP NEG9M5C.26 Series...
-
Page 2: Table Of Contents
CONTENT DISCLAIMER OF LIABILITY ......................- 3 - SAFETY PRECAUTIONS ........................- 3 - UNPACKING AND TRANSPORTATION ，STORAGE ..............- 5 - PRODUCT IDENTIFICATION ......................- 7 - ENVIRONMENTAL CONDITIONS AND SITE SELECTION ............... - 7 - CLIMATE CONDITION ......................- 7 - SITE SELECTION ........................ -
Page 3: Disclaimer Of Liability
Trina Solar assumes no responsibility for any infringement of patents or other rights of third parties that may result from use of the module. No license is granted by implication or under any patent or patent rights. - Page 4 Male type UTXCMA4AI, AMPHENOL AMPHENOL 1000V UTXCMA4AC or TECHNOLOGY 1500V UTXCMA4AM, Female (SHENZHEN) type UTXCFA4AI, CO LTD UTXCFA4AC, UTXCFA4AM TS4, TS4 Plus TRINA SOLAR TS4 Plus 1000V TS4, CO.,LTD 1500V PV-KST4/6II-UR (male), STAUBLI 1000V PV-KBT4/6II-UR (female) ELECTRICAL 1500V CONNECTORS ESSEN GMBH...
-
Page 5: Unpacking And Transportation Storage
30 metres, and to increase the fire separation distance if necessary. 29. If the modules are to be installed near flammable and explosive locations (e.g. oil and gas stations, combustible dust areas, chemical storage areas, etc.), it is necessary to consult Trina Solar's sales and technical service team in advance. - Page 6 3) Place the stand supporter that is higher or wider than the module in order to avoid hitting and damaging the glass. 4) Cut off all the horizontal packing belts; when there are 1 or 2 vertical packing belts remaining, push the module gently to tilt toward the stand supporter 5) Cut off the remaining packing belts.
-
Page 7: Product Identification
SITE SELECTION In most applications, Trina Solar PV modules should be installed in a location where they will receive maximum sunlight throughout the year. Modules should not be shaded by buildings, trees, chimney, etc. at any time of the day. -
Page 8: Mounting Instructions
Interspaces, the clearance between the module edge and surface of the wall or roof, of at least 115mm is required to prevent wiring damage and to allow air to circulate behind the module. MOUNTING INSTRUCTIONS The module is considered to be in compliance with IEC only when the module is mounted in the manner specified by the mounting instructions below. -
Page 9: Mounting Methods
The frame of each module has 4-φ9*14mm mounting holes, ideally placed to optimize the load handling capability, to secure the modules to supporting structure. To maximize mounting longevity, Trina Solar strongly recommends the use of corrosion proof (stainless steel) fixings ... -
Page 10: Mounting With Clamps
6.2.2. Mounting with Clamps Trina Solar has tested its modules with a number of clamps from different manufacturers, it is recommended to use fixing bolt of at least M8. The clamp shall not be malfunctioned due to deformation or corrosion during the loading process. It is recommended to use a clamp with length of ≥50 mm (1.97 inch) and thickness of ≥4 mm (0.16 inch), aluminum alloy... - Page 11 The module frame is not to be modified under any circumstances. When choosing this type of clamp-mounting method, use at least four clamps on each module, two clamps should be attached on each long sides of the module (for portrait orientation). Depending on local wind and snow loads, additional clamps may be required to ensure that modules can bear the load.
-
Page 12: Grounding
National Electrical Codes. The grounding conductor must then make a connection to earth using a suitable earth ground electrode. Trina Solar modules can be installed with the use of third party listed grounding devices for grounding the metallic frames of PV modules. The devices have to be installed in accordance with the grounding device manufacturer’s specified instructions. - Page 13 We also recommend using the following methods to ground installation properly under IEC investigation, Method 1: Tyco grounding bolt # 2058729-1: Figure 3. Tyco grounding bolt # 2058729-1 1) Wire bolt and slot 2) Mounting wash hex nut 3) Aluminum frame...
-
Page 14: Module Wiring
The wire binding bolt should be tightened to the proper torque of 45lbf.in. The Tyco grounding bolt is only listed for use with 6 to 12 AWG bare solid copper wire. Method 3: ERICO grounding bolt # EL6CS14-6 Figure 5. -
Page 15: Module Tilt Angle
The tilt angle of the PV module refers to the angle between the module and the horizontal ground. The tilt angle shall be selected according to the local conditions for different projects. Trina Solar recommends that the mounting tilt angle should not be less than 10°. For specific tilt angles, it shall be chosen in accordance with the local design procedures, specifications and regulations, or following the recommendations of the experienced PV module installers. -
Page 16: Maintenance And Care
Trina Solar is a member of the European PV Cycle Association. Through the pre-financed PV Cycle program, Trina Solar PV modules will be taken back and treated in an environmentally sustainable manner.*Applicable only to participating countries within the Europe Union. -
Page 17: History
12. HISTORY Edition Revision Date Revised Item Revised Content Installation Manual of Module_210 New Edition 2024.03.20 Series(280W/320W) Appendix I: Electrical and mechanical properties All electrical data shall be shown as relative to standard test conditions (1000W/m , (25 ± 2) ° C, AM 1.5 Torolance Mono Pmax 3% Isc 5% Voc...
