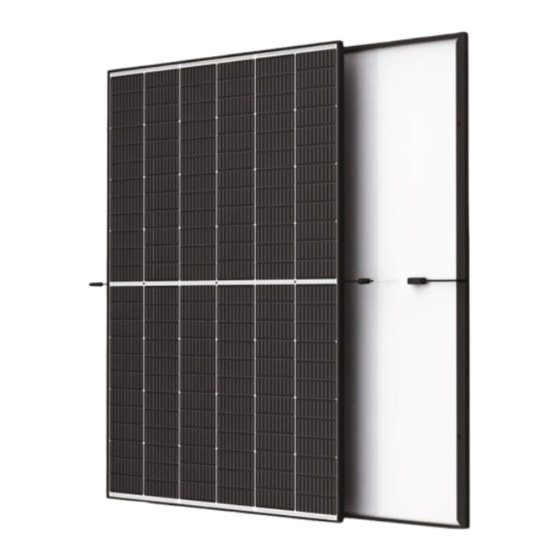

Summary of Contents for Trina Solar Vertex S+ DE09R.B0 Series
- Page 2 Please refer to the official User Manual for the requirements of installation and the relevant exemption clauses. Contents of this document are subject to change without notice. www.trinasolar.com. For the latest document please refer to Trina Solar official website: UM-M-0010 / Ver. B Copyright © June, 2024. Solar Co., Ltd.
- Page 3 Chapter 1 : Clamp requirements for test load The testing load in following chapters are based on the test with clamp A, clamp B, and clamp C. The description and schematic diagram of the clamps are provided below. Clamp A : A-surface matching clamp 50 mm (1.97 inch) length with thickness ≥4 mm;...
- Page 4 Trina Solar | Additional Installation User Manual Table 1: Maximum mechanical test loads and clamping ranges for option 1 Clamp A: Maximum Test Load Maximum Test Load Clamping range Product Code (Front side +) (Back side -) DE09R.B0 / DE09R.B5 / DE09R.B8...
- Page 5 Table 2: Maximum mechanical test loads and clamping ranges for Long side clamping with 4 clamps. Clamp A: Clamping Range A-B (mm) Product Code 100-200 200-290 290-370 370-550 Maximum Test Load (Front side +/ Back side -) DE09R.B0/DE09R.B5/DE09R.B8 +2400/-2000 Pa +3600/-3000 Pa +3000/-2400 Pa +2400/-2000 Pa...
- Page 6 Trina Solar | Additional Installation User Manual Table 3: Maximum mechanical test loads and clamping ranges for Long side clamping with 6 clamps. Clamp A: Clamping Range A-B, C (mm) A-B = 0-200 A-B = 200-380 A-B = 380-550 Product Code...
- Page 7 DE09R.B0/DE09R.B5/DE09R.B8 250-330 DE09R/DE09R.05/DE09R.08 A=100-300 NEG9R.28/NEG9R.20/NEG9R.25 A=300-350 NEG9RC.27/NEG9RC.20 A=350-600 Clamp B: Clamping range(mm) Maximum Test Load Maximum Test Load Product Code (Front side +) (Back side -) NEG9R.28/NEG9R.20/NEG9R.25 +5400Pa -4000Pa NEG9RC.27/NEG9RC.20 DEG19RC.20 / NEG19RC.20 +5400Pa -2400Pa +3200Pa -2400Pa DE09R DE09R.05 +6000Pa -4000Pa DE09R.08 +3000Pa...
- Page 8 Trina Solar | Additional Installation User Manual Long side clamping with 3 crossbeams Graphic view Description Positions of 3 crossbeams, 6 screws and 6 clamps (check Structure column in Table 5 for details) are consistent with the positions of the indicated 6 bolt holes on the original module.
- Page 9 Legend Module clamp which has to fulfill Trina’s minimum requirements in terms of grip length and grip depth. Table 6: Maximum mechanical test loads and clamping ranges for Option 4. Clamp B: Maximum Test Load Maximum Test Load Clamping range Product Code (Front side +) (Back side -)
- Page 10 Trina Solar | Additional Installation User Manual Clamp C: Maximum Test Load Maximum Test Load Product Code Clamping range (A) (Front side +) (Back side -) NEG9R.28/NEG9R.20/NEG9R.25 +2800Pa -1600Pa 0-100mm NEG9RC.27/NEG9RC.20 DEG19RC.20/NEG19RC.20 +2400Pa -700Pa 0-100mm Option 6: Clamping on the short side with shared rail underneath...
- Page 11 Table 9: Maximum mechanical test loads and clamping ranges for Option 7. Clamp A: Maximum Test Load Maximum Test Load Clamping range Product Code (Front side +) (Back side -) A, B (mm) A=250-450 DE09R.B0/DE09R.B5/DE09R.B8 +2400Pa -1800Pa DE09R/DE09R.05/DE09R.08 B =250 A=250-450 NEG9R.28/NEG9R.20/NEG9R.25 +2400Pa...
- Page 12 Trina Solar | Additional Installation User Manual Option 9: Long side clamping on Japan Typical shell roof The following installation conditions and loads are only applied to tyhpical shell roof in Japan. The pitch distance is 500mm as shown in figure 4.
- Page 13 (2) Long side clamping with 6 clamps Graphic view Description Clamp position can be within the range (clamping range refers to Table 12) for all 6 clamps attached to the module long side. Table 12: Maximum mechanical test loads for Option 9 with 6 clamps Clamp B: Maximum Test Load Maximum Test Load...
- Page 14 Trina Solar Co., Ltd. 2 Tianhe Road, Tianhe Photovoltaic Industrial Park, Xinbei District Changzhou City, Jiangsu Province, China. 400 689 0000 The Right Of Final Interpretation Belongs To Trina Solar...
