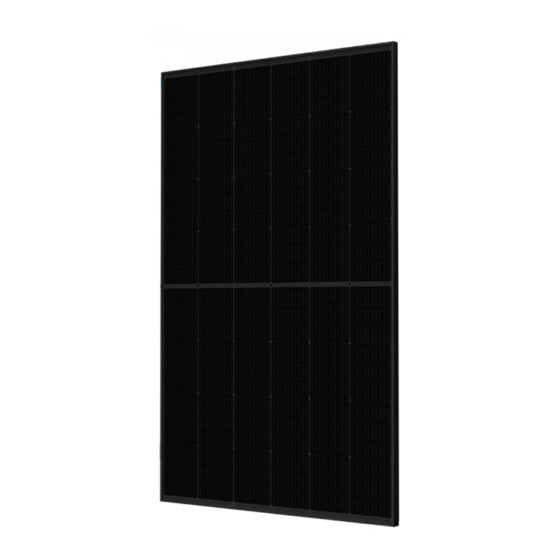

Trina Solar VERTEX Series User Manual
  1. Manuals
  2. Brands
  3. Trina Solar Manuals
  4. Solar panel
  5. VERTEX Series
  6. User manual

Trina Solar VERTEX Series User Manual

Hide thumbs Also See for VERTEX Series:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VERTEX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trina Solar VERTEX Series

Summary of Contents for Trina Solar VERTEX Series

  • Page 2 APPLICABLE MODULE TYPE Module type Module code DE09 DE09.05 DE09.08 DE09C.05 DE09C.07 DE09R DE09R.05 DE09R.08 DE18M(II) DE18M.08(II) DE19 DE19R Single glass products DE20 DE21 DE09.05W DE09.08W DE09R.W DE09R.05W DE09R.08W DE18M.W(II) DE18M.08W(II) DE19.W DE19R.W DE20.W DE21.W...
  • Page 3 NEG21C.20 DEG9R.20W DEG9R.28W DEG9RC.27W DEG18MC.20W(II) DEG19C.20W DEG19RC.20W DEG20C.20W DEG21C.20W Contents of this document are subject to change without notice. For the latest document please refer to Trina Solar official website: www.trinasolar.com. UM-M-0002/Ver.H Copyright © December, 2022. Trina Solar Co., Ltd.

  • Page 4: Table Of Contents

    Table of Contents INTRODUCTION ........................1 SAFETY PRECAUTIONS ....................... 1 SITE SELECTION AND ANGLE ...................... 3 UNLOAD/TRANSPORTATION/STORAGE ..................4 UNPACKING INTRODUCTION ..................... 9 UNPACKING SAFETY........................9 UNPACKING STEPS ........................11 INSTALLATION ........................13 INSTALLATION SAFETY ......................... 13 INSTALLATION METHOD ......................15 6.2.1 SCREW INSTALLATION ........................15 6.2.2...

  • Page 6: Introduction

    The installer must inform the end customers (or consumers) of the above matters accordingly. The term "Module" or "PV Module" in this manual refers to one or more 210 Vertex series solar modules. Please retain this manual for future reference.
  • Page 7 Do not stand, sit, walk, or jump directly on the module package or the module itself. The PV module does not contain any serviceable parts. Do not disassemble or move any part of the module. Do not damage or scratch the front- or backside surfaces of the module, as scratches may directly affect the product safety.

  • Page 8: Site Selection And Angle

    The tilt angle of the PV module refers to the angle between the module and the horizontal ground. The tilt angle shall be selected according to the local conditions for different projects. Trina Solar recommends that the mounting tilt angle should not be less than 10° . For specific tilt angles, it shall be chosen in accordance with the local design procedures, specifications and regulations, or following the recommendations of the experienced PV module installers.

  • Page 9: Unload/Transportation/Storage

    Upon arrival of the modules, please check the packaging box is in good condition, and check whether the module type and quantity on the outer packaging are consistent with the delivery order, if anything is wrong, please contact Trina Solar logistics and sales staff immediately. 1. Unloading with a crane When crane is used to unload the modules, please choose and use specialized tooling according to the weight and size of the module.
  • Page 10 Trina Solar User Manual | Vertex Series Modules Please choose a flat and solid ground to place the module package after transportation to the installation site. Forklift operation in warehouse When using a forklift to unload the modules, please choose a forklift with suitable tonnage according to module weight.
  • Page 11 Forklift operation at project site The forklift operation at project site refers to the transportation of modules between the storage site and the installation site after they arrived at the project storage site. Forklift requirements: Vertical portrait package Please use forklifts with a rated lifting capacity of ≥ 3.5 tons to load and transport the modules.
  • Page 12 Trina Solar User Manual | Vertex Series Modules Vertical landscape package ① Forks The fork length (L) should ≥ 1.0 m. The forks distance (W2) should be adjusted to the maximum position without any interference to the pallet. ② Backrest The backrest length (H) should ≥...
  • Page 13 SECONDARY TRANSPORTATION The packaged modules can be transported by land, sea or air. During transportation, make sure that the package is fixed with packing belts securely on the shipping platform without any movement. If the unpacked modules need to be transported to other places, it is recommended to pack the single module together in a package to the maximum number allowed, and fixed with inner packing belts (2100N force recommended).

  • Page 14: Unpacking Introduction

    Trina Solar User Manual | Vertex Series Modules For long-term storage, it is recommended to store the modules in a standard warehouse with regular inspection, and under confirming of your personal safety, reinforce the package in a timely manner if any anomalies are found.
  • Page 15 6 class wind (the modules should be less than 12 pieces). For matters regarding the unpacking stand supporter, please contact Trina Solar sales. In windy weather, it is recommended not to carry the modules, and the unpacked modules should be properly secured.

  • Page 16: Unpacking Steps

    Trina Solar User Manual | Vertex Series Modules 5.2 UNPACKING STEPS Method A: Unpacking for DE20 / DE21 / DEG21C.20 / NEG21C.20/ DE20.W/ DE21.W/ DEG21C.20W etc. series modules with vertical portrait package. 1) Remove the wrapping 3) Remove the carton box.
  • Page 17 Method B: Unpacking for vertical landscape package: DE18M(II) / DE18M.08(II) / DEG18MC.20(II) / DEG18M.20(II) / DEG18M.28(II) / DE19 / DEG19C.20 / DE19R / DEG19RC.20 / NEG19C.20 / NEG19RC.20 / DE18M.W(II) / DE18M.08W(II) / DEG18MC.20W(II) / DE19.W / DEG19C.20W / DE19R.W / DEG19RC.20W etc. series modules; and DE20 / DEG20C.20 / DE21 / DEG21C.20 / DE20.W / DEG20C.20W / DE21.W / DEG21C.20W only for China 3) Place the stand supporter that is higher or wider than the...

  • Page 18: Installation

    The fire rating of Trina Solar modules complies with relevant standards or local laws and regulations. Before installation, please carefully check the modules for abnormalities such as glass bursts, cell cracks, backsheet scratches, deformation of installation holes, broken junction boxes or missing covers, nameplates falling off or missing, and broken cables or connectors, etc.
  • Page 19 Do not install modules under rain, snow or windy conditions. If installing or operate modules after rain or in the morning dew, appropriate protective measures need to be taken to prevent water vapor from penetrating into the connector. Do not allow unauthorized persons to access the installation area. When installing with scaffolding, make sure that the scaffolding is in a stable position or with anti- dumping measures, and that the installer should wear a safety belt in accordance with local building codes.

  • Page 20: Installation Method

    If in such case that an alternative mounting method is used but not approved by Trina Solar, the module may get damaged and the warranty will be invalidated. The mechanical loads described in this manual are the test loads. For calculating the equivalent maximum design loads, a safety factor of 1.5 (Mechanical loads=Design loads×1.5 security...
  • Page 21 Product code Requirement DE09 / DE09.05 / DE09.08 / DE09C.05 / DE09C.07/ DE18M(II) / DE18M.08(II) / DEG18MC.20(II) / DE19 / All parts in contact with the frame should use flat stainless- DEG19C.20 / DE20 / DEG20C.20 / DE21 / DEG21C.20 / steel washers of a minimum of 1.5 mm (0.06 inch) NEG19C.20 / NEG20C.20 / NEG21C.20 / DE09.05W / thickness with an outer diameter of 16-18 mm (0.63-0.71...

  • Page 22: Clamp Installation

    6.2.2 CLAMP INSTALLATION Trina Solar has tested its modules with a number of clamps from different manufacturers, it is recommended to use fixing bolt of at least M8. The clamp shall not be malfunctioned due to deformation or corrosion during the loading process. It is recommended to use a clamp with length of ≥50 mm (1.97 inch) and thickness of ≥4 mm (0.16 inch), aluminum alloy 6005-T6,...
  • Page 23 End clamp installation Middle clamp installation. Figure 2. PV module installed with clamp fitting method. Clamp positions are of crucial importance for the reliability of the installation. The clamp centerlines must only be positioned within the ranges indicated in table below, depending on the configurations and loads.
  • Page 24 Uplift load ≤ 2400 Pa NEG20C.20 Downforce load ≤ 5400 Pa DE20.W DEG20C.20W The following installation methods and mechanical loads have been verified by the Trina Solar’s National Key Laboratory for PV Science and Technology. Module type Mechanical loads Module type Mechanical loads Use 4 clamps on the short side.
  • Page 25 DE09 DE09 DE09.05 DE09.05 A = (0 - 200) mm A = (0 - 200) mm DE09.08 DE09.08 DE09C.05 Uplift load ≤ 2000 Pa DE09C.05 Uplift load ≤ 1800 Pa DE09C.07 Downforce load ≤ 2400 Pa DE09C.07 Downforce load ≤ 2400 Pa DE09.05W DE09.05W DE09.08W...
  • Page 26 Trina Solar User Manual | Vertex Series Modules DE18M(II) DE18M.08(II) DE18M(II) A = (0 - 200) mm DEG18M.20(II) DE18M.08(II) A = (200 - 600) mm B = (0 - 200) mm DEG18M.28(II) DEG18M.20(II) Uplift load ≤ 1700 Pa DEG18MC.20(II) DEG18M.28(II) Uplift load ≤...
  • Page 27 DE09 DE09.05 DE09.08 Uplift load ≤ 2000 Pa A = (200 - 250 DE09C.05 Downforce load ≤ 2400 Pa DE09 or 350 - 400) mm DE09C.07 Uplift load ≤ 3000 Pa DE09.05 DE09.05W Downforce load ≤ 3600 Pa DE09.08 DE09.08W DE09C.05 A = (100 - 200 DE09C.07...

  • Page 28: Single-Axis Installation

    1.5 mm (0.06 inch) thickness with an outer diameter of 16- 18 mm(0.63-0.71 inch); for all other Vertex series modules, all parts in contact with the frame should use flat stainless steel washers of minimum 1.5 mm (0.06 inch) thickness with an outer diameter of 17-18 mm (0.67-0.71 inch).

  • Page 29: Grounding

    Do not drill any extra ground holes for convenience, this will void the modules warranty. Trina Solar does not provide grounding devices or materials. Any third-party grounding device that meets the requirements of the installation electrical equipment specifications can be used for grounding of Trina Solar’s modules.

  • Page 30: Electrical Installation

    (12 AWG). All other cables applied to connect the DC system should be provided with a similar or larger wire cross section. Trina Solar recommends that all cables are routed in appropriate conduits or rails where water does not accumulate.

  • Page 31: Wiring

    The number of modules in series and in parallel shall be designed reasonably according to the system configuration. All the above instructions must be followed to meet Trina Solar's warranty conditions. Figure 5: Series and parallel connection circuit diagram. Trina Solar recommends the following two wiring methods for portrait and landscape installations with short and long cable lengths, respectively.

  • Page 32: Fusing

    FUSING The correction factor of a fuse shall be determined by an authorized professional electrical engineer in accordance with the relevant design regulations and system simulation results. Trina Solar does not responsible for determining the minimum rating of fuse. The fuse rated current should be chosen depending on different standards, as follows: ⋅...

  • Page 33: Pv Module Maintenance

    Please cover the front surface of modules with an opaque material during repairing. Modules exposed to sunlight can generate high voltage, which is extremely dangerous. Trina Solar PV modules are equipped with bypass diodes in the junction box to minimize module heating and current losses.

  • Page 34: Connector And Cable Inspection

    7.3 CLEANING This manual covers the requirements for the cleaning procedures of Trina Solar PV modules. Professional installers should read these guidelines carefully and strictly follow these instructions. Failure to follow these instructions may result in death, injury, or property damage. Damages induced by inappropriate cleaning procedures will void Trina Solar warranty.
  • Page 35 (40 bar) Method B: Compressed Air Trina Solar recommends using this method to clean the soft dirt (like dust) on modules. This technique can be applied as long as the method is efficient enough to clean the modules considering the on-site conditions.

  • Page 36: Reporting Technical Issues And Claims

    Trina Solar User Manual | Vertex Series Modules REPORTING TECHNICAL ISSUES AND CLAIMS Contact your installer. ⚫ Contact Trina Solar after sales service team at http://customerservice.trinasolar.com/. ⚫ Submit the Customer Feedback Form at: http://customerservice.trinasolar.com/ and one of our ⚫ technical service representatives will contact you within 5 business days. A username and password is required to send feedback from the customer service link.

  • Page 37: Appendix A: Trackers Compatibility

    APPENDIX A: TRACKERS COMPATIBILITY The following tracker manufacturers and types are approved with Trina Solar modules. Module type Tracker company Tracker type Mechanical loads Vanguard™ DEG19C.20 Uplift load ≤ 2200 Pa NEG19C.20 Trina Solar Co., Ltd. (400 mm mounting holes position, Downforce load ≤...
  • Page 38 1) The compatibility list above is for reference only, and the mechanical load capacity value in the list is only the tested value. Trina Solar shall not be liable in any form for any personal damage or property loss caused by the use of the data or information in the compatibility list;...
