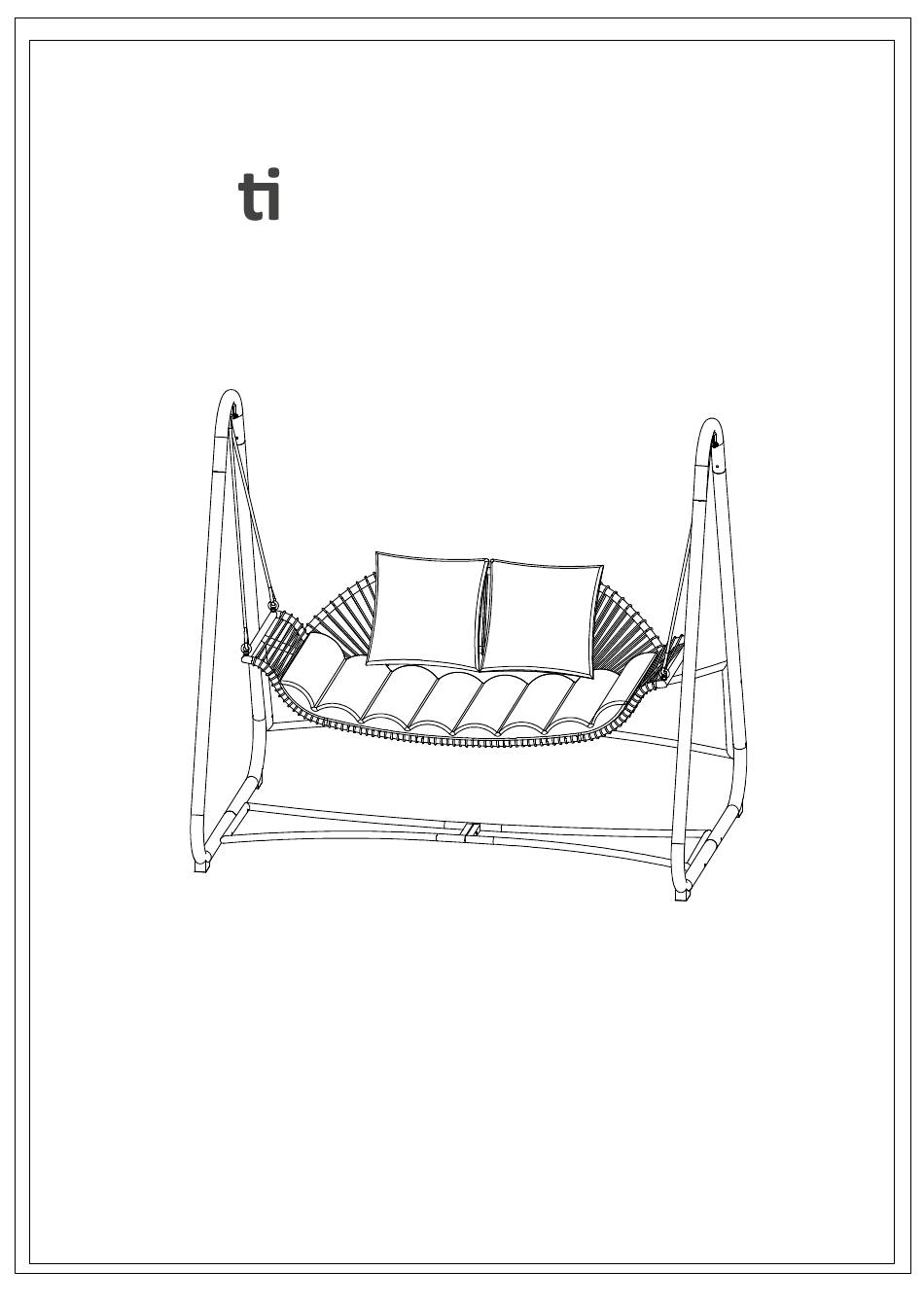

- Page 1 Pa o 2-Seat Swing ASSEMBLY MANUAL MODEL#:LQCR0583 Missing part? Damaged? Contact us via email at service@domioutdoorliving.com www.domioutdoorliving.com Copyright 2023-2025 domioutdoorliving LLC. All Rights Reserved.
-
Page 2: Care And Cleaning
READ & SAVE BELOW INSTRUCTIONS BEFORE ASSEMBL 1.Please separate and identify all parts, making sure that you have all of the parts listed. 2.To avoid any scratch during assembly, please assemble on a soft mat or similar. 3.Please assemble step by step and follow the instructions. 4.Washers must be used. - Page 4 (1) Insert part #E to #C (2) Connect part #C, D and E with 2 screws #8.Cover with plastic caps #11 as shown in diagram. Repeat the above procedures to assemble the other Part #C, D and E. (3) Connect part #F and G with screws #6/ gasket #9 & nuts #10, then cover with plastic caps #11 &...
- Page 5 1663mm 1650mm (4) Connect swing leg(#C/D/E) and support tube (#F/G) with 8 screws #1/ gaskets #3 & nuts #5, then cover with plastic caps #13 and #14 as shown in diagram. Repeat the above procedures to assemble the other part C/D/E and part F/G.
- Page 6 (5) Connect part #A and B with 4 screws #7, t hen cover with plastic caps #11 as shown in diagram . (6) Attach 4 hanging rope #J to the swing seat with the screws on # J.
- Page 7 (7) Insert part #15 to the rope eyelet, attach to the swing legs with screws #2/ gaskets #3/lock washers #4 and nuts #5, then cover with plastic caps #13 and #14. Repeat the above procedures to assemble another side.
- Page 8 (8) Put on the cushion and pillows then enjoy a lazy time.
- Page 9 Copyright 2023-2025 domioutdoorliving LLC. All Rights Reserved.
