d mi
o u t d o o r l i v i n g

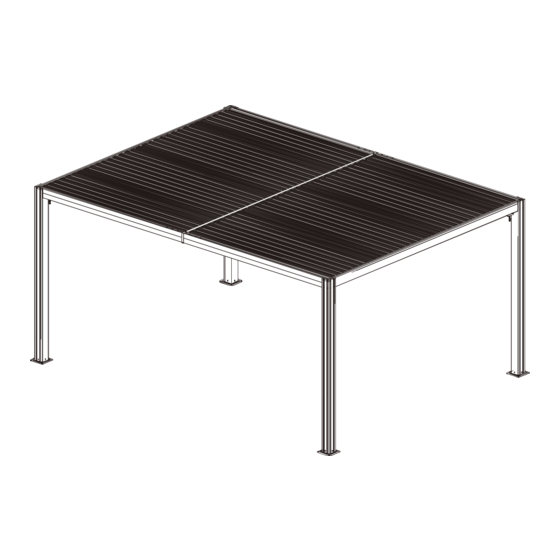

12'×16' LOUVERED PERGOLA
WITH ALUMINUM ROOF
ASSEMBLY MANUAL
MODEL#: LGFA1604B
Missing part? Damaged? Contact us via email at
service@domioutdoorliving.com
www.domioutdoorliving.com
©
Copyright 2022-2024 domi LLC. I All Rights Reserved.
Advertisement
Related Manuals for domi outdoor living LGFA1604B
Summary of Contents for domi outdoor living LGFA1604B

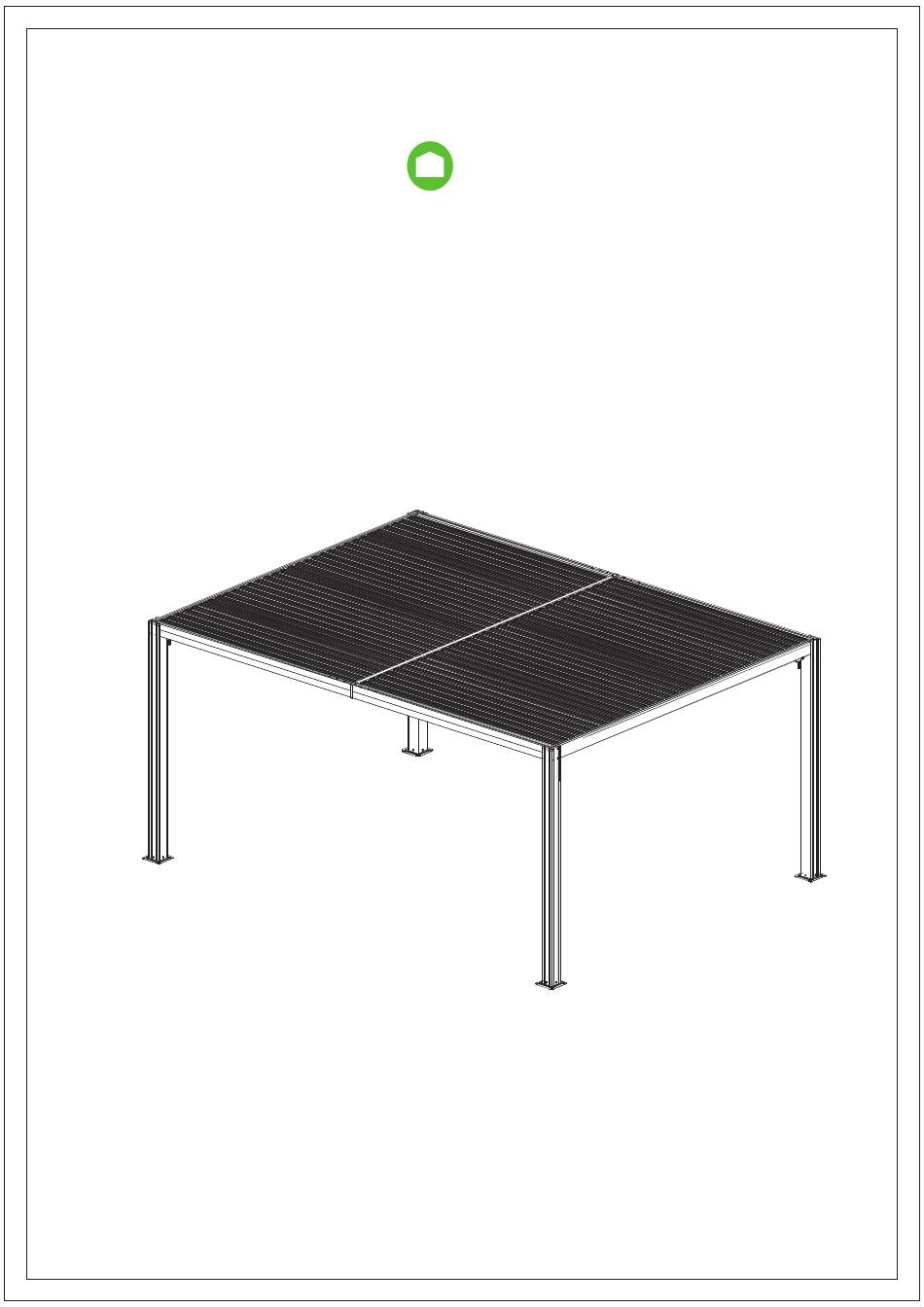

- Page 1 12'×16' LOUVERED PERGOLA WITH ALUMINUM ROOF ASSEMBLY MANUAL MODEL#: LGFA1604B Missing part? Damaged? Contact us via email at service@domioutdoorliving.com www.domioutdoorliving.com © Copyright 2022-2024 domi LLC. I All Rights Reserved.
- Page 2 -Maximum weight capacity is 1000 pounds. -If moderate to heavy snow is forecast, open the lovers to avoid snow accumulating.
- Page 3 12' x 16' Louvered Pergola Dimension 120X120mm (4.72x4.72")
- Page 4 MOUNTING BLUEPRINT Pergola 12' x 16' 3731mm (146.89") 174mm (6.85")
- Page 5 67mm(2.64") 35mm 1.38" If the deck is hard wood and the depth of it is over 3 inch If the ground is concreted and the depth you can use 5/16 in. ×4 in. of it is over 3 inch you can use 1/4 inch Structural Wood Screw to expansion bolts to mount the pergola.
- Page 7 Step 1: Connect Part #A and Part #F with 4 Bolts 1# as shown. Repeat the above procedures to assemble the other 3 posts.
- Page 8 Step 2: Insert Part #J into Part #B1. Secure with 2 Bolts 1# and 2 Bolts 9# as shown. Repeat the above procedures to assemble another beam.
- Page 9 Linkage Rod Step 3: Insert Part #K into the hole on Linkage Rod of Beam #B1. Secure with Nut 6# and gasket as shown. Linkage Rod Repeat the above procedures to assemble another beam.
- Page 10 Step 4: Insert 2 Part# H into Part #B3a and Part #B4a with 10 Bolts 1# as shown. Repeat the above procedures to assemble another beam.
- Page 11 Form Main Framework Step 5: Install 8 Bolts 2# to secure Beam #B1 and Beam #B3a/B4a with Post #A, Then install Part #G into Corner Post #A as shown. Repeat the above procedures to assemble the other three sides. ATTENTION: Don't tighten the bolts before all bolts are in the correct place.
- Page 12 Install Center Beam Step 6: Install Part #Ba to the middle joint of Part B3a and Part B4a With 4 Bolts 1# as shown. Repeat the above procedures to assemble another side. Right Side Left Side...
- Page 13 Step 7: Install Part #Ca on the inside of Part #B3a with 5 Bolts 3# as shown. Repeat the above procedures to assemble another side. Inside View...
- Page 14 Step 8: Install Part #G2 at the joint of Part #B3a and Part #B4a with 2 bolts 10# as shown. Repeat the above procedures to assemble another side.
- Page 15 Linkage Rod Step 9: Linkage Rod ② Fix another part of Part #L on Part #J ①Insert the connecting rod end of Part #L with 2 Bolts 8#, nuts and gaskets. into Part #K and secure with 1 Nut 7# and gasket.
- Page 16 Step 10: Install Part #Ea with 128 Bolts 10# as shown. ※ If moderate to heavy snow is forecast, pls open the louvers to avoid snow accumulating. Install Louvers...
- Page 17 Louver Close Louver Fully Louver Half State Open State Open State Step 11: Just shake the roller rod anytime you want let the sun in or block the sunray. (ATTENTION: Louvers can be opened and closed in cycles.) Please make sure that the Louvers were fully closed for waterproof effect.
- Page 18 Thanks for your purchase. At domi outdoor living, we believe in our products. That’s why we provide a 12-month warranty and friendly, casy-to-reach after-sales service. So if you have any questions about our product and assembly- ,please feel free to contact us.
