domi outdoor living LGMF8244A Assembly Manual

11' x 21' chalet pavilion
Hide thumbs

Advertisement

Table of Contents

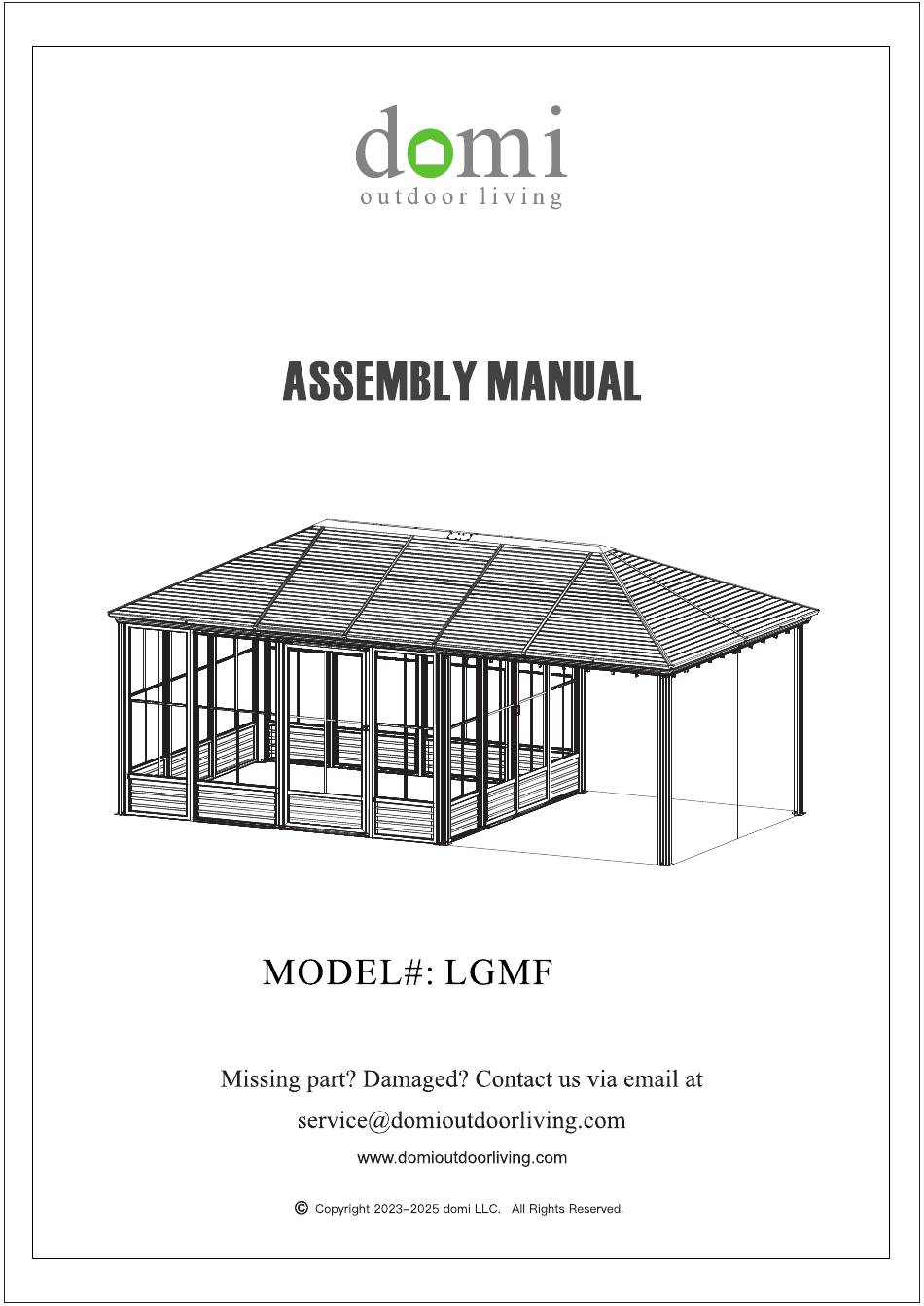

11' X 21' CHALET
PAVILION
8244A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LGMF8244A and is the answer not in the manual?

Questions and answers

Related Manuals for domi outdoor living LGMF8244A

Summary of Contents for domi outdoor living LGMF8244A

  • Page 1 11' X 21' CHALET PAVILION 8244A...
  • Page 2 THANK YOU FOR PURCHASING ® THE DOMI OUT LIVING CHALET PAVILION. This manual will provide you with clear and detailed instructions on how to safely and correctly assemble and maintain your chalet pavilion, to ensure it brings you many years of use and enjoyment. NOTICE IMPORTANT: A gazebo may entail purchasing a municipal permit or be subject to specific building codes.

  • Page 3: Operation

    OPERATION The gazebo is intended to be used as a shelter, Do not use this product for anything other than its intended use. Your shelter has been designed to be enjoyed during all four seasons and will resist snow accumulations up to 2000 lbs (907 kg).

  • Page 4: Maintenance And Care

    MAINTENANCE AND CARE Check periodically that the gazebo is anchored properly to the floor or ground and that all bolts remain tight to main -tain the solidity of the structure. Remove any foreign objects from the roof in order to avoid damages.Remove any snow accumulation on the roof at all times.
  • Page 5 PLANNING INSTALLATION AND SAFTY A. Keep this user guide and parts list for future Reference. Make sure that the boxes contain all the parts prior to assembly. Follow all assembly instructions for proper construction. In order to avoid damages to the shelter and its components, place all parts on a soft surface and useappropriate tools during assembly.

  • Page 6: Tools And Equipment Required

    To avoid damages, the gazebo should be assembled no less that 5 feet from any fixed obstruction. During assembly, do not use the structure as a support. Use a stepladder when necessary. Some parts contain sharp edges. Wear protective gloves when handling these parts.
  • Page 7 1000 1000 1000 A x5 A1 x1 A2 x4 AA x2 B x1 1506 1506 BB x1 B1 x1 B2 x1 B3 x1 C4b x2 2010 B4 x2 1460 B5 x2 1460 B6 x2 C4a x2 B7 x12 B8 x1 B9 x4 C x20 C1 x2...
  • Page 8 1548 Ea x2 1681 K1 x2 1548 Eb x2 2000 K2 x1 E5 x8 E6 x4 E7 x10 2000 K3 x1 E8 x4 E9 x8 F x2 K4 x2 1627 F1 x2 K5 x1 K6 x2 1627 F2 x2 K7 x2 K8 x3 F3 x1 M x8...
  • Page 9 R1 x4 R2 x4 Q1 x4 Q x6 Q2 x4 S x2 S1 x1 S2 x1 M6x16 M6x20 M5x16 x260 ST3.5x13 M6x35 ST3.5x25 M5x48 4x16 M4x50 M5x8 M5x8 M6x12 8244A-03...
  • Page 10 CONNECTING THE DOOR FRAME：...
  • Page 11 CONNECTING THE DOOR ASSEMBLIES：...
  • Page 12 DOOR TRACK ASSEMBLY:...
  • Page 13 Slide the 4 Door Stopper #B7 into the Track #B5&B6 as shown and secure with Blots #8. Slide the Door #B2/B3 into the Track #B5&B6.
  • Page 14 ①/②：Slide the 4 Door Stopper #B7 into the ③：Assemble the doorknob. Track #B5&B6 as shown and secure with Blots #8.
  • Page 15 CONNECTING THE DOOR ASSEMBLIES：...
  • Page 16 DOOR TRACK ASSEMBLY:...
  • Page 17 SLIDING DOOR ASSEMBLY:...
  • Page 19 Connecting The Screen Panels:...
  • Page 20 Step 2 Step 1 Step 3...
  • Page 21 Slide...
  • Page 22 CROSSBEAMS ASSEMBLY: (Gap Cover) (Beam) Section View...
  • Page 23 Step 1: Slide Beam #E1/E2; Step 2: Insert Beam Connector #E5 into #E1&E2; Step 3: Align the holes and secure with Bracket #E7 and 8 Bolts #1.
  • Page 24 ②: Use Bolts #1 to secure Bracket #E6 with Beam #E1&E2.
  • Page 25 ①:Insert Beam Connector #E5 into #E2&Eb; Align the holes and secure with Bracket #E7 and 8 Bolts #1. Repeat the above procedures to assemble another side(#E1&Ea). ②:Insert Beam Connector #E5 into #Eb&Ea; Align the holes and secure with 8 Bolts #1. Repeat the above procedures to assemble another side(#Ea&Eb).
  • Page 26 ③：Secure Bracket #E7 to the Beam #Eb with 4 Bolts #1; Repeat the above procedures to assemble another side (#Ea). ④：Secure Bracket #E7 to the Beam #Ea with 4 Bolts #1; Repeat the above procedures to assemble another side (#Eb).
  • Page 27 ①: Insert Beam Connector #E5 into #Ea&E3; ②: Align the holes and secure with Bracket #E7 and 8 Bolts #1. Repeat the above procedures to assemble another side(#Eb&E4).
  • Page 28 Slide Track #F3, #F1 to the Beam #Ea&E3; Slide Track #F4, #F2 to the Beam #Eb&E4. (Track) section view...
  • Page 29 Slide Track #F1 to the Beam #E3; Slide Track #F2 to the Beam #E4. (Track) section view...
  • Page 30 Insert...

  • Page 32: Post Assembly

    POST ASSEMBLY: Insert...
  • Page 33 POST & BASE PLATE ASSEMBLY:...
  • Page 34 Connecting the Corner Covers and Gap Covers:...
  • Page 35 DOUBLE-TRACK HOOKS ASSEMBLY:...
  • Page 36 INSIDE ROOF COVER ASSEMBLY: Step 1: Insert 2 Bracket #K7 into Support Tube #K3 and secure with 2 Blots #1. Step 2: Use part #K3 to connect with 2 Inside Roof Cover #K and secure with 2 Bolts #1.
  • Page 37 Secure 2 Support Tube #K4 to the Inside Roof Cover with 8 Bolts #1; Secure 2 Part #K6 to the Roof Cover with 8 Bolts #1. Install 3 J-Hooks #K8 to the Inside Roof Cover. Turn over the inside cover and use 6 Bolts #1 to secure the support tube with the cover.
  • Page 38 Connect #Ha with #Hb using 2 Bolts 1 and 2 Bolts #12 to form the whole Corner Roof Tube #H.
  • Page 39 inside view INSIDE ROOF COVER & ROOF TUBE ASSEMBLY:...
  • Page 40 OUTSIDE ROOF COVER ASSEMBLY: Step 1: Splice 2 parts #K1, Cover with #K5, align the holes, and secure with 16 Bolts #13 AND WASHERS.
  • Page 41 Step 2: Turn over the outside cover and secure Support Tube #K2 to the cover with 6 Bolts #1 (from top to bottom).
  • Page 42 OUTSIDE ROOF COVER ASSEMBLY:...
  • Page 43 Outside View Inside View Outside View SUPPORT BAR ASSEMBLY:...
  • Page 44 SUPPORT BAR ASSEMBLY:...
  • Page 45 ROOF PANEL ASSEMBLY: If you can not insert #R & Q completely, push the Outside Roof Cover up and try to insert them again.
  • Page 46 N1/N2 FINISHING END BAR & FINISHINGEND PLATE ASSEMBLY:...
  • Page 47 Inside View Roof Panel Plug #N5 needs to be inserted between the Roof Tubes and the splicing of the upper and lower roof panels, as shown.
  • Page 48 Hang the netting to the inside track.
  • Page 49 Hang the Curtains to the outside track.
  • Page 50 TEMPORARY SUPPORT POLE ASSEMBLY：...
  • Page 51 Anchoring the solarium： The unit must be anchored to either wood, stone tiles, or concrete using appropriate screws for that flooring. lMPORTANT: Camp nails cannot be used for permanent anchoring. Failure to do so may nullify the Warranty. The Temporary Support Pole is used to stand under the inside roof cover tube #K3,Which can strengthen the weight capacity of the metal roof.

  • Page 52: Warranty

    WARRANTY A. Frames ＆ Side Wall Frames and side walls constructions are warranted to be free from defects in material and workmanship for 1 year from item purchased, Damage to frame from negligence won't be covered by this warranty. B. Bolts And Nuts Bolts and nuts are warranted to be free from defects in material and workmanship for 1 year from item purchased.
  • Page 53 Please have your order ID available if you reach out for support. If you have damaged parts or product, please send us photos for an immediate response.
