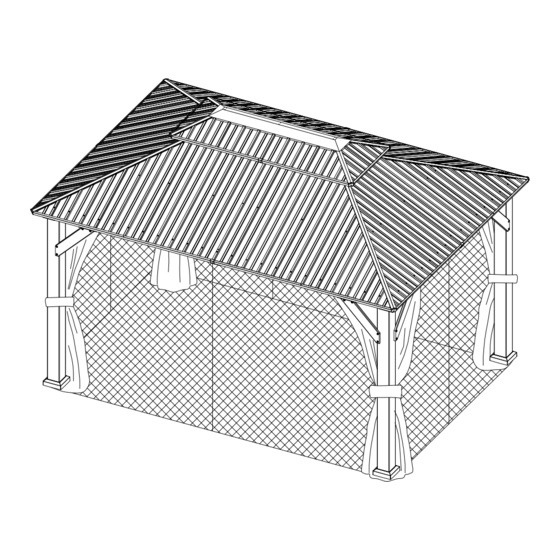

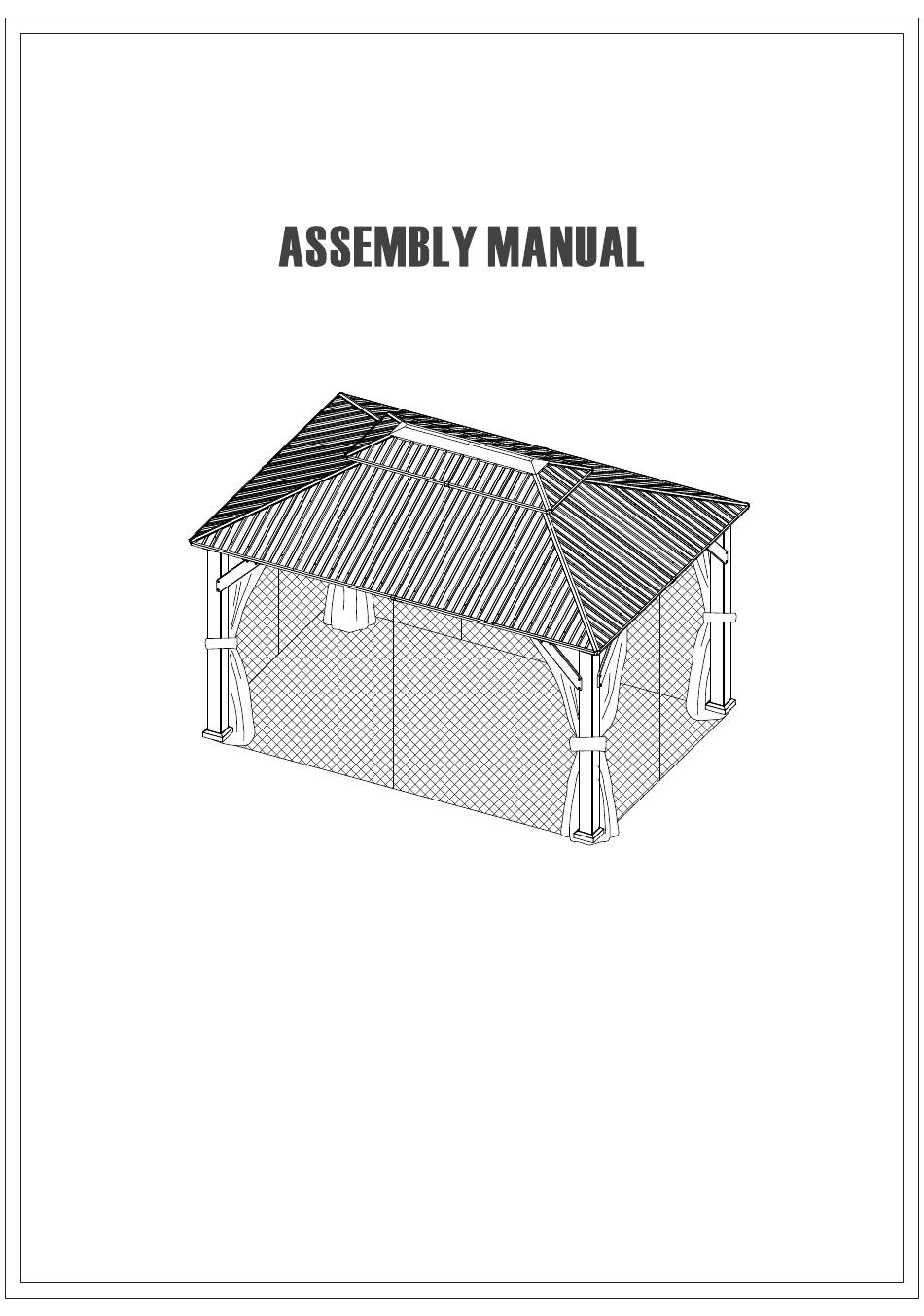

- Page 1 10'×14' Metal Patio Wood Gazebo MODEL#:LGMF1637 Missing part? Damaged? Contact us via email at service@domioutdoorliving.com www.domioutdoorliving.com © Copyright 2023-2025 domioutdoorliving LLC. All Rights Reserved.
- Page 3 ×16...
- Page 4 ×16...
- Page 5 Wood Post Beam Beam Beam Beam Corner Roof Bar Corner Roof Bar Connector Middle Roof Bar Solidifying Bar Solidifying Bar Solidifying Bar Finishing Bar Finishing Bar Finishing Bar Finishing Bar Finishing Bar...
- Page 6 Finishing Bar Finishing Bar Finishing Bar Finishing Bar Finishing Bar Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel...
- Page 7 Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Net Frame Net Frame Net Frame Base Base Cover Corner Bracket Bracket Joint Bar Solidifying Bar Corner Inside Roof Outside Roof J-Hook Solidifying Bar Cover Cover...
- Page 8 Joint Cover Bracket Bracket Bracket Spacer Joint Cover Bracket Plastic Hook Curtain Corner Cover Finishing End Finishing End Mosquito Plastic Plastic Plastic Netting Bracket Bracket Bracket Plastic Plastic Wrench Bracket Bracket...
- Page 9 Drill Plastic Cap...
- Page 13 Outside View Outside View Inside View (1) Connect Part #D to Part #A with 2 Bolts #17, and fix from the other side with 2 gaskets and nuts #18.(The first row of screw holes) (2) Connect Part #C to Part #A with 2 Bolts #17, and fix from the other side with 2 gaskets and nuts #18.(The second row of screw holes) (3) Secure Part #D &...
- Page 15 Outside View...
- Page 19 Inside Roof Cover...
- Page 23 Outside Roof Cover...
- Page 26 (4) Repeat the above procedures to assemble the other 3 sides.
- Page 29 Inside View...
- Page 32 Cover Part #Z to Roof Panels.
- Page 33 If you can’t install N2, push the outside roof cover up and try to insert them again. (2) Insert Part #N2 and Part #N3 into the frame.
- Page 37 Cover Part #Z, #Z3, #Z4 to Roof Panels...
- Page 38 Cover Part #Z, #Z1 to Roof Panels...
- Page 39 Cover Part #Z, #Z2 to Roof Panels...
- Page 40 Part #W should be inserted between roof panels and solidifying bar or beams, then secure with bolts. ② ② ② ② ②...
- Page 41 Solidifying Bar Beam...
- Page 42 (1) Insert Part #P8, Part #P7 and Part #P6 into the frame. Solidifying Bar Beam...
- Page 43 (1) Insert Part #P5,and 2 Parts #P4 into the frame. (2) Place 4 Parts #W between roof panels and solidifying bars. Then secure with 4 Bolts #12 and 4 Nuts #5. Solidifying Bar (3) Place 9 Parts #W between roof panels and beams. Then secure with 9 Bolts #10 and 9 Nuts #5.
- Page 44 (1) Place 2 Parts #W between Part #P5 and Part #E2. Then secure with 2 Bolts #9.
- Page 45 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #M1 and (2) Insert Part #M6 and Part #M2 into the frame. Part #M5 into the frame. (3) Place 2 Parts #W between roof panels and solidifying bars.
- Page 46 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #M3 and Part #M4 into the frame. (2) Place 2 Parts #W between roof panels and solidifying bars. Then secure with 2 Bolts #12 and 2 Nuts #5. (3) Place 6 Parts #W between roof panels and beams.
- Page 47 (1) Place 2 Parts #W between Part #M3/M4 and Part #E2. Then secure with 2 Bolts #9. (2) Repeat the above procedures to assemble the opposite side.
- Page 48 (1) Place Part #K2 and Part #K3 on Part #E2; Put on Part #X2 and secure with Bolt #8. (2) Repeat the above procedures to assemble the opposite side.
- Page 49 (1) Place Part #K and Part #K1 on Part #E2; Put on Part #X2 and secure with Bolt #8. (2) Repeat the above procedures to assemble the opposite side.
- Page 50 (1) Place Part #K3 and Part #K on Part #E; Put on Part #X3 and secure with Self-tapping Screw #2. (2) Repeat the above procedures to assemble the other 3 corners.
- Page 51 (1) Attach roof panels to finishing bars with 2 Self-tapping Screws #3. (2) Repeat the above procedures to assemble the other 3 sides.
- Page 52 Double-track 6 Hooks × 2 Rows 8 Hooks × 2 Rows 6 Hooks × 2 Rows 8 Hooks × 2 Rows 8 Hooks × 2 Rows 6 Hooks × 2 Rows 8 Hooks × 2 Rows 6 Hooks × 2 Rows...
- Page 53 (2) Install Part #T1 at the joint of Part C&C1 with Bolt #8. Double-track (3) Repeat the above procedures to assemble the opposite side.
- Page 54 (1) Place 8 hooks on each slot of the Sidewall Track(D&D1). (2) Install Part #T1 at the joint of Part D&D1 with Bolt #8. Double-track (3) Repeat the above procedures to assemble the opposite side.
- Page 55 Hang up Mosquito Sidewalls to Inside Track...
- Page 56 Hang up Solid Sidewalls to Outside Track...
