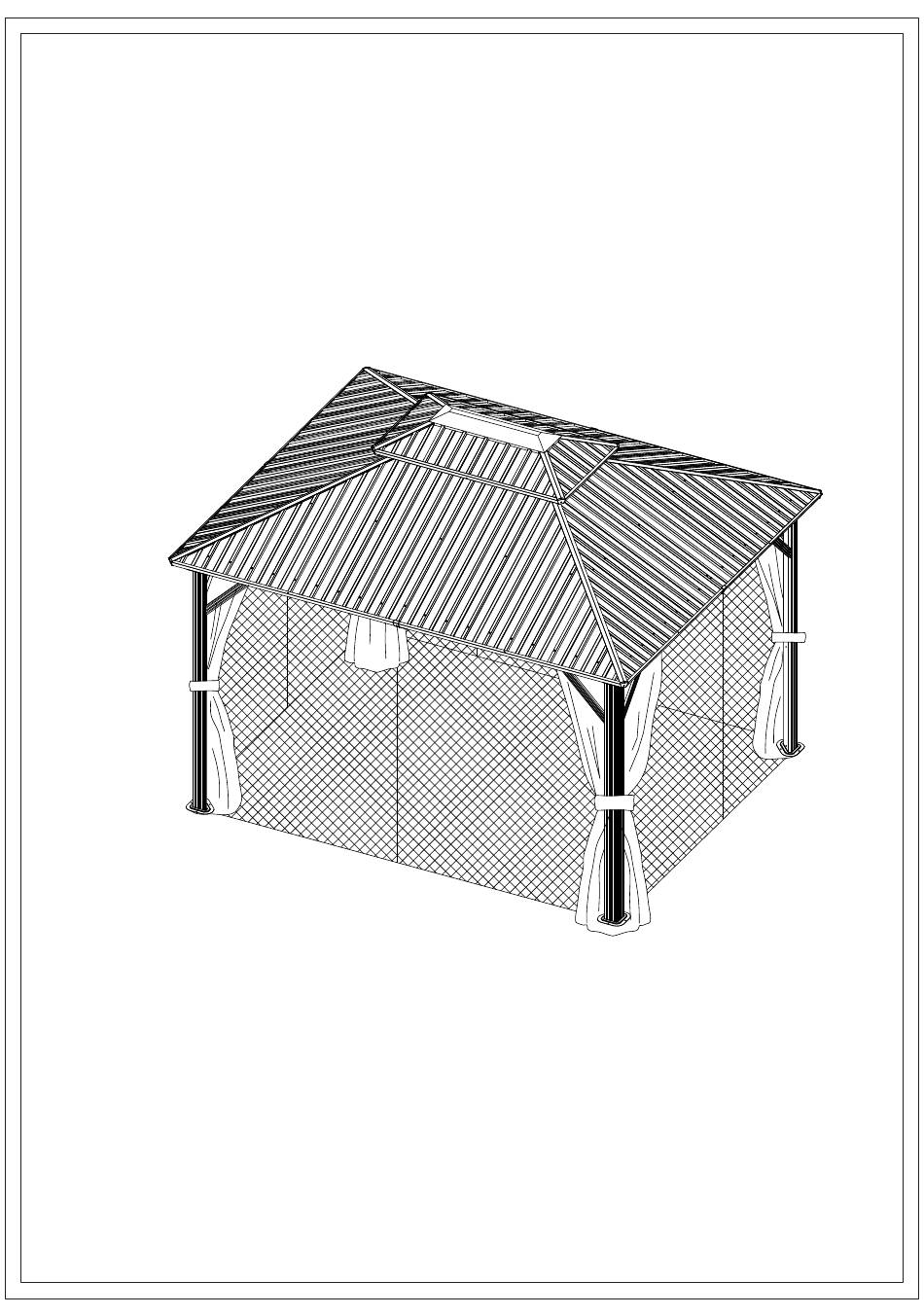

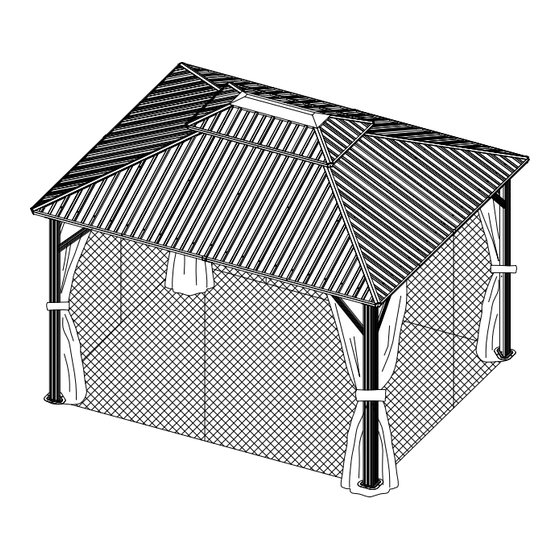

10'×12' Metal Patio Gazebo
ASSEMBLY MANUAL
MODEL# : LGMF1596
Missing part? Damaged? Contact us via email at
service@domioutdoorliving.com
www.domioutdoorliving.com
©
Copyright 2022-2024 domi LLC. I All Rights Reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LGMF1596 and is the answer not in the manual?

Questions and answers

Meka Allen
March 15, 2025

I bought this gazebo that had missing boxes I only received box 1 missing box 2 and 3 can I found out the price of the missing boxes LGMF1596B-1

User image 67d5e87e4d6e5
1 comments:
Tiffany M Lea
March 28, 2025

@Meka Allen I will buy your box I have the second box

User image 67e6fa7393988
jeff collver
June 5, 2025

I am missing one roof support bar. Part Ae. I need it to complete my roof.

Summary of Contents for domi outdoor living LGMF1596

  • Page 1 10'×12' Metal Patio Gazebo ASSEMBLY MANUAL MODEL# : LGMF1596 Missing part? Damaged? Contact us via email at service@domioutdoorliving.com www.domioutdoorliving.com © Copyright 2022-2024 domi LLC. I All Rights Reserved.
  • Page 2 U s e b o l t s t o s e c u r e t h e f r a me t o t h e g r o u n d t o a g a i n s t t h e s t r o n g w i n d . !...
  • Page 5 Pole Beam Beam Beam Beam Corner Roof Bar Roof Bar Corner Roof Bar Connector Solidfying Bar Solidfying Bar Finishing Bar Finishing Bar Finishing Bar Finishing Bar Finishing Bar Finishing Bar...
  • Page 6 Finishing Bar Finishing Bar Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel...
  • Page 7 Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Net Frame Net Frame Net Frame Base Joint Cover Corner Corner Joint Cover Union Bar Solidifying Bar Solidifying Bar Inside Roof Outside Roof J-Hook Bracket Connector Connector Bracket Joint Cover Bracket Bracket...
  • Page 8 Hook Spacer Bracket Corner Cover Solid Sidewall Mosquito Finishing End Finishing End Sidewall (need to buy extra) Plastic Bracket Plastic Bracket Plastic Bracket Plastic Bracket Plastic Bracket...
  • Page 9 (1) Attach 2 Part #B1 to Part #A with 4 Bolts #8. (2) Attach 2 Part #B2 to Part #A with 4 Bolts #6. (3) Attach Part #B to Part #A with 3 Bolts #8. (4) Repeat the above procedures to assemble the other 3 Part #A.
  • Page 10 (2) Insert the other side of (1) Insert Part #C2 into Part #C1 Part #C2 into Part #C and and secure with 3 Bolts #8. secure with 3 Bolts #8. (4) Insert Part #X into the beam (3) Connect Part #C1 and and secure with 1 Bolt #8.
  • Page 11 (2) Insert the other side of (1) Insert Part #C2 into Part #D, Part #C2 into Part #D1 and and secure with 3 Bolts #8. secure with 3 Bolts #8. (4) Insert Part #X into the beam (3) Connect Part #D and and secure with 1 Bolt #8.
  • Page 12 (1) Connect Part #C/C1 and #D/D1 to Part #A with 8 Bolts #4. (From Outside) (2) Repeat the above procedures to assemble the other 3 corners. Please don't tighten all bolts.
  • Page 13 (1) Connect Part #C/C1 and #D/D1 to Part #A with 4 Bolts #8. (From Inside) Inside View (2) Repeat the above procedures to assemble the other 3 corners. Please don't tighten all bolts.
  • Page 14 (1) Affix Part #R and Part #R1 to the frame with 8 Bolts #8. Inside View (2) Repeat the above procedures to assemble the other 3 corners. Please don't tighten all bolts.
  • Page 15 (1) Cover the corner with Part #X1. (2) Secure with 2 Self-tapping Screws #3. (from top to bottom) (3) Secure with 2 Self-tapping Screws #3. (from bottom to top) (4) Repeat the above procedures to assemble the other 3 corners. Tighten all bolts.
  • Page 16 Assemble the 4 Corner Roof Bars: (1) Connect Part #E1 and Part #E with 2 Bolts #8 . (2) Attach Part #U to Part #E with Bolt #8 . (3) Repeat the above procedures to assemble the other 3 Corner Roof Bars.
  • Page 17 Please have a freestanding ladder ready at the center of the gazebo. (1) Place 4 Part #E1 on the 4 corners of Part #S. Secure with 8 Bolts #8 (from bottom to top) ATTENTION: You can also finish this step on the ground and then lift 4 corner roof bars and inside roof connector to the top together.
  • Page 18 (1) Attach Part #U1 to Part #E2 with Bolt #7 . (2) Repeat the above procedures to assemble the other 3 roof bars.
  • Page 19 (1) Place Part #E2 on Part #S. Secure with Bolt #8 (from bottom to top). Outside View Inside View (2) Connect Part #E2 and the Assembled Beam(D&D1) with part #U1. Secure with 2 Bolts #8. (3) Repeat the above procedures to assemble the opposite side.
  • Page 20 (1) Place Part #E2 on part #S. Secure with Bolt #8 (from bottom to top). Outside View Inside View (2) Connect Part #E2 and the Assembled Beam(C&C1) with part #U1. Secure with 2 Bolts #8 . (3) Repeat the above procedures to assemble the opposite side.
  • Page 21 Secure Part #T to Part #S and Part #S1. (From Bottom to Top) ATTENTION: The holes of Part #S and Part #S1 need to be aligned, on the same vertical line.
  • Page 22 Inside View (1) Insert Part #U3 into Part #G. (2) Attach Part #G to the Part #E2 with 1 Bolt #7 and 2 Blots #8. (3) Repeat the above procedures to assemble the opposite side. Outside View...
  • Page 23 Inside View (1) Insert Part #U3 into 2 Part #F. (2) Attach 2 Part #F to Part #E2 with 1 Bolt #7 and 2 Blots #8. (3) Repeat the above procedures to assemble the opposite side. Outside View...
  • Page 24 Inside View (1) Insert Part #U2 into Part #F and Part #G. (2) Secure with 2 Bolts #8. (3) Secure them to Part #E with Bolt #8. (4) Repeat the above procedures to assemble the other 3 sides.
  • Page 25 (1) Connect Part #J1 and Part #Q1 & #Q2 with 4 Bolts #7 and 4 Nuts #5. (2) Place the Assembled Part #J1 , #Q1 & #Q2 on Part #E2, securing with 1 Bolt #8. (3) Repeat the above procedures to assemble the opposite side.
  • Page 26 (1) Connect Part #J and Part #Q with 2 Bolts #7 and 2 Nuts #5. (2) Place the Assembled Part #J & #Q on Part #E2, securing with 1 Bolt #8. (3) Repeat the above procedures to assemble the opposite side.
  • Page 27: Inside View

    (1) Place Part #J and Part #J1 on Part #E; put on Part #X3 and secure with Self-tapping Screw #2. Inside View (2) Repeat the above procedures to assemble the other 3 corners.
  • Page 28 Cover Part #Z, #Z1 & #Z2 to Roof Panels. Section View...
  • Page 29 Cover Part #Z to Roof Panels. Section View...
  • Page 30 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #N1 and (2) Insert Part #N4 and Part #N2 into the frame. Part #N3 into the frame. (3) Repeat the above procedures to assemble the opposite side.
  • Page 31 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #L1 and Part #L2 into the frame. (2) Attach Part #H to Part #E2, securing with Bolt #8. (3) Repeat the above procedures to assemble the opposite side.
  • Page 32 (1) Place Part #H and Part #H1 on Part #E1; put on Part #X3 and secure with Self-tapping Screw #2 Outside View (2) Repeat the above procedures to assemble the other 3 corners.
  • Page 33 Cover Part #Z, #Z3 & #Z4 to Roof Panels. Section View...
  • Page 34 Cover Part #Z & #Z3 to Roof Panels.
  • Page 35 Cover Part #Z & #Z4 to Roof Panels.
  • Page 36 Part #W should be inserted between roof panels and solidifying bar or beams, then secure with bolts and nuts.
  • Page 37 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #P1, Part #P2 (2) Insert Part #P8, Part #P7 and Part #P3 into the frame. and Part #P6 into the frame. (3) Place 2 Part #W between roof panels and solidifying bars.
  • Page 38 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #P4 and Part #P5 into the frame. (3) Place 2 Part #W between roof panels and solidifying bars. Then secure with 2 Bolts #12 and 2 Nuts #5. (2) Place 6 Part #W between roof panels and beams.
  • Page 39 (1) Place 2 Part #W between roof panels and Part #E2. Then secure with 2 Bolts #9 and 2 Nuts #5. (2) Repeat the above procedures to assemble the opposite side.
  • Page 40 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #M1 and (2) Insert Part #M6 and Part #M2 into the frame. Part #M5 into the frame. (4) Place 2 Part #W between roof panels and solidifying bars. Then secure with 2 Bolts #12 and 2 Nuts #5.
  • Page 41 ATTENTION: The bigger roof panel need to cover the smaller one. (1) Insert Part #M3 into the frame. (3) Place 2 Part #W between roof panels and solidifying bars. Then secure with 2 Bolts #12 and 2 Nuts #5. (2) Insert Part #M4 into the frame.
  • Page 42 (1) Place 2 Part #W between roof panels and Part #E2. Then secure with 2 Bolts #9 and 2 Nuts #5. (2) Repeat the above procedures to assemble the opposite side.
  • Page 43 (1) Place Part #K2 and Part #K3 on Part #E2; Put on Part #X2 and secure with Bolt #8. (2) Repeat the above procedures to assemble the opposite side.
  • Page 44 (1) Place Part #K and Part #K1 on Part #E2; Put on Part #X2 and secure with Bolt #8. (2) Repeat the above procedures to assemble the opposite side.
  • Page 45 (1) Place Part #K3 and Part #K on Part #E; Put on Part #X3 and secure with Self-tapping Screw #2. (2) Repeat the above procedures to assemble the other 3 corners.
  • Page 46 (1) Attach roof panels to finishing bars with 2 Self-tapping Screws #3. (2) Repeat the above procedures to assemble the other 3 sides.
  • Page 47 How to Put the 104 Hooks into the Double-track Double-track 7 Hooks × 2 Rows 6 Hooks × 2 Rows 7 Hooks × 2 Rows 6 Hooks × 2 Rows 7 Hooks × 2 Rows 6 Hooks × 2 Rows 6 Hooks ×...
  • Page 48 (1) Place 6 hooks on each slot of the Sidewall Track(C1&C). (2) Install Part #T1 at the joint of Part C&C1 with Bolt #8. Double-track (3) Repeat the above procedures to assemble the opposite side.
  • Page 49 (1) Place 7 hooks on each slot of the Sidewall Track(D&D1). (2) Install Part #T1 at the middle of Part #D&D1 with Bolt #8. Double-track (3) Repeat the above procedures to assemble the opposite side.
  • Page 50 Hang up Mosquito Sidewalls to Inside Track...
  • Page 51 Hang up Solid Sidewalls to Outside Track...
  • Page 52 Thanks for your purchase. At domi outdoor living, we believe in our products. That’s why we provide a 12-month warranty and friendly, casy-to-reach after-sales service. So if you have any questions about our product and assembly- ,please feel free to contact us. We will be here for you.
