CommScope Ruckus I100 Quick Setup Manual

Ruckus I100 IoT Module
Quick Setup Guide
This Quick Setup Guide provides information about how to install
the Ruckus I100 IoT Module on a Ruckus Access Point and where
to go for more information about how to configure and use the
Ruckus I100 IoT Module (part # 902-I100-WW00).
This Guide in Other Languages
请从以下网站获得该指南的简体中文版
support.ruckuswireless.com.
Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
このガイドの日本語版は
https://support.ruckuswireless.com
でご覧ください。
이 가이드의 한국어 버전은 웹 사이트
(https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta guía en
https://support.ruckuswireless.com.
Before You Begin
Before installing the Ruckus I100 IoT Module on the Access Point
(AP), complete the prerequisites in this section:
• Install and configure the Ruckus IoT Controller software on a
server. The Ruckus IoT Controller Software Installation Guide
and the Ruckus IoT Controller Configuration Guide are both
available at http://support.ruckuswireless.com/documents.
• Ensure you are running SmartZone 3.6.1 or a later release.
Software upgrades are available at http://
support.ruckuswireless.com/software.
• Note the following resources:
– Release Notes and other user documentation are available at
http://support.ruckuswireless.com/documents.
– Software license and limited warranty information are
available at http://support.ruckuswireless.com/warranty.
Copyright © 2020 CommScope, Inc. All rights reserved.
Published January 2020, Part Number 800-71699-001 Rev E
Package Contents
• Ruckus I100 IoT USB Module
• One bracket
• One cap and captive screws
• One clip with adhesive backing and screw
• USB cable
• Regulatory Flyer/DOC document
• This Ruckus IoT Quick Setup Guide
What You Will Need
• #1 Phillips screwdriver
• T10 Torx screwdriver
• 3 mm Hex Key
• Torque screwdriver
Install the I100 IoT Module on an Indoor AP with
a Cable Bay
https://
Plug the I100 IoT Module into the USB port of the AP. The module
should fit without interference inside the cable bay, as shown in
the following figure.
FIGURE 1 AP with I100 IoT Module plugged into the USB port in the
cable bay
https://
Install the Ruckus I100 IoT Module on the H510
Access Point
1. Plug the I100 IoT Module into the USB port of the H510.
2. Attach the bracket to the AP, as shown in the following figure.

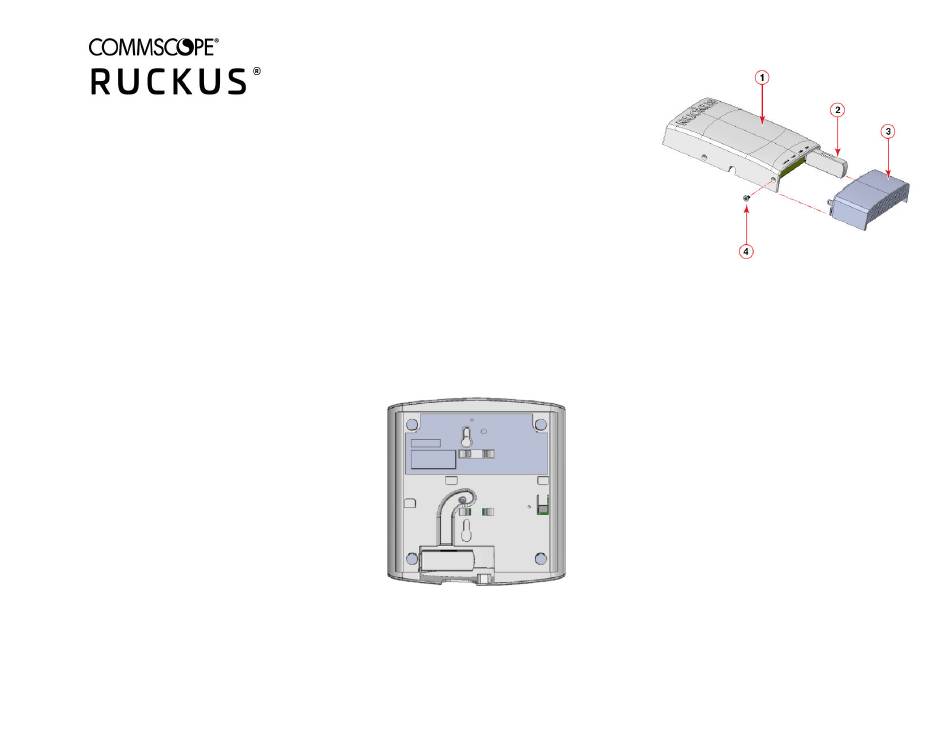

FIGURE 2 AP with I100 IoT Module and bracket
1. H510 4. Screws for securing the
bracket
2. I100 IoT Module
3. Bracket
Page 1 of 2
