Introduction
The Model 3730 is a two-pole 6 row by 16 column matrix card. It can connect up to six differential instrument
channels to any combination of 16 devices under test (DUTs). Any row can be connected to the Series 3700A
mainframe backplane by using the analog backplane connection relays. This allows for easy matrix column
expansion. A matrix of up to six rows by 96 columns can be supported within a single Model 3706A mainframe
with six Model 3730 cards.
The Model 3730 uses two 50-pin male D-sub connectors for signal connections. For screw-terminal connections,
use the detachable Model 3730-ST accessory. For more information regarding available cards and accessories,
refer to the Series 3700A System Switch/Multimeter and Plug-in Cards datasheet, available at tek.com/keithley.
The 3730 card is shown in the following figure.
Item shipped may vary from model pictured here.
This document describes how to install the plug-in card and make connections to it. For information on scanning,
and on reading, writing, and controlling channels, refer to the Series 3700A System Switch/Multimeter Reference
Manual, available at tek.com/keithley.
077183800 October 2024

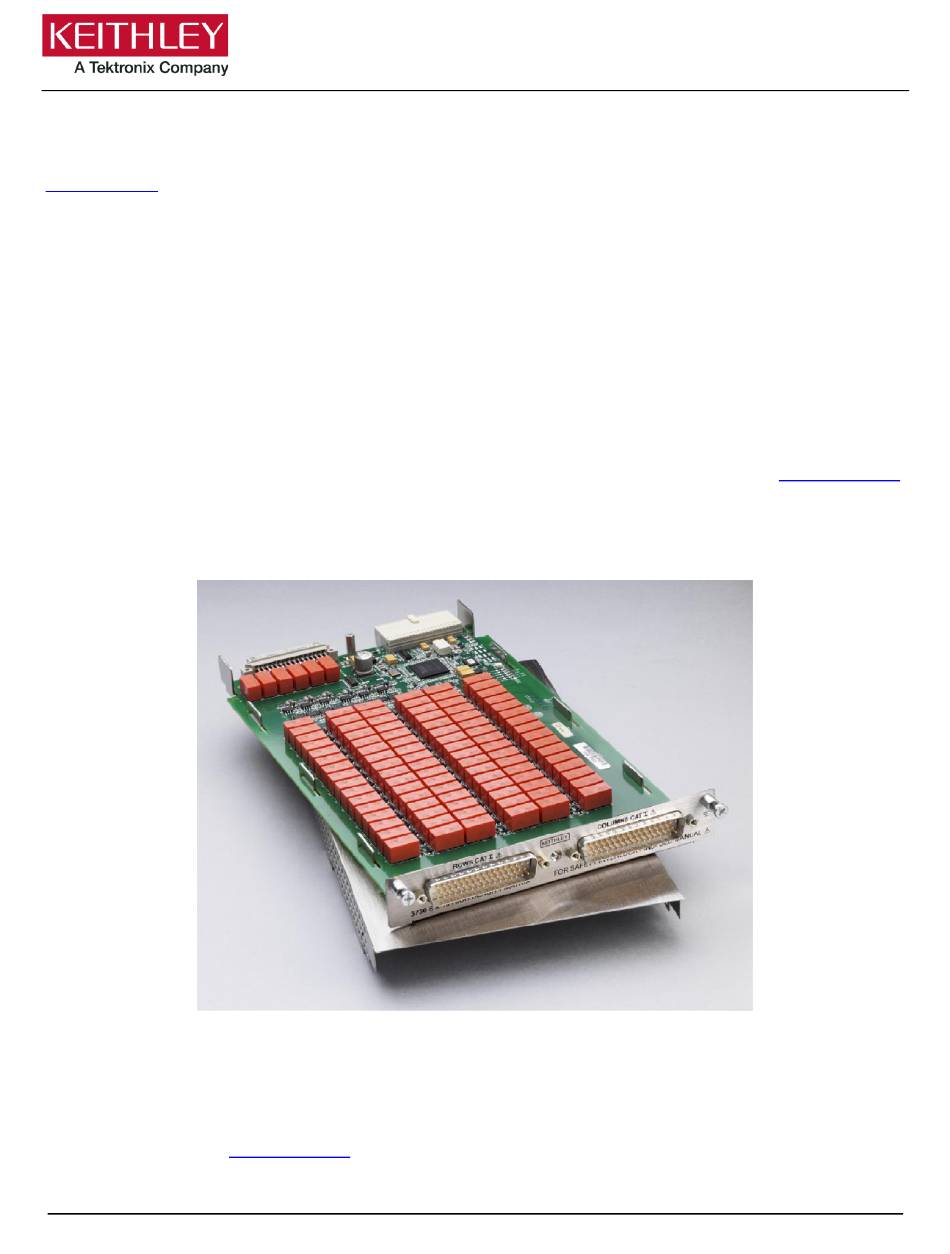

Figure 1: Model 3730 6 x 16 Matrix Card
*P077183800*
Model 3730 6×16 Matrix Card
Instructions
1
