Assembly Instruction
Item#: D-GZ215PST-4-2

Advertisement

loading
Need help?

Need help?

Do you have a question about the D-GZ215PST-4-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunjoy D-GZ215PST-4-2

Summary of Contents for Sunjoy D-GZ215PST-4-2

  • Page 1 Assembly Instruction Item#: D-GZ215PST-4-2...

  • Page 2: Parts List

    Parts List Post Base Base Cover Long Beam(short side) Short Beam(short side) Long Beam(long side) Short Beam(long side) Bottom tube of slanting beam Middle Beam Connector Slanting Bar Long Middle Beam Short Middle Beam Long Netting Bar Short Netting Bar Big Top Connector Hook Small Top Connector...

  • Page 3: Hardware Pack

    Parts List Slanting Support Bar Hardware Pack 1 M6x15 Bolt 56 PCS M6 Flat Washer 80 PCS M6x15 Bolt 24 PCS M6 Wrench 1 PC Fig.1: Insert Base Cover (C) into Post (A), attach Base (B) to Post (A) by using Bolt (AA) and Flat Washer (BB). Fig.2: Attach Long Beam (F) to Short Beam (G) by using Bolt CC and Flat Washer BB.
  • Page 4 Fig.5, Fig.5-1: Attach Slanting Support Bar (X) to Beam and Post (A) by using Bolt (AA) and Flat Washer (BB). Fig.6: Attach Middle Beam Connector (I) to Beam (D, E, F, G) by using Bolt (AA) and Flat Washer (BB). Hardware Pack 2 M6 Flat Washer 16 PCS...
  • Page 5 Fig.11: Attach Long Middle Beam (L) and Short Middle Beam (M) to Middle Beam Connector (I) respectively by using Bolt DD, Flat Washer BB, Nut EE. Fig.12: Insert Small top support beam (S) into Small Top Connector (R). Fig.13: Put Big Canopy (T) on the big top and do not expand it now. Assemble the Small canopy (U) into 4 corners of Small Top Support Beam (S).

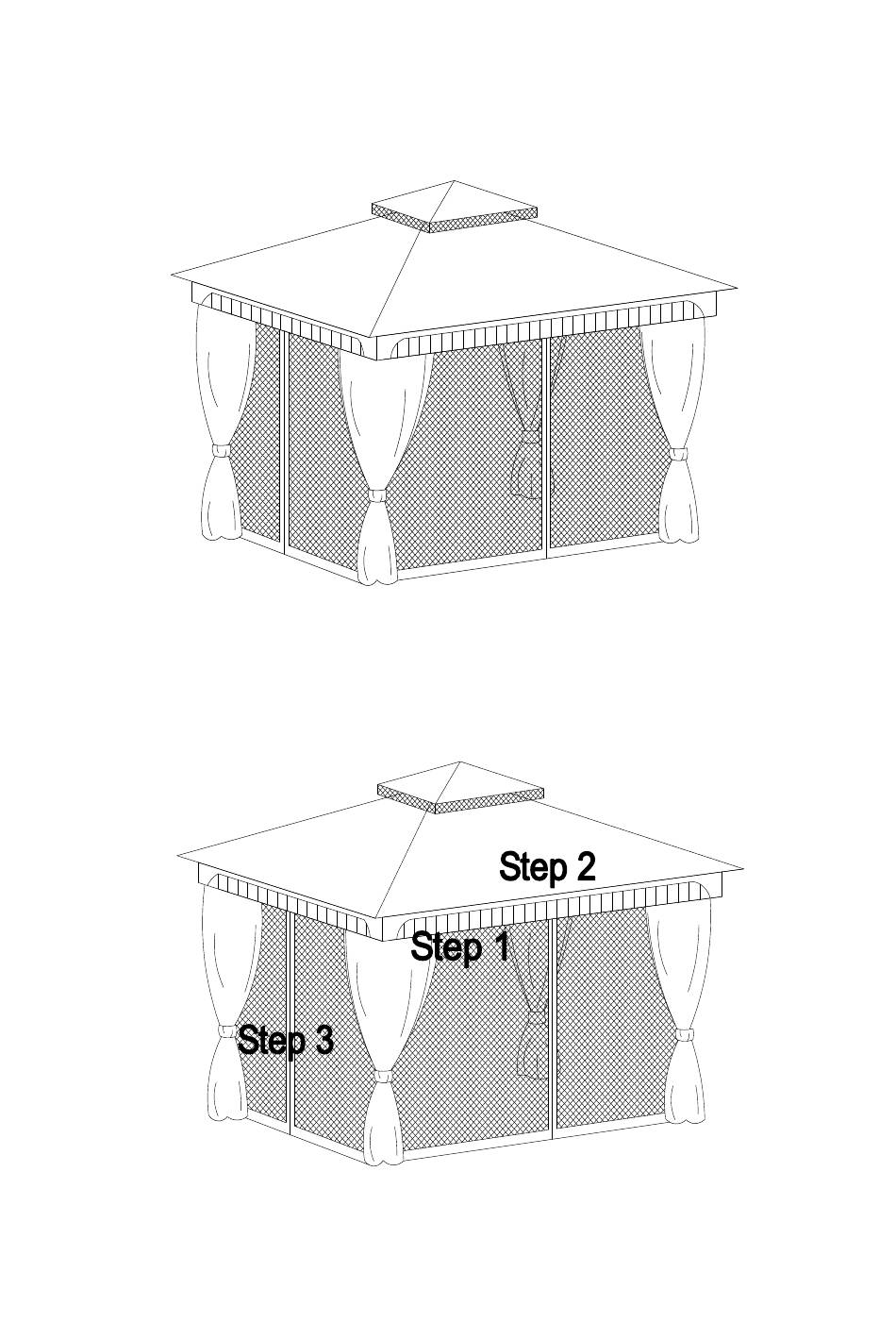

  • Page 6 Fig.15: Spread Big Canopy (T) and fix it into Bottom tube of slanting beam (H). Fig.16: Hang Mosquito Netting (W) and Curtain (V) on the beam (D, E, F, G) and Netting bar (N, O) by using Plastic Ring (GG). Fig.17: Up Base cover (C), use Stake (FF) to fasten the gazebo on the ground and now your gazebo is ready for use.
  • Page 7 Important: Please do not return this product to the store. For technical assistance on assembly or replacement parts. Please call Sunjoy Industries at 1-866-578-6569 from 8:00 am EST to 8:00 pm PST or fax the replacement part form which is in the box to 1-740-283-3549 or Email customer.care@sunjoygroup.com for assistance.
