Assembly Instructions
Item: D-GZ339PAL-A
Our clear, easy-to-follow, step-by-step instructions will guide you through the project from start to finish. The
final product will be a quality piece that will go together smoothly and give years of enjoyment.
Tools Needed: Screwdriver & hammer & ladder (more than 2.5m/8.2feet).

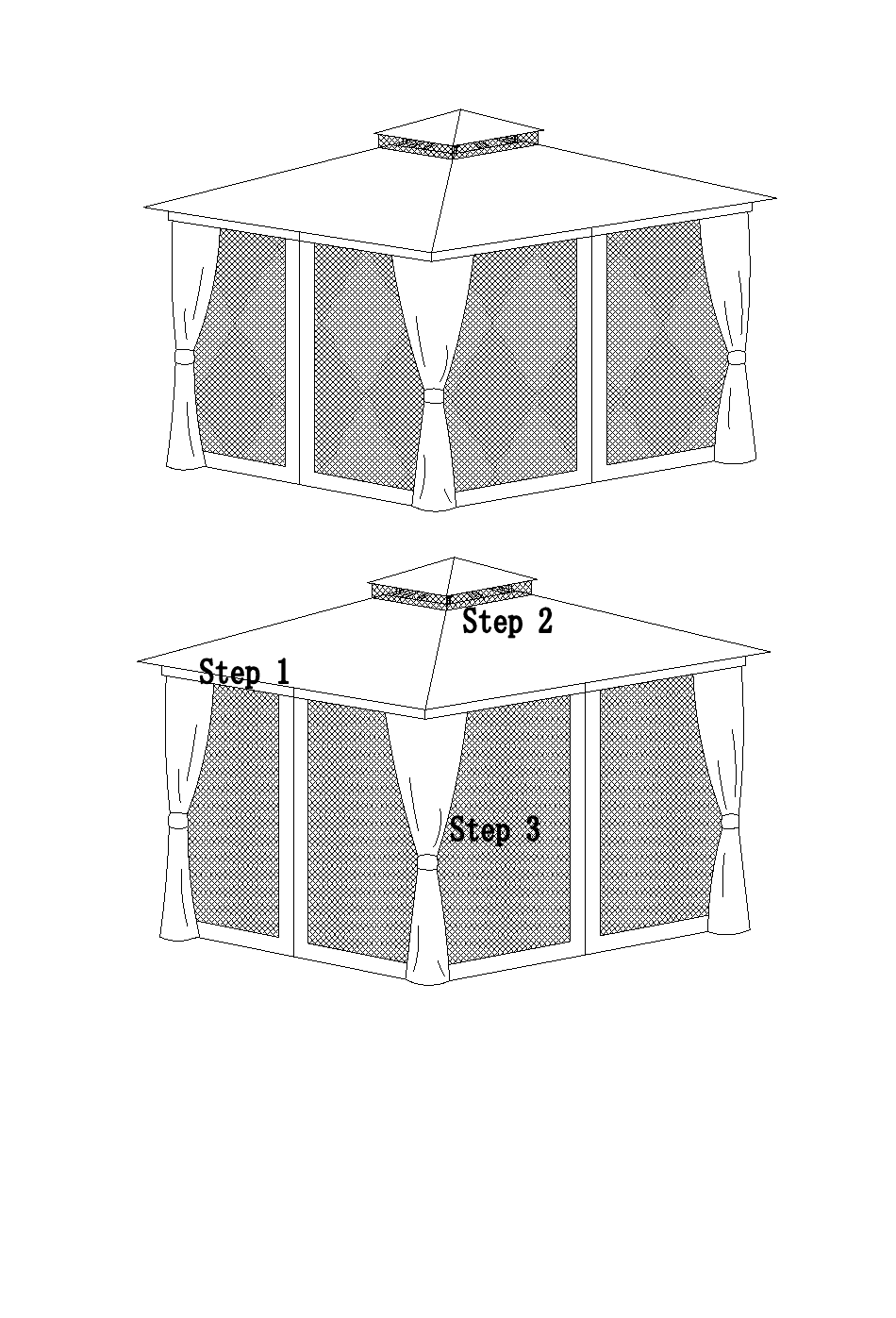

Item Identification: For ease of identification, all parts are labeled to correspond to the Step number in which
the part is used.
Advertisement
Table of Contents
Related Manuals for Sunjoy D-GZ339PAL-A
Summary of Contents for Sunjoy D-GZ339PAL-A
- Page 1 Assembly Instructions Item: D-GZ339PAL-A Our clear, easy-to-follow, step-by-step instructions will guide you through the project from start to finish. The final product will be a quality piece that will go together smoothly and give years of enjoyment. Tools Needed: Screwdriver & hammer & ladder (more than 2.5m/8.2feet).
- Page 2 Parts List Long Beam (1) Long Beam (2) Short Beam (1) Short Beam (2) Beam connector Corner Connector Reinforcement Slat Corner mandril connector (1) Corner mandril connector (2) Long slanting bar Short mid top bar Long mid top bar Big top connector Small top connector Pothook Small top pole...
- Page 3 Hardware Pack 1 M6X15 bolt 64 PCS M6 flat washer 64 PCS 144PCS Plastic Hook STEP 1 Fig.0: Install Plastic hook (DD) to the Beam A (B, C, D) as Fig.0 shows. 8pcs hooks and 10pcs hooks needed on each short beam and long beam separately.
- Page 4 STEP 2 Fig.5: Install the Pothook (O) onto the Big top connector (M); then insert the Long slanting bar (J), Short mid top bar (K) and Long mid top bar (L) into the Big top connector (M). (Here one person is needed to support the Top connector M).
- Page 5 STEP 3 Fig.10: Connect Post (Q) and Base (Q1) with bolt (AA) and flat washer (BB). Fig.11: Four people will be needed to lift the whole top while another attaches the Post (Q) with the bolt (GG) and flat washer (BB). (Note: 5 people are needed.) Fig.12: Fix one end of support bar (R) on post (Q) and another end on the Long (Short) beam with bolt (HH) and flat washer (BB).
- Page 6 IMPORTANT: 1. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Please read all instructions before assembly and use. 2. Some parts may contain sharp edges, wear protective gloves if necessary. At least five or more people are recommended for safe assembly.
- Page 7 Important: For technical assistance on assembly or replacement parts. Please call Sunjoy Industries at 1-866-578-6569 from 8:00 am EST to 8:00 pm PST or fax the replacement part form which is in the box to 1-740-283-3549 or Email customer.care@sunjoygroup.com for assistance.
