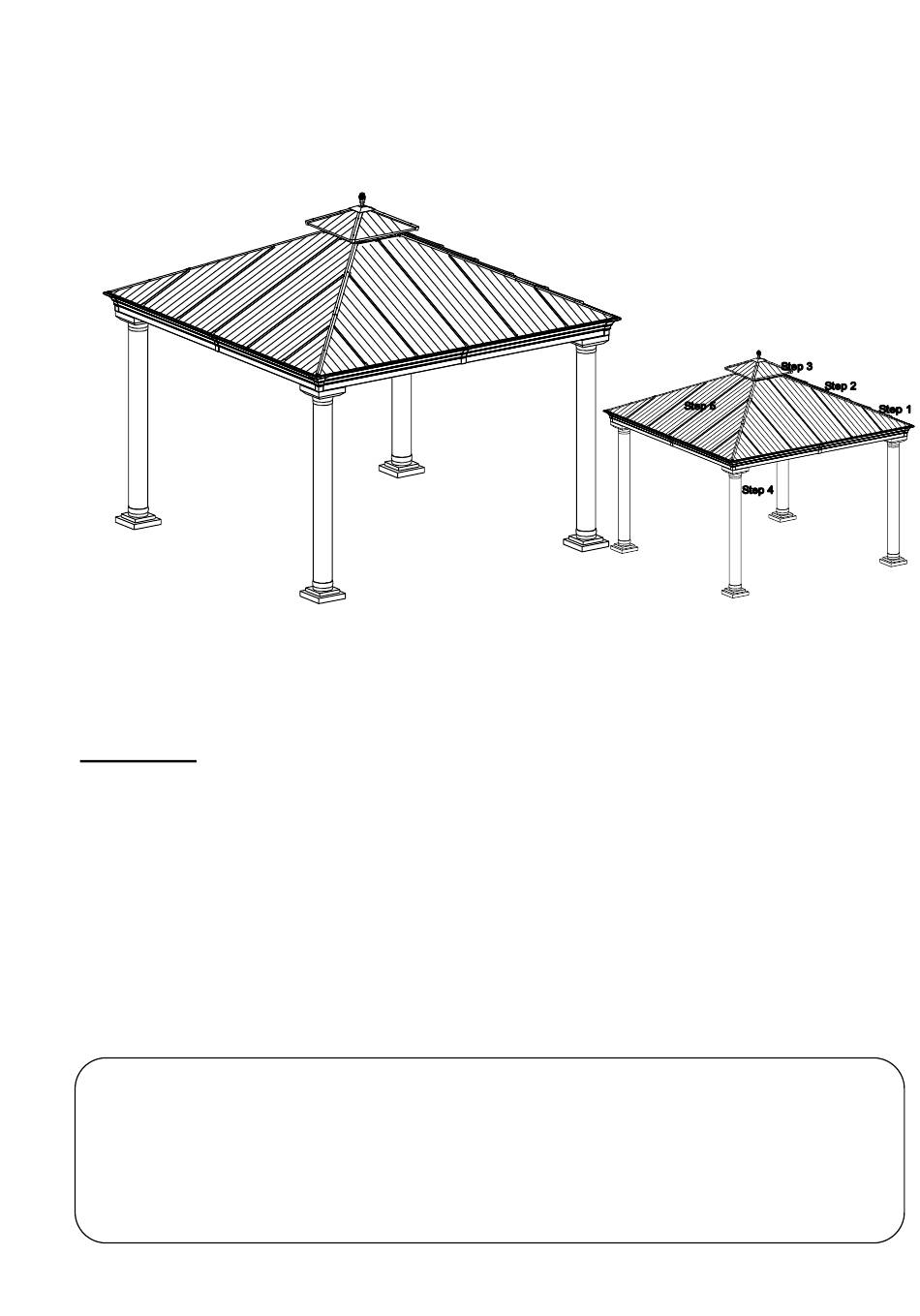

D-GZ844PCO-H (Black Top) / D-GZ844PCO-H1 (Faux Copper Top)
Congratulations on your purchase of our SUNJOY 12'x12' Hardtop Gazebo. Our clear, easy to
follow, step-by-step instructions will guide you through the assembly process from start to
finish.
WARNING:
● This unit is heavy. Do not assemble this item alone. 6-8 people are recommended for safe
assembly.
● Keep all children and pets away from assembly area. Children and pets should be supervised
when they are in the area of the Gazebo construction.
● Keep assembly area at least 6 feet from any obstruction such as a fence, garage, house,
overhanging branches, laundry line or electrical wires.
● Some parts may contain sharp edges. When assembling and using this product, basic safety
precautions should always be followed to reduce the risk of personal injury and damage to the
product. Please read all instructions before assembly and use.
● Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
● Assemble on level ground.
Please take time to read these instructions thoroughly and follow each step carefully for safe and easy
operation. Keep this manual for future reference.
For technical assistance on assembly or replacement parts, call Sunjoy Industries at 1-866-578-6569
from 8:30AM to 5:30PM EST, or email us at customer.care@sunjoygroup.com, or visit
www.sunjoyonline.com
Assembly Instructions
IMPORTANT
for assistance.

Advertisement

loading
Need help?

Need help?

Do you have a question about the D-GZ844PCO-H and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunjoy D-GZ844PCO-H

  • Page 1 Assembly Instructions D-GZ844PCO-H (Black Top) / D-GZ844PCO-H1 (Faux Copper Top) Congratulations on your purchase of our SUNJOY 12’x12’ Hardtop Gazebo. Our clear, easy to follow, step-by-step instructions will guide you through the assembly process from start to finish. WARNING: ● This unit is heavy. Do not assemble this item alone. 6-8 people are recommended for safe assembly.
  • Page 2: Parts List

    Parts List Description Qty. Picture Decorative Gutter 1 Decorative Gutter 2 Middle Beam Bottom Connector Oblique Beam Bottom Connector Oblique Beam Middle Beam Left Big Roof Long Support Right Big Roof Long Support Left Big Roof Short Support Right Big Roof Short Support Big Roof Up Frame Finial...
  • Page 3: Hardware Pack

    Big Roof Right Small Cover Cover Long Presser Cover Short Presser Hook Beam Hook Tabletting Big Roof Bottom Press Big Roof Up Press Post Base Stake Cover Top Base Post Cover Décor Ring Curtain Middle Connector Curtain Left Connector Curtain Right Connector Netting and Curtain Rods...
  • Page 4 Bolt M6X15 20 PCS Bolt M6X35 8 PCS Wrench 2 PCS Fig.1: Insert Decorative Gutter (1A) into Decorative Gutter (1B), tighten with Bolt (KK) and Flat Washer BB. (Fig.1) Note: Do not tighten the other side. Fig.2: Insert 1 of the rest Decorative Gutter (1A) into baffle on assembled Decorative Gutter (1B), tighten with Bolt (LL) and Flat Washer (BB) .(Fig.
  • Page 5 Fig.4-1: Lock Oblique Beam (2A) to Oblique Beam Bottom Connector (1D) by using Bolt (DD) and Flat Washer (BB). Fig.4-2: Lock Oblique Beam (2A) to Big Roof Up Frame (2G) by using Bolt (KK) and Flat Washer (BB). Fig.5-1: Lock Middle Beam (2B) to Middle Beam Bottom Connector (1C) by using Bolt (DD), Flat Washer (BB) and Nut (EE).
  • Page 6 Hardware Pack 3 Flat Washer M6 24 PCS Bolt M6X55 4 PCS Nut M6 4 PCS Bolt M6X40 8 PCS Bolt M6X15 12 PCS Fig.7-1: Lock Small Roof Oblique Beam (3E) to Small Roof Connector (3F) by using Bolt (DD), Flat Washer (BB) and Nut (EE).
  • Page 7 Fig.8-2: Lock Small Roof Cover Presser (3D) to Small Roof Oblique Beam (3E) by using Bolt (FF) and Flat Washer (BB). Fig.8-3: Assemble Small Roof Cover (3B) firstly, then screw Finial (3A) to Small Roof Connector (3F). Hardware Pack 4 Bolt M6X20 48 PCS Flat Washer M6...
  • Page 8 Fig.9: Attach Décor Ring (6F) to Stake Cover (6C) by using Bolt (KK) and Washer (BB). (Use the same process to set up Top Base (6D).) Fig.9-1: Insert Stake Cover (6C) to Post (6A), then using Bolt (AA), Spring Washer (JJ) and Flat Washer (BB) to lock Base (6B) to Post (6A).
  • Page 9 Fig.12-1: Screw Hook (4L) to Hook Beam (4K). Fig.12-2: Cover Big Roof Left & Right Cover on the Roof, then Put Big Roof Right Big Cover (4B) on Big Roof Left Big Cover (4A). Fig.12-3: Lock Big Roof Left Big Cover (4A) and Big Roof Right Big Cover (4B) to (2A) by using Bolt (KK) and Flat Washer (BB).
  • Page 10 Fig.14-1: Cover Big Roof Up Press (5B) firstly, don't lock. Fig.14-2: Cover Big Roof Bottom Press (5A), then lift up the lower edge of Big Roof Up Press (5B) and buckle the Big Roof Bottom Press (5A). Use Bolt (FF) and Flat Washer (BB) to lock tight. Fig.1: Lock Curtain Left Connector (T2) and Curtain Right Connector (T3) by using Bolt (KK) and Flat Washer (BB).
  • Page 11 Back Up Hardware Pack Bolt M6X20 4 PCS Flat Washer M6 20 PCS Bolt M6X20 2 PCS Bolt M6X55 2 PCS Nut M6 2 PCS Bolt M6X40 2 PCS Bolt M6X15 15 PCS Bolt M6X35 2 PCS Expansion Bolt M6X70 2 PCS Stake Φ8 X 250 2 PCS...
  • Page 12 IMPORTANT: 1. Keep all children and pets away from assembly area. Children and pets should be supervised while gazebo is being assembled. 2. The assembled gazebo should be located at least 6 feet (2 m) from any obstruction such as a fence, garage, and house, overhanging branches, laundry lines or electrical wires.
  • Page 13 This can be prevented if measure is taken to keep the product from oxidizing. Important: For technical assistance on assembly or replacement parts. Please call Sunjoy Industries at 1(866) 578-6569 from 8:30 AM to 5:30 PM EST Monday to Friday or fax the...
  • Page 14 GAZEBO NETTING AND CURTAIN ASSEMBLY INSTRUCTIONS Netting / Curatin is available individually Netting or Curtain Fig.1: Pull Netting and Curtain Rods (T4) out of the Curtain Middle Connector (T1). Fig.2: Pull Netting and Curtain Rods (T4) out of the Curtain Left Connector (T2) and Curtain Right Connector (T3).
  • Page 15 Fig.4: Insert round end of Netting and Curtain Rods (T4) to the Curtain Middle Connector (T1). (Curtain should hang on the inner side of the Netting and Curtain Rods, need to assembled the tube which has Curtain firstly.) Fig.5: Insert round end of Netting and Curtain Rods (T4) to the Curtain Left Connector (T2) and Curtain Right Connector (T3).
