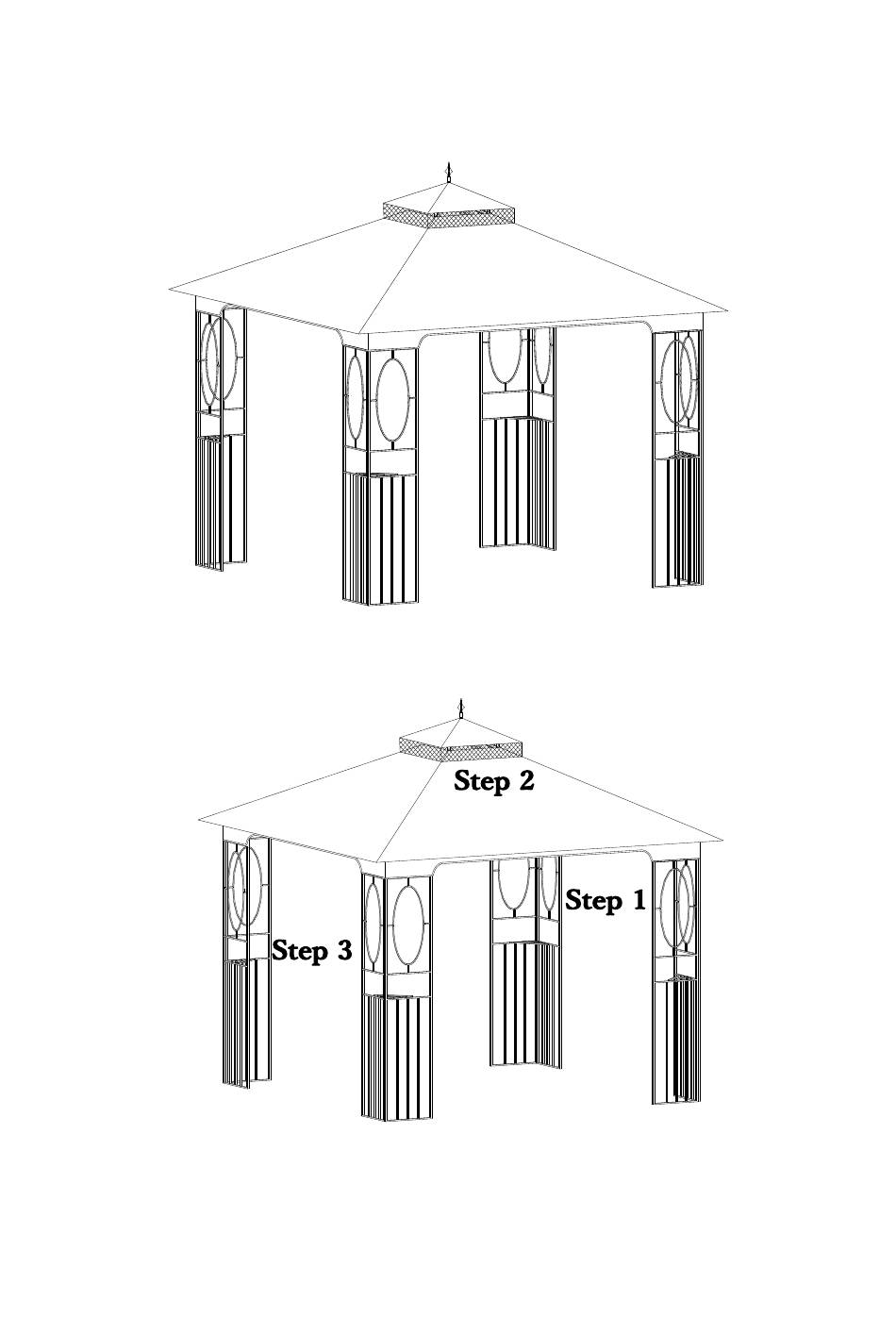

- Page 1 Assembly Instructions Item# D-GZ209PST-H 1 / 6...
- Page 2 Please read and understand this entire manual before attempting to assemble, operate or install the product. For technical assistance on assembly or replacement parts. Please call Sunjoy Industries at 1(866) 578-6569 from 8:00 am EST to 8:00 pm PST. WARNING: 1.When installing and assembling your gazebo, it is recommended that 2 or more adults are...
- Page 3 Parts List Description Part Quantity Image Finial Top connector Short oblique beam Connector Top Hook Middle beam Long oblique beam Oblique beam Beam Shelf Screen Big canopy Small canopy 3 / 6...
- Page 4 Fig.1: Insert Beam (I) into Screen (K). Fig.2: Fig.3: Fig.4: Insert Long oblique beam Insert Long oblique beam Insert Oblique beam (H) (G) into Oblique beam (H). (G) into the Connect tube (D). into Screen (K). 4 / 6...
- Page 5 Fig.6: Fig.7: Fig.5: Insert Middle beam (F) into Insert Short oblique beam Insert Middle beam (F) into (C) into Top connector (B). Beam (I). Put on the Big canopy Connector (D), then assemble the (L) and do not unfold first. Top hook (E) on the connector (D).
- Page 6 Important: Please do not return this product to the store. For technical assistance on assembly or replacement parts. Please call Sunjoy Industries at 1-866-578-6569 from 8:00 am EST to 8:00 pm PST or fax the replacement part form which is in the box to 1-740-283-3549 or Email customer.care@sunjoygroup.com for assistance.
