Assembly Instructions
D-GZ844PCO-I (Black Top) / D-GZ844PCO-I1 (Faux Copper Top)

Advertisement

loading
Need help?

Need help?

Do you have a question about the D-GZ844PCO-I1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunjoy D-GZ844PCO-I1

Summary of Contents for Sunjoy D-GZ844PCO-I1

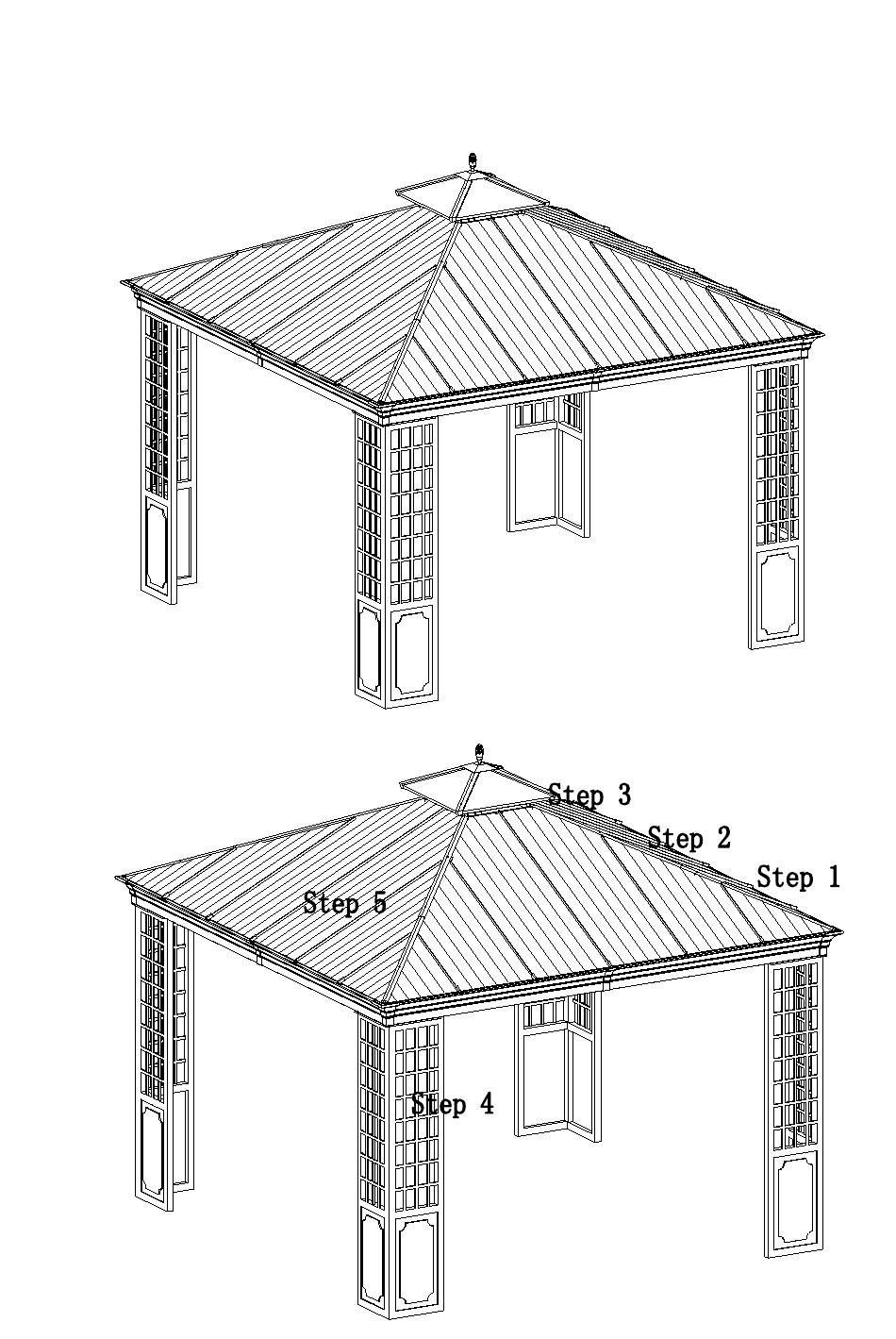

  • Page 1 Assembly Instructions D-GZ844PCO-I (Black Top) / D-GZ844PCO-I1 (Faux Copper Top)
  • Page 2 Congratulations on your purchase of our SUNJOY 12’x12’ Hardtop Gazebo. Our clear, easy to follow, step-by-step instructions will guide you through the assembly process from start to finish. WARNING: ● This unit is heavy. Do not assemble this item alone. 6-8 people are recommended for safe assembly.

  • Page 3: Parts List

    Parts List Description Qty. Picture Decorative Gutter 1 Decorative Gutter 2 Middle Beam Bottom Connector Oblique Beam Bottom Connector Oblique Beam Middle Beam Left Big Roof Long Support Right Big Roof Long Support Left Big Roof Short Support Right Big Roof Short Support Big Roof Up Frame Finial Small Roof Cover...

  • Page 4: Hardware Pack

    Big Roof Right Small Cover Cover Long Presser Cover Short Presser Hook Beam Hook Tabletting Big Roof Bottom Press Big Roof Up Press Big Screen Small Screen Top Base Post Cover Curtain Middle Connector Curtain Left Connector Curtain Right Connector Netting and Curtain Rods Hardware Pack 1...
  • Page 5 Bolt M6X15 20 PCS Bolt M6X35 8 PCS Wrench 2 PCS Fig.1: Insert Decorative Gutter (1A) into Decorative Gutter (1B), tighten with Bolt (KK) and Flat Washer BB. (Fig.1) Note: Do not tighten the other side. Fig.2: Insert 1 of the rest Decorative Gutter (1A) into baffle on assembled Decorative Gutter (1B), tighten with Bolt (LL) and Flat Washer (BB) .(Fig.
  • Page 6 Fig.4-1: Lock Oblique Beam (2A) to Oblique Beam Bottom Connector (1D) by using Bolt (DD) and Flat Washer (BB). Fig.4-2: Lock Oblique Beam (2A) to Big Roof Up Frame (2G) by using Bolt (KK) and Flat Washer (BB). Fig.5-1: Lock Middle Beam (2B) to Middle Beam Bottom Connector (1C) by using Bolt (DD), Flat Washer (BB) and Nut (EE).
  • Page 7 Hardware Pack 3 Flat Washer M6 24 PCS Bolt M6X55 4 PCS Nut M6 4 PCS Bolt M6X40 8 PCS Bolt M6X15 12 PCS Fig.7-1: Lock Small Roof Oblique Beam (3E) to Small Roof Connector (3F) by using Bolt (DD), Flat Washer (BB) and Nut (EE).
  • Page 8 Fig.8-2: Lock Small Roof Cover Presser (3D) to Small Roof Oblique Beam (3E) by using Bolt (FF) and Flat Washer (BB). Fig.8-3: Assemble Small Roof Cover (3B) firstly, then screw Finial (3A) to Small Roof Connector (3F). Hardware Pack 4 Bolt M6X20 20 PCS Flat Washer M6...
  • Page 9 Fig.9-1: Lock Screen (6B) to (6A) by using Bolt (MM) and Washer (BB). Fig.9-2: Attach Top Base (6D) to Screen (6A/6B) by using Bolt (KK) and Washer (BB), lock tightly. Fig.10-1: Lift up assembled big roof, then using Bolt (AA) and Flat Washer (BB) to lock Decorative Gutter 1A/1B to Top Base (6D).
  • Page 10 Fig.12-1: Screw Hook (4L) to Hook Beam (4K). Fig.12-2: Cover Big Roof Left & Right Cover on the Roof, then Put Big Roof Right Big Cover (4B) on Big Roof Left Big Cover (4A). Fig.12-3: Lock Big Roof Left Big Cover (4A) and Big Roof Right Big Cover (4B) to (2A) by using Bolt (KK) and Flat Washer (BB).
  • Page 11 Fig.14-1: Cover Big Roof Up Press (5B) firstly, don't lock. Fig.14-2: Cover Big Roof Bottom Press (5A), then lift up the lower edge of Big Roof Up Press (5B) and buckle the Big Roof Bottom Press (5A). Use Bolt (FF) and Flat Washer (BB) to lock tight. Fig.1: Lock Curtain Left Connector (T2) and Curtain Right Connector (T3) by using Bolt (KK) and Flat Washer (BB).
  • Page 12 Back Up Hardware Pack Bolt M6X20 4 PCS Flat Washer M6 20 PCS Bolt M6X20 2 PCS Bolt M6X55 2 PCS Nut M6 2 PCS Bolt M6X40 2 PCS Bolt M6X15 15 PCS Bolt M6X35 2 PCS Expansion Bolt M6X70 2 PCS Stake Φ8 X 250 2 PCS...
  • Page 13 IMPORTANT 1. Keep all children and pets away from assembly area. Children and pets should be supervised while gazebo is being assembled. 2. The assembled gazebo should be located at least 6 feet (2 m) from any obstruction such as a fence, garage, and house, overhanging branches, laundry lines or electrical wires.
  • Page 14 Important: Please do not return this product to the store. For technical assistance on assembly or replacement parts. Please call Sunjoy Industries at 1-866-578-6569 from 8:00 am EST to 8:00 pm PST or fax the replacement part form which is in the box to 1-740-283-3549 or Email customer.care@sunjoygroup.com for assistance.
  • Page 15 GAZEBO NETTING AND CURTAIN ASSEMBLY INSTRUCTIONS Netting / Curatin is available individually Netting or Curtain Fig.1: Pull Netting and Curtain Rods (T4) out of the Curtain Middle Connector (T1). Fig.2: Pull Netting and Curtain Rods (T4) out of the Curtain Left Connector (T2) and Curtain Right Connector (T3).
  • Page 16 Fig.4: Insert round end of Netting and Curtain Rods (T4) to the Curtain Middle Connector (T1). (Curtain should hang on the inner side of the Netting and Curtain Rods, need to assembled the tube which has Curtain firstly.) Fig.5: Insert round end of Netting and Curtain Rods (T4) to the Curtain Left Connector (T2) and Curtain Right Connector (T3).

This manual is also suitable for:

D-gz844pco-i
