Assembly Instructions
Item#D-GZ399PST-J

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-GZ399PST-J and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunjoy D-GZ399PST-J

  • Page 1 Assembly Instructions Item#D-GZ399PST-J...
  • Page 2 Parts List Post Base protector Post base Long panel (1) Long panel (2) Short panel (1) Short panel (2) Slanting bar Short mid top bar Long mid top bar Slanting bar Connector Mid top bar connector Conner decor block Small top connector Small top bar (1) Small top bar (2) Pothook...
  • Page 3 Long netting bar Short netting bar Top Finial Small canopy Large canopy Wall Mosquito netting Hardware Pack 1 M6*15 bolt 32PCS M6 flat washer 64 PCS M6*15 bolt 16 PCS M6*25 bolt 16 PCS M6 wrench 1 PC...

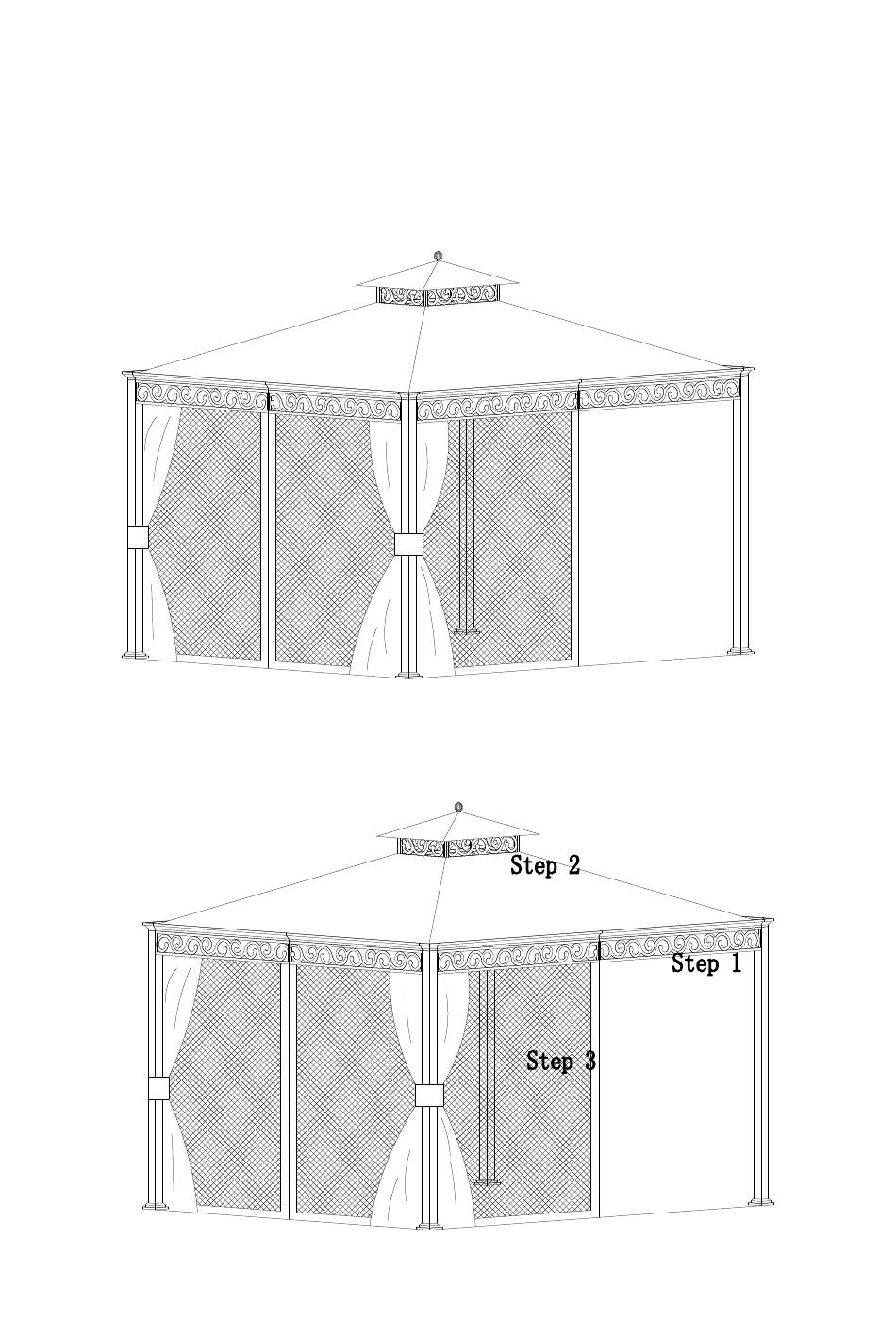

  • Page 4 Fig.1: Fit the Base protector (B) onto the Post (A), connect the Post base (C) and post (A) by using bolt (AA) and flat washer (BB). Fig.2: Fix the Conner decor block (J) onto the top of the post (A) by using bolt (AA) and flat washer (BB). Fig.3: Insert the Long panel 1 (D1) into Long panel 2 (D2), fix them by using bolt (CC) and flat washer (BB).
  • Page 5 Fig.7: Fix Small panel of top frame (N2) to Long panel of top frame (N1) by using bolt (DD) and washer (BB). Fig.8-1: Insert Slanting bar (F) to Slanting bar Connector(H) Fig.8-2: Fix Slanting bar (F) to the top of Post (A) by using bolt (AA) and washer (BB). Fig.9: Attach Slanting bar Connector (H) to the corner of the top frame (N1 &...
  • Page 6 Fig.16: Spread the Large canopy (R), hang the pothooks of the large canopy into the holes on the panels. Fig.17: Hang Mosquito netting (T) on the inside netting bar (O1 & O2) by using the Plastic ring (FF). Wall (S) on the outside.
  • Page 7 IMPORTANT: 1. Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of gazebo construction. 2. The area for assembly should not be less than 6 feet from any obstruction such as fence, garage, house, overhanging branches, laundry line or electrical wires.
  • Page 8 Please take time to read these instructions thoroughly and follow each step carefully for safe and easy operation. Keep this manual for future reference. For technical assistance on assembly or replacement parts, call Sunjoy Industries at 1-866-578-6569 from 8:30AM to 5:30PM EST, or email us at customer.care@sunjoygroup.com, or visit www.sunjoyonline.com for assistance.
