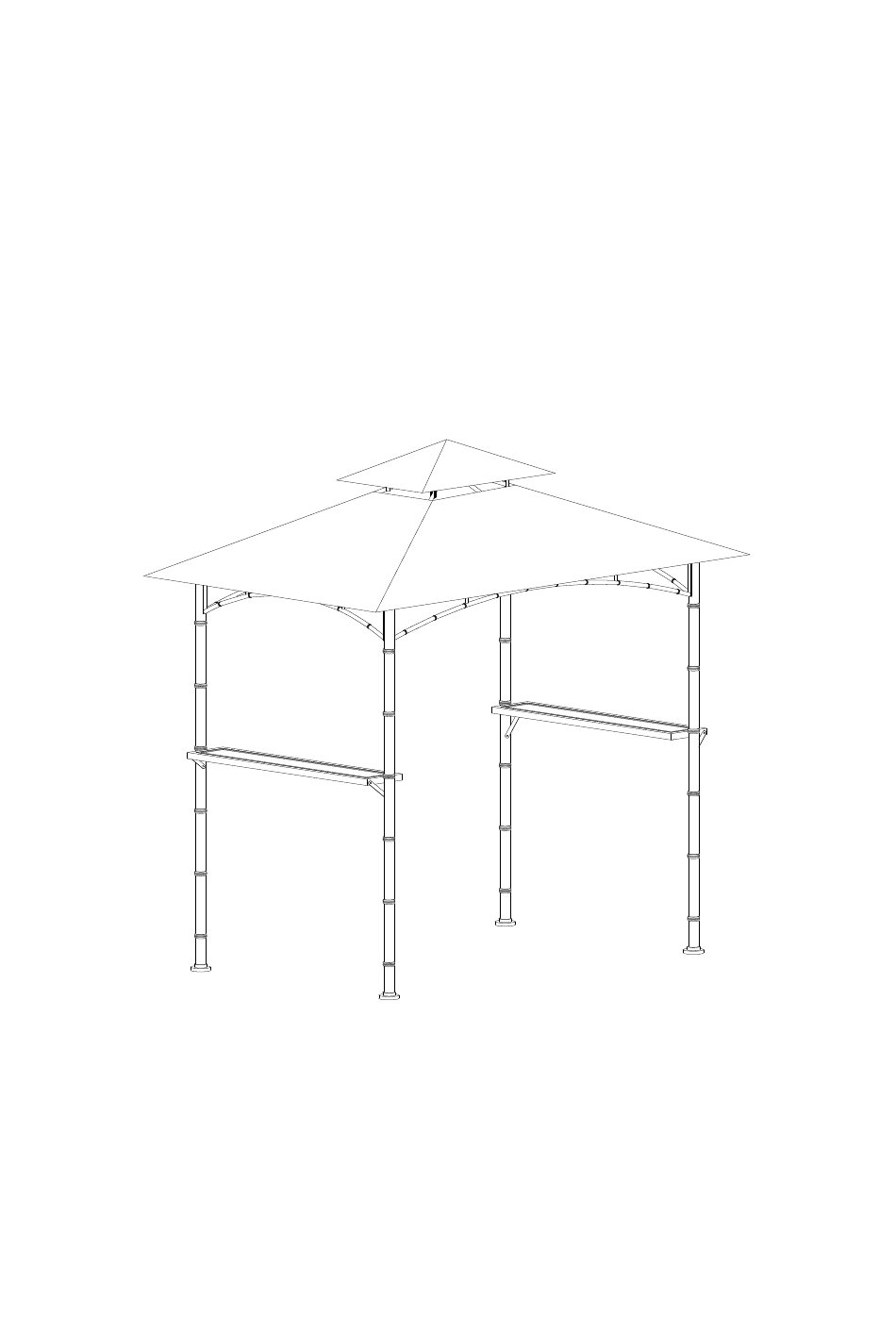

- Page 1 Vendor code: D-GZ238PST-11K Thank you for your purchase! We are pleased that you have chosen Sunjoy for your outdoor furniture purchase. Our clear, easy to follow, step by step instructions will guide you through the project from start to finish.
- Page 2 Safety information •Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of the production construction. •This package contains small items and plastic bags that should be kept away from children. •Proper placement of your product is essential.
- Page 3 1-866-578-6569 for help. • Do not assemble this item alone. At least or more people are recommended for safe assembly. 3 / 8...
- Page 4 Parts List Description Part# Label Image Pole 1 GZ023811K01 Pole 2 GZ023811K02 Long screen GZ023811K03 Small screen GZ023811K04 Corner top beam GZ023811K05 Big top connector GZ023811K06 Small top connector GZ023811K07 Small top bar GZ023811K08 Shelf GZ023811K09 Supporter GZ023811K10 Hook GZ023811K11 Small canopy GZ023811K12 Big canopy...
- Page 5 Hardware Pack 1 Description Part# Label Image M6X20 Bolt BM06020C M6 Flat washer UD06C M6X40 Bolt SM06040C M6 Nut LM06C M6 Wrench W10D Fig.1: Attach Screen C (B) to Pole A1 (A2) by Bolt (AA) and Flat washer (BB). Fig.2: Attach Hook (J) to Big top connector (E). Then insert Corner top beam (D) into Big top connector (E). Fig.3: Connect Corner top beam (D) and Pole 2(A2) by Bolt (CC), Flat washer (BB), and Nut (DD).
- Page 6 Fig.4: Insert Small top bar (G) into Small top connector (F). Fig.5-1: First put the big canopy (L) onto the top of the gazebo (Do not fully spread). Then connect Small top bar (G) and Corner top beam (D) by Bolt (CC), Flat washer (BB), and Nut (DD). Fig.5-2: Take off the back cover of LED light (M), and match batteries into sockets.
- Page 7 Fig.6: Attach Supporter (I) to Shelf (H) by Bolt (EE) and Flat washer (BB). Fig.7: Attach Shelf (H) to Pole A1 (A2) by EE and Flat washer (BB). Fig.8: Fix Supporter (I) to Pole A1 (A2), and then insert the pin on the pole into the hole at the end of the Supporter (I).
- Page 8 Please do not return this product to the store. For technical assistance or replacement parts, please call Sunjoy Group at 1 (866) 578-6569 between 8:00 AM EST and 8:00 PM PST. You may fax your replacement parts form (which is included in the packaging) to 1 (740) 283-3549 or email to customer.care@sunjoygroup.com...
