- Page 1 CDP6-32 Motor Circuit Breaker User Manual Standard: IEC60947-2 GB/T 14048.2 IEC60947-4-1 GB/T 14048.4 □Please carefully read this User Manual before installing and operating the product, and keep this manual properly for future reference Internal...
- Page 2 Safety Notice Please carefully read this manual before the installation, operation, run, maintenance, and inspection of the product, and install and operate this product properly according to the contents of the instructions. Danger: ⚫ It is prohibited to operate the circuit breaker with your wet hands; ⚫...

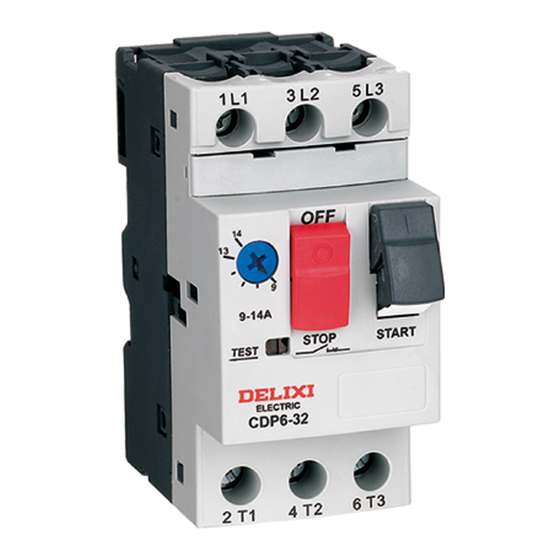

- Page 3 About CDP6-32 ● Panel Introduction Inlet terminal Setting current range Top aux. contact protective cover Setting knob Start button 10. Product specification Lock ring 11. Cerfication mark and applicable standard Stop button 12. Rated voltage, rated insulation voltage, screw Outlet terminal...
- Page 4 Normal Operation, Installation, and Transport Conditions ● Normal Operation and Installation Conditions (1) The ambient air temperature does not exceed +40℃, and is not below -5℃, and the mean temperature within 24h does not exceed +35℃. (2) The altitude at the installation site does not exceed 2000m; (3) The relative humidity of atmosphere air does not exceed 50% at the maximum ambient temperature +40℃;...
- Page 5 Outline and Installation Dimensions 35mm Clip rail Installation and Disassembly Method ● Check that the operating voltage, rated current, frequency and characteristics of the product meet the working requirements before installation; ● It is prohibited to operate the damaged for poorly assembled circuit breaker; ●...
- Page 6 Install Disassemble Accessories installation diagram Internal...
- Page 7 Mounting Max. installated Model Name Spec. position quantity Instantaneous aux. contact 2NO, 1NO+1NC Front (front mounted) Instantaneous aux. contact 2NO, 1NO+1NC Left side (side mounted) 110-150V, 220-240V, 380-400V, Undervoltage release Right side 415V 110-150V, 220-240V, 380-400V, Shunt release Right side 415V Shunt, undervoltage releases Install...
- Page 8 Instantaneous aux. contact Install Disassemble 1. When the circuit breaker is in the state, hange 1. Press the lower hook of the auxiliary contact; the upper hook of the aux. contact onto hte circuit 2. Rotate the auxiliary contact outwards; breaker, align the connecting rod with the hook of the 3.
- Page 9 AE11 or AE20 Installation Installation Pry the top auxiliary protective cover upwards; Lean one side of the top auxiliary cover against the circuit breaker flatly and firmly; Algin with the installation position, and insert it. Internal...
- Page 10 Debugging and Operation (1) Check whether the setting current range of the motor circuit breaker is consistent with the rated operating current of the motor, and replace it if inconsistent; (2) Confirm that the motor circuit breaker has a good appearance without any abnormal noise, and operate it manually several times and confirm that the operating mechanism works flexibly and reliably without blockage before use.
- Page 11 Company’s commitment Under the premise that users follow the use and storage conditions and the product are well sealed, within 36 months from the production date, our company will provide repair and replacement service free of charge for any damage or abnormal operation due to poor manufacture quality. A paid repair will be provided if the warranty period expires.
- Page 12 DELIXI ELECTRIC LTD Standard: GB/T 14048.2 GB/T 14048.4 Inspector: Check 06 Date of production: See label on inner box Address: Delixi High-Tech Industrial Park, Liushi Town, Yueqing City, Zhejiang P.C: 325604 Tel: (86-577) 6177 8888 Fax: (86-577) 6177 8000 Customer Service Hotline: 400-826-8008 www.delixi-electric.com...
