- Page 1 DZ47L NAVIGATOR Residual Current Operated Circuit-Breaker Series User Manual Please carefully read this User Manual before installing and operating the product, and keep this manual properly for future reference...
- Page 2 Safety Notice Please carefully read this instruction before the installation, operation, run, maintenance, and inspection, and follow the contents of the instruction to properly install and operate this product. Danger: ⚫ Do not operate the residual current operated circuit breaker with your wet hands; ⚫...

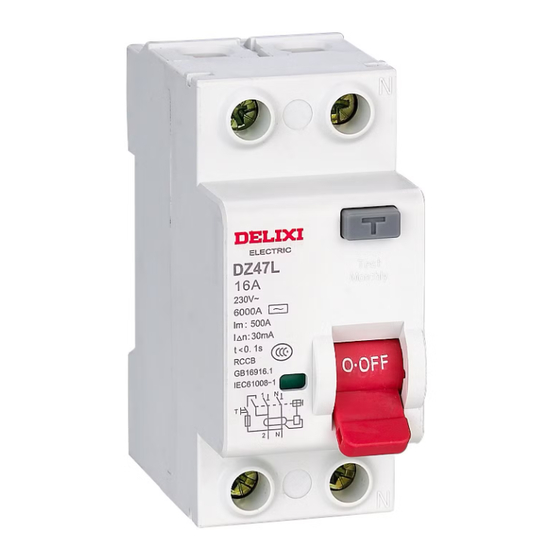

- Page 3 About DZ47L Residual Current Operated Circuit Breaker ● Panel Introduciton Legends: 1 Load end 2 Wiring diagram 3 Standard: GB/T 16916.1/IEC 61008-1 4 Operating time: t<0.1s 5 Rated residual operating current IΔn: 30mA, 100mA, 300mA 6 Rated making and breaking capacity Im: In<63A, 500A; In≥63A, 10In 7 Rated limit short circuit current IΔc: 6000A 8 Rated voltage: 230V/2P, 400V/4P 9 Rated current: 63 type: 10A, 16A, 20A, 25A, 32A, 40A, 63A;...
- Page 4 Normal Operation, Installation and Transport Conditions ●Normal Operation and Installation Conditions (1) The ambient air temperature does not exceed +40℃ and is not below -5℃, and the average value within 24 hours does not exceed +35℃; (2) The altitude of the installation site does not exceed 2000m; (3) The relative humidity of the atmosphere does not exceed 50% at the highest ambient temperature +40℃, and a higher relative humidity is allowed at lower temperatures, such as 90% at 20℃.
- Page 5 DZ47L-63: DZ47L-100:...
- Page 6 Debugging and Operation ● Before installing the residual current operated circuit breaker, (1) check whether the technical parameters on the nameplate meet the operation requirements; (2) power on and off the product three times for reliable operation or blockage. ● Before installing the residual current operated circuit breaker, (1) Connect the “N”...
- Page 7 Table 2 Maintenance and Servce Item Content No dust or condensation; clean if necessary Appearance No damage No color changes on the housing or wiring terminal Tighten it according to the tightening torque 2.0N.m Wiring terminal connection without looseness Handle ON/OFF operation It shall be operated flexibly Company Commitment Under the condition that users follow the use and storage conditions and the product are well sealed, within 36...
- Page 8 Inspector: Check 06 DELIXI ELECTRIC LTD Production date: See label on inner box DELIXI ELECTRIC LTD Address: Delixi High-Tech Industrial Park, Liushi Town, Leqing City, Zhejiang P/C: 325604 Tel: (86-577) 6177 8888 Fax: (86-577) 6177 8000 Customer Service hotline: 400-826-8008 www.delixi-electric.com...
