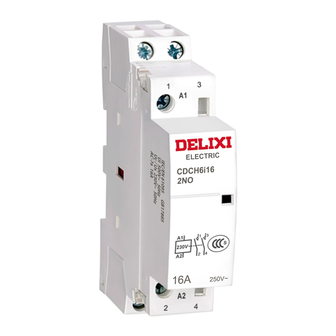

- Page 1 CDCH6i Household AC Contactor User Manual □ Please carefully read this User Manual before installing and operating the product, and keep this manual properly for future reference Internal...
- Page 2 CDCH6i Household AC Contactor User Manual Safety Notice Please carefully read this manual before the installation, operation, run, maintenance, and inspection of the product, and install and operate this product properly according to the contents of the instructions. Danger: ...
- Page 3 1 Purpose and Scope of Application 1.1 Purpose CDCH6i series Household AC Contactor (hereinafter referred to contactor is a control apparatus used to remotely connect and disconnect the non-inductive load or low inductive load, electric resistance furnace, household appliances and similar low inductive load, and household motor.
- Page 4 3 Main Technical Parameters 3.1 Technical Features The common use category of the contactor and its code are listed in Table 1 Table 1 Use category and its code Use category Typical application AC-7a Household apparatus and similar low inductive load AC-7b Household motor load * *AC-7b category can be used for occasional and dense power on/off (inching) or reverse braking reverse dierection...
- Page 5 3.3 Rated working system 3.3.1 8h working system This working system is the basic working system, and the contactor’s resistive current Ith of the free air is determined by this working system. 3.3.2 Intermittent cycle working system The rated operating frequency is 30 times / h and the load factor is 40% under this working system of the contactor. 3.4 Action (operation) conditions Within the range of ambient air temperature -5℃...
- Page 6 5 Outline and Installation Dimensions Internal...
- Page 7 6 Installation, Operation and Maintenance 6.1 Installation 6.1.1 Before installation, check whether the actual use application complies with the purpose and slope of application, technical parameters and its normal working conditions and installation conditions of the contactor. 6.1.2 When installation, pull the contactor stop downwards, put the contactor on the mounting rail, and push the stop upwards until the contact is fixed on the mounting rail without any looseness or falling off.
- Page 8 Standard: GB/T 17885 DELIXI ELECTRIC LTD Inspector: Check 06 Date of production: See label on inner box DELIXI ELECTRIC LTD Address: Delixi High-Tech Industrial Park, Liushi Town, Yueqing City, Zhejiang P.C.: 325604 Tel: (86-577) 61778888 Fax: (86-577) 61778000 Customer Service Hotline: 400-826-8008 www.delixi-electric.com...
