- Page 1 DZ47X User Manual □Please carefully read this User Manual before installing and operating the product, and keep this manual properly for future reference.
- Page 2 Table of Contents 1 Main Purposes and Scope of Application………………… ................. ..1 2 Product Feature, Model and Its Meanings………………… ................…..1 2.1 Product features……………………………………… ................1 2.2 Product model and its meanings…………………… ................…1 3 Normal Working Conditions and Installation Conditions..................1 4 Normal Storage and Transportation Conditions………………….

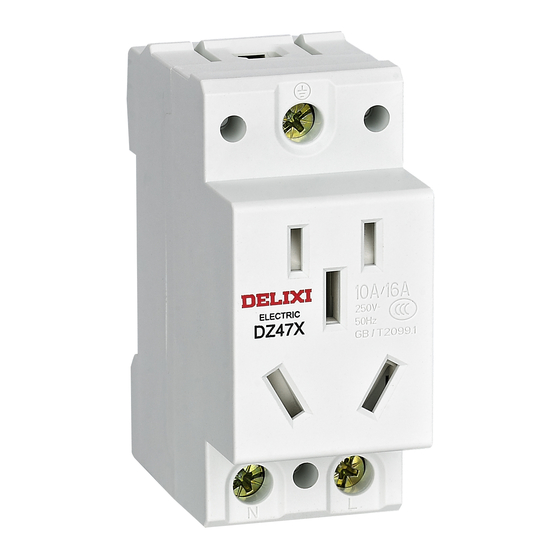

- Page 3 1 Main Purposes and Scope of Application DZ47X series frame socket is primarily used in the AC 50Hz circuit with the rated operating volage 250V/440V and with the rated operating current of not greater than 25A. 2 Product Feature, Model and Its Meanings 2.1 Product features...
- Page 4 4 Normal Storage and Transportation Conditions a) The lower limit of temperature shall not be less than -25° C, and the upper limit shall not exceed +55° C; b) Relative humidity (at 25° C) does not exceed 95%; c) Please handle the product gently during transportation, and do not upside it down and prevent severe collision. 5 Basic Specifications and Parameters Basic specifications and parameters see Table 1.
- Page 5 Fig. 1-b 2P + Earthing 10A, 16A Fig. 1-c 2P/2P + Earthing 10A, 10/16A Fig. 1-d 3P + Earthing 16A Fig. 1-e 3P + Earthing 25A...
- Page 6 7 Installation and Operation (Maintenance) a) When installing this series of sockets, please check whether the basic technical parameters marked on the housing meet the application requirements; b) This series of sockets are of the rail mounted type. The installation method is described as follows: Fir 3P + Earthing 25A product, in order prevent unsafe hidden dangers caused by mis-insertion, the following installation method shall be available: Loosen the screw located at the center of the socket, and take the protective cover, as shown in Fig.
- Page 7 Standard: GB/T2099.1 Inspector: Check 50 DELIXI ELECTRIC LTD Date of production: See the label on the inner box Address: Delixi High-Tech Industrial Park, Liush Town, Yueqing City, Zhejiang Province P.C.: 325604 Tel: (86-577) 61778888 Fax: (86-577) 61778000 Customer service hotline: 400-826-8008 www.delixi-electric.com...
