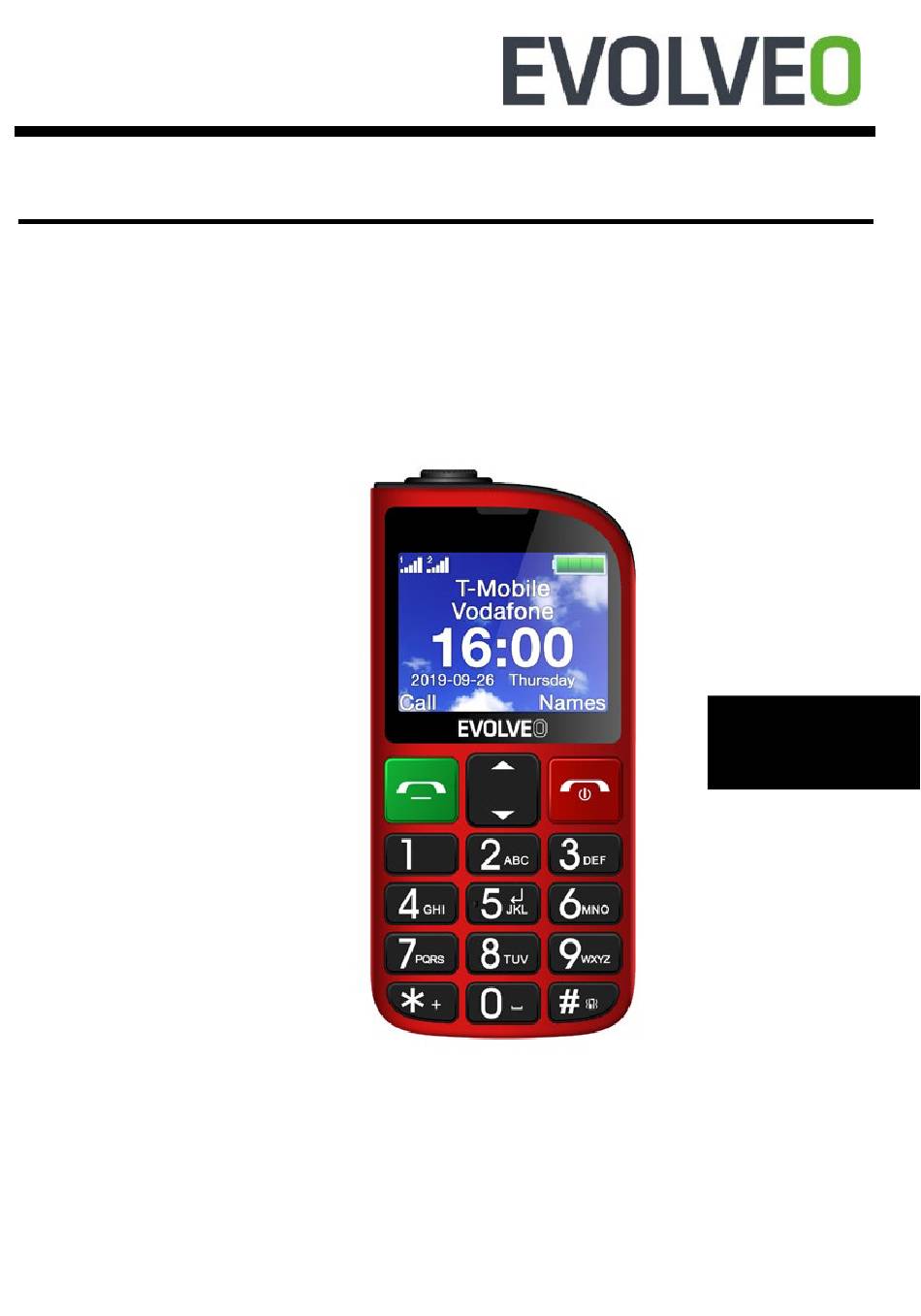

- Page 1 MANUAL MODEL VERSION / DATE EasyPhone FL l . / 8. 1. 2024...
-
Page 2: Table Of Contents
Table of Contents IMPORTANT NOTICE .....3 PHONE DESCRIPTION ....5 CALLING ........13 REPORT ........13 CONTACTS ........14 CALL RECORDS ......15 MULTIMEDIA ....... 15 SOS SETTINGS ......19 SETTINGS ........21 LIST OF FILES ......24 APPLICATIONS ......25 A MAGNIFIER ...... -
Page 3: Important Notice
Dear Customer, Thank you for choosing an EVOLVEO mobile phone. IMPORTANT NOTICE If you are driving a motor vehicle, use a headset with a microphone when making calls. In urgent situations, park your car on the side of the road so you can continue an important call. - Page 4 your dealer or service provider for help. Do not connect your phone to the charger unless the battery is inserted. Protect your phone from the effects of magnetic fields. Do not bring it close to magnetic elements such as credit cards. Protect from liquids.
-
Page 5: Phone Description
PHONE DESCRIPTION... - Page 7 Flashlight USB C connector Handset Charging cradle Call button Volume + call Volume - button Numeric FM radio switch button 'Up' button Flashlight switch 'Down' Unlock button, menu call 'Asterisk' Lock button...
- Page 8 The 'Cross' Speaker button Hole 'SOS' button strap Headphone Camera connector...
- Page 9 FEATURES PUSHBUTTO Press this button to start the function, which will immediately appear in the Call button bottom left corner of the display. Press this button to start a call to the selected phone number; Press to answer an incoming call; Press the button in standby mode to view your call history.
- Page 10 standby button longer to turn off the phone. Switching on your phone: Press and hold the button for a longer time to switch the phone back on. Press this button to return to standby mode. Press this button to end the call. Press them to scroll through the list of 'Down' functions;...
- Page 11 enter the number dialed and in edit buttons mode, they allow you to enter numbers and letters; Press the * button twice in standby mode to enter the "+" symbol for button international calls. Press the button to change the way # button you enter text.
- Page 12 SIM card/TF card slot location, see picture below...
-
Page 13: Calling
CALLING In standby mode, enter the phone number and press the "call" button to start the call. Press the End Call button to end or reject an incoming call. REPORT When you enter the menu: Write a message • Inbox messages •... -
Page 14: Contacts
Message capacity is determined by the maximum storage capacity of the phone and external SIM cards. You can check the memory status of your SIM card or phone. CONTACTS Up to 250 phone numbers can be stored in the phonebook, the capacity of the contacts on the SIM card depends on the phone operator, please contact your phone operator for information. -
Page 15: Call Records
Select "Options/Further/Fast Dial" and set the numbers 2-9: It is possible to set and store 8 speed dial numbers corresponding to numbers 2-9. After activating Speed Dial in standby mode, press and hold one of the 8 alphanumeric buttons and your phone will dial the corresponding phone number from the speed dial list. - Page 16 Press the 'Up' button button to take photos with the built-in camera. You can also use the same button to adjust the camera settings. If you run out of memory, delete some pictures or other files in the "File Manager". The image can be viewed in the camera options and can be edited using "Camera Settings"...
-
Page 17: Video Player
3. MP3 The following legend will appear on the screen: List, Back. The list will show the names in stock that you have uploaded. Select one of them to enter the list: Select an option from the detailed list to play, update the list or change settings. - Page 18 5. FM radio You can select the following options: Press the FM radio switch to turn on or off. Press the Volume button to adjust the playback volume. Use the Up-Down buttons to start the automatic station search Station list: displays a list of manually or automatically searched stations.
-
Page 19: Photo Gallery
6. Recording equipment Enter the voice recorder, press the Options button to select New Recording, and you can choose one of the options below: New entry, Play, List. 7. Photo gallery With this function, you can select any image and press the call button to select the following options: Browse, Rename, Delete, etc. - Page 20 number to numbers 1-5. You can also set the wording of the message. Procedure: If the SOS function is switched on, a longer hold on the "SOS" button will activate the SOS function, which will proceed as follows: A loud alarm will sound and an SMS will be sent to all emergency numbers with the following content: "Please help.".
-
Page 21: Call Settings
SETTINGS 1. Call settings To set up a dual SIM card : With this function you can adjust the SIM card mode "Two SIM cards", "SIM card 1 only ", "SIM card 2 only ", "Airplane mode". Call forwarding: It includes five different settings - Forward always, Forward when unavailable, Forward when no answer, Forward when busy and... -
Page 22: Phone Settings
settings of this feature. Call blocking: Blocking numbers you dial yourself or that call you. Advanced settings: Automatic redial When you activate this feature, your phone will automatically redial the number every time a call is dropped or rejected. Warning: Some features require... -
Page 23: Restore Factory Settings
3. Display This function adjusts the delay before the display turns off, the contrast and the backlight time. The individual values are changed using the * and # keys. 4. Security To protect your personal data, you can set up SIM card or phone security, a list of unwanted numbers, etc. -
Page 24: List Of Files
and activate it. The following options are available: Normal Quiet Meetings Inside Outside LIST OF FILES The file manager manages the files on your phone and on the external memory card. In this menu you can manage images, MP3 files and other folders of this menu. -
Page 25: Applications
APPLICATIONS 1. Calendar In the calendar, you can view the date, add an event, delete an event, etc. 2. Calculator This feature offers the usual calculator functions including plus, minus, multiplication and division. 3. Alarm clock The alarm can be set to 3 alarms with repeat, snooze or alert type. -
Page 26: A Magnifier
stopping, they can be reset with the numeric button 5. 5. Bluetooth You can turn Bluetooth off or on. Bluetooth: You can turn it on and then find another Bluetooth device, pair your phone with another device and use it together. - Page 27 EVOLVEO products (more at www.evolveo.com), otherwise you may damage your mobile phone and lose your warranty. Disposal: The crossed-out container symbol on the product, in the accompanying documentation or on the packaging means that in EU countries,...
-
Page 28: Declaration Of Conformity
Do not dispose of these products in unsorted municipal waste. DECLARATION OF CONFORMITY The company Abacus Electric, s.r.o. hereby declares that the EVOLVEO EasyPhone FL meets the requirements of the standards and regulations that are relevant for this type of device. - Page 29 The full text of the Declaration of Conformity can be found at http://ftp.evolveo.com/ce/ Importer / Producer Abacus Electric, s.r.o. Planá 2, 370 01, Czech Republic Made in China Copyright © Abacus Electric, s.r.o. www.evolveo.com www.facebook.com/EvolveoCZ All rights reserved.
- Page 30 The appearance and technical specifications of the product are subject to change without notice.
