LEDs – DDS-DC Drive
This section describes the LED codes that are displayed.
The front panel has two colored LEDs: the Cassette Light and the
Drive Light. A green light indicates normal operation, and an amber
light indicates a warning condition. Pulsing shows activity between
the drive and the SCSI bus.
If the Cassette Light (left LED) shows steady amber, it means that the
cassette is write-protected. If the Drive Light (right LED) shows
steady amber, this indicates a fault condition. Table 5–1 lists the LED
codes and their meanings.

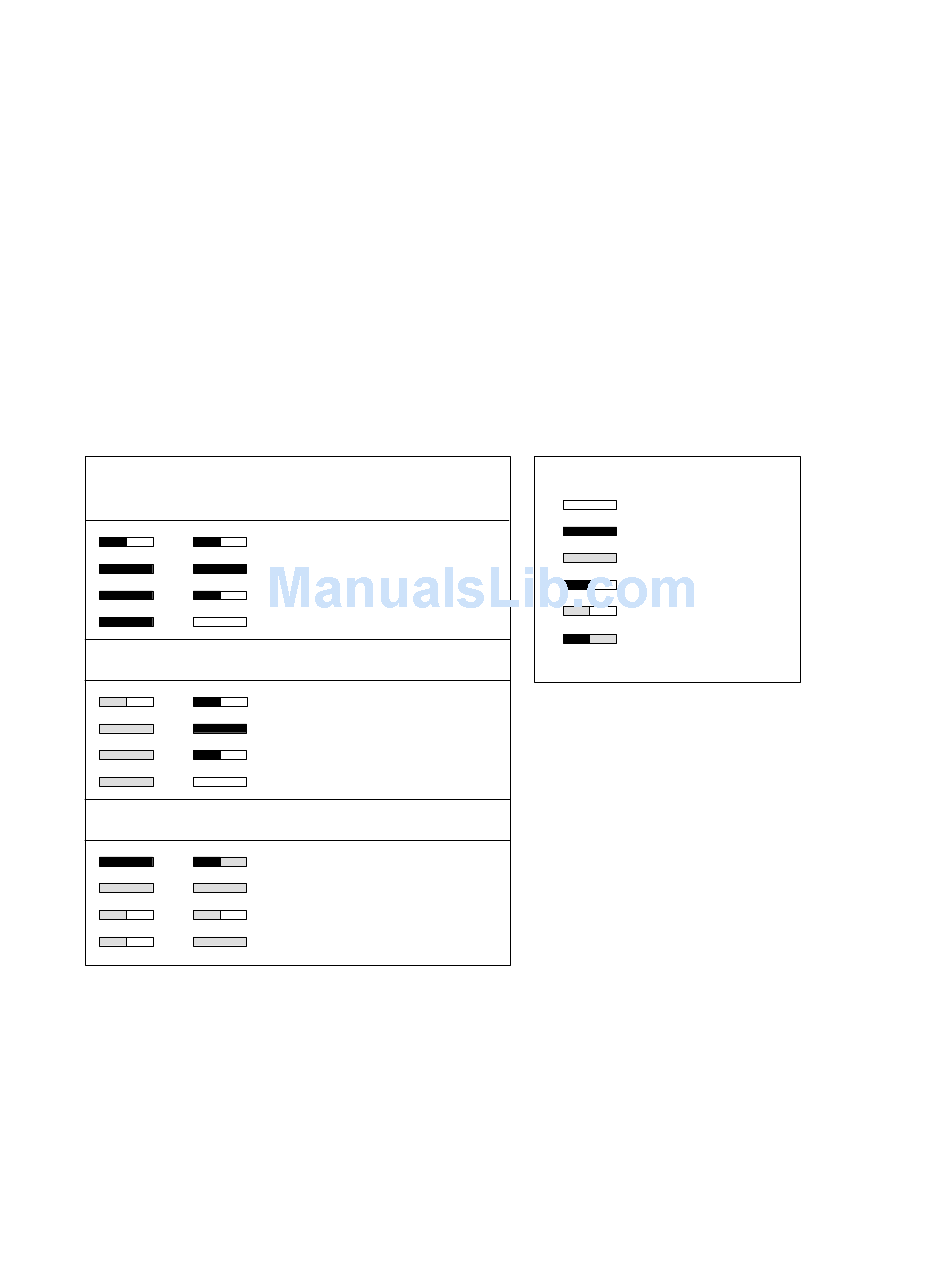

Table 5–1. LED Display Codes – DDS-DC Drive
Drive Meaning
Light
Cassette (un)loading
Cassette loaded/online
Cassette loaded/activity
Cassette loaded/offline
Cassette (un)loading
Cassette loaded/online
Cassette loaded/activity
Cassette loaded/offline
Media wear (caution)
High humidity
Self-test (normal)
Self-test (failure)
Key
OFF
Green
Amber
Pulsing Green
Pulsing Amber
Pulsing Green
and Amber
