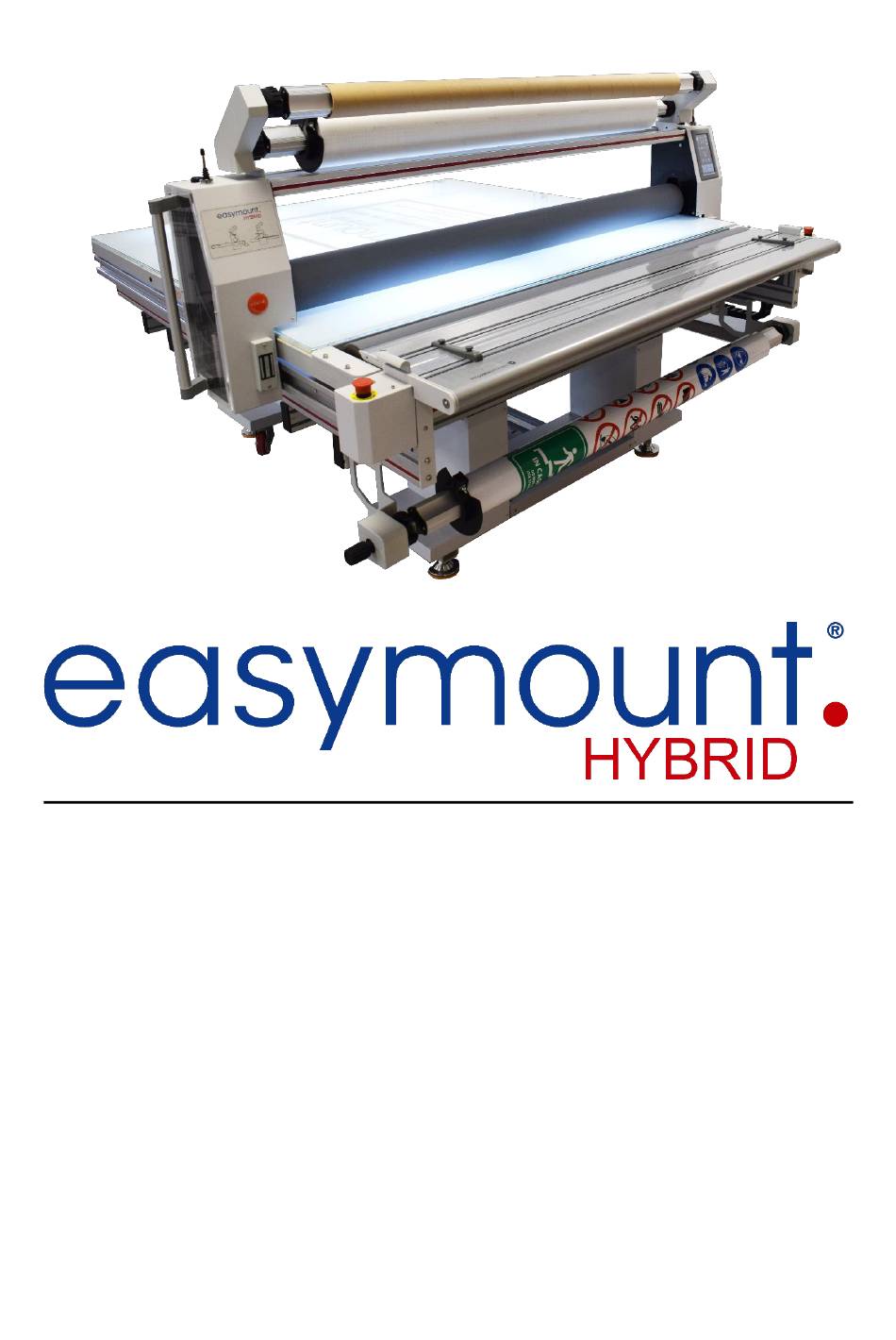

- Page 1 Assembly Instructions...
- Page 2 Position the main machine and the modular unit with the exposing rails facing each other [Figure 1] Figure 1 Connect the power for the take up and bed LEDs. These leads are labelled up P4 and P9 see below picture [Figure 2] Figure 2...
- Page 3 Loosen the bolts shown in Figure 3 to loosen the bracket and push the 2 sections together [Figure 4]. Figure 3 Figure 4 Loosen the rail by unscrewing the 4 x bolts and 4 x locking nuts either side of the machine on the modular unit [Figure 5 and 6].
- Page 4 Figure 6 Figure 7...
- Page 5 The top of the two sections should be making contact with each other, push the rails together. If square, insert the addition 4 screws needed and tighten both sections. If the rails are not square [Figure 8] adjust the feet [Figure9]. Figure 8 Figure 9 Figure 10...
- Page 6 Place the inserts inside the rail opposing each other [Figure 11] and line up using the squaring plate [Figure 12]. Figure 11 Figure 12 The left side only uses 6 bolts [Figure13] Figure 13...
- Page 7 Once all inline tighten both sides [Figure 14]. Attach the facia [Figure 15] using the Velcro [Figure 16] on both sides. Figure 14 Figure 15 Figure 16...
- Page 8 Loosen any feet [Figure 17] that have been tightened for previous steps. Tighten all feet until all wheels are equally of the ground. Using a spirit level on the front section only on the [Figure 18] X and Y axis, adjust all feet on both sections Figure 17 [Figure 17] until it is level.
- Page 9 Figure 20 Figure 21 Place the spirit level over the join [figure21] and level the back feet [Figure 17 on previous page] of the modular unit until the gap disappears.
- Page 10 Take a spirit level and place along the centre of the main system only [Figure 22 and 23]. Figure 22 Figure 23 Check for any gaps in the middle of the system along the two edges as shown in figure 23. If any gaps appear adjust the central support leg to higher position by turning clockwise [figure 24].
- Page 11 Loosen all locking nuts on each strip for the glass levelling bolts underneath both systems [Figure 25]. Figure 25 Each strip will have 5 bolts, there are 4 strips on the main system and 3 on the modular unit. [35 x bolts in total] Using the spirit level check for any gaps under the spirit level the length of the whole machine [Figure 26] ensuring the spirit level does not go over the centre join.
- Page 12 Plug the system in to the mains supply and turn the system on at the electrical box underneath the main system. Lower the roller onto the glass table and adjust the roller pressure to 0.4. move the roller along the entire system and check for any gaps between the roller on the glass. If any gaps appear tighten bolt closest to the gap.
- Page 13 Figure 29 Turning clockwise will reduce the amount of air [Figure29]: Green circle = down pressure Red circle = up pressure Yellow circle = lock pressure Make micro adjustments as the valves are very sensitive.
- Page 14 Attach the gutter trays for each unit [Figure 30 and 31]. Figure 30 Figure 31 Plug the foot pedal into the electrical box [Figure 32] It should be the only available connection on this. Figure 32...
- Page 15 The air blower can be attached at the front of the system [Figure 33] or in the middle of the system [Figure34]. Figure 33 Figure 34...
