Summary of Contents for Easymount EMS-650

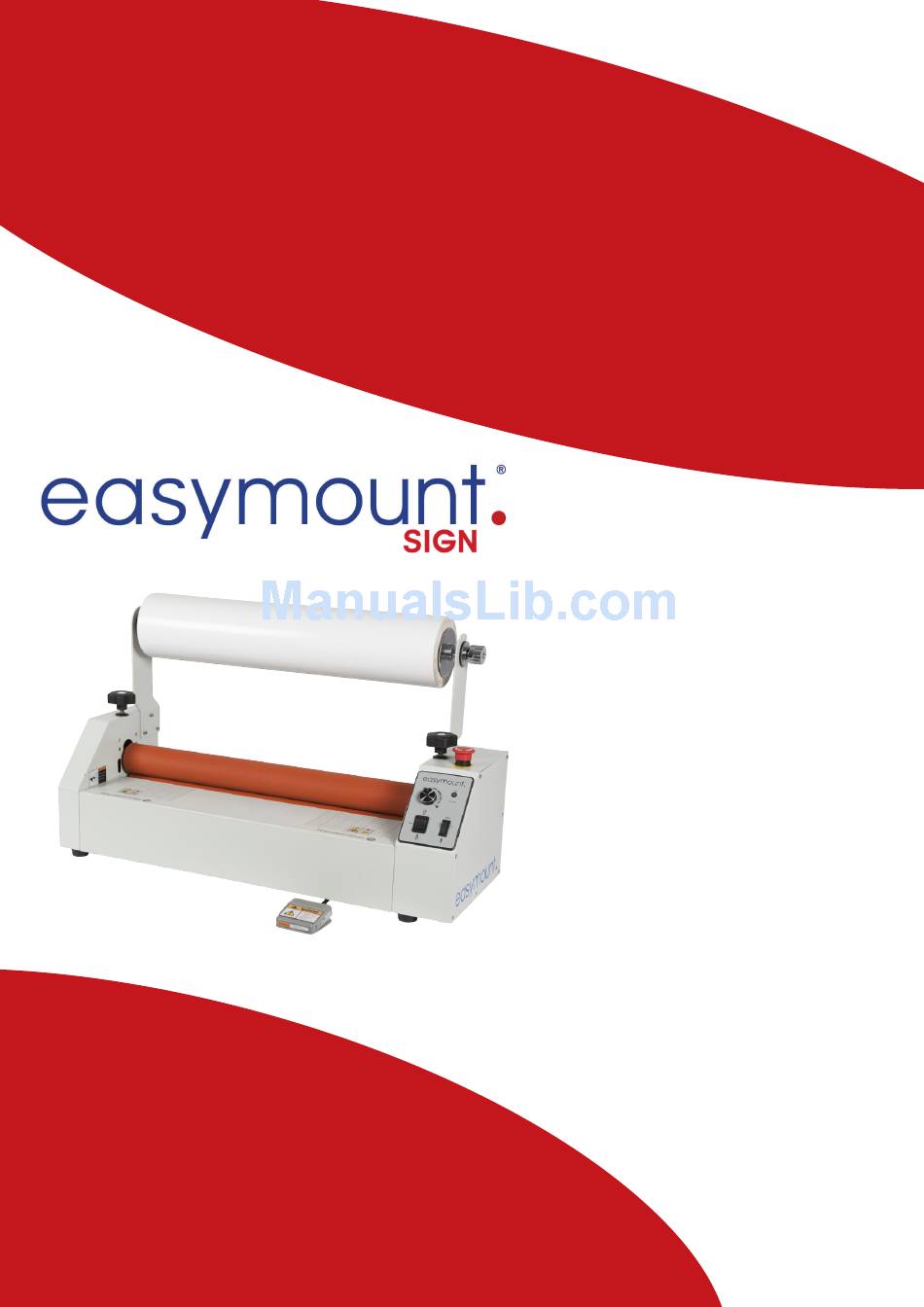

- Page 1 Product instruction manual Easymount Sign Laminator EMS-650 The Easymount Sign has been designed to be user friendly, however we strongly recommend you take a few minutes to read through this manual to ensure correct operation. Keep this manual safe for future reference.
- Page 2 Contents Page 3 - Introduction Page 4 - Safety Instructions and environmental requirements Page 5 - Control panel and specifications Page 6 - Operating instructions Page 7 - Cleaning and maintenance of the system & Spare parts Page 8 - Warranty...
- Page 3 Introduction Thank you for purchasing the Easymount® Sign laminator. This Easymount® Sign laminator is designed to perform and built to last, with its solid heavy duty construction. The advanced features allow you to laminate and mount. Mount prints onto boards and apply vinyls, tapes and adhesive films quick and easily.
-
Page 4: Safety Instructions
Safety Instructions • Please ensure that the voltages of the power supply you are using match with rated working voltages before operating the machine • The power supply should be close to the system for convenient use • The power supply should provide reliable protective earthing connection • Before the operation, the electric outlet must be grounded correctly • This system must be earthed reliably to ensure the safety of the system during operation... -
Page 5: Control Panel
Control Panel Speed Control Forward / Reverse Auto / Foot Pedal Easymount EMS-650 Specifications EMS-650 Max. Laminating Width 650mm Max. Laminating Thickness 15mm Laminating Speed 5m/min Rated Working Voltage/Frequency 220V-240V, 50Hz-60Hz Rate Input Power Dimensions 850 x 300 x 470mm... -
Page 6: Operating Instructions
Operating Instructions PREPARATION Connecting the power source: • Insert the plug into the power socket that is grounded correctly. • Turn on the power switch, the power indicator light should illuminate. FUNCTION OF THE CONTROL PANEL • SPEED adjusting control: Turn the speed adjusting control to increase or decrease the laminating speed. • AUTO/FOOT switch (Reset switch) : Set the AUTO/FOOT switch to your desired setting. -
Page 7: Spare Parts
COLD LAMINATION • Adjust the pressure control on both sides according to the thickness and the finish of the film. Turning the pressure control clockwise will increase the pressure. Turning the control anti-clockwise will decrease the pressure. To adjust to the optimum pressure, increase the pressure a little more whilst the two rubber rollers are parallel and have gripped the document lightly. - Page 8 IMPORTANT INFORMATION Your Easymount Sign laminator should reach you in perfect condition and is guaranteed for 1 Year from date of purchase covering defective parts and general wear and tear, this does not cover film jams, misfeeds or other operator related errors, which would be chargeable.
