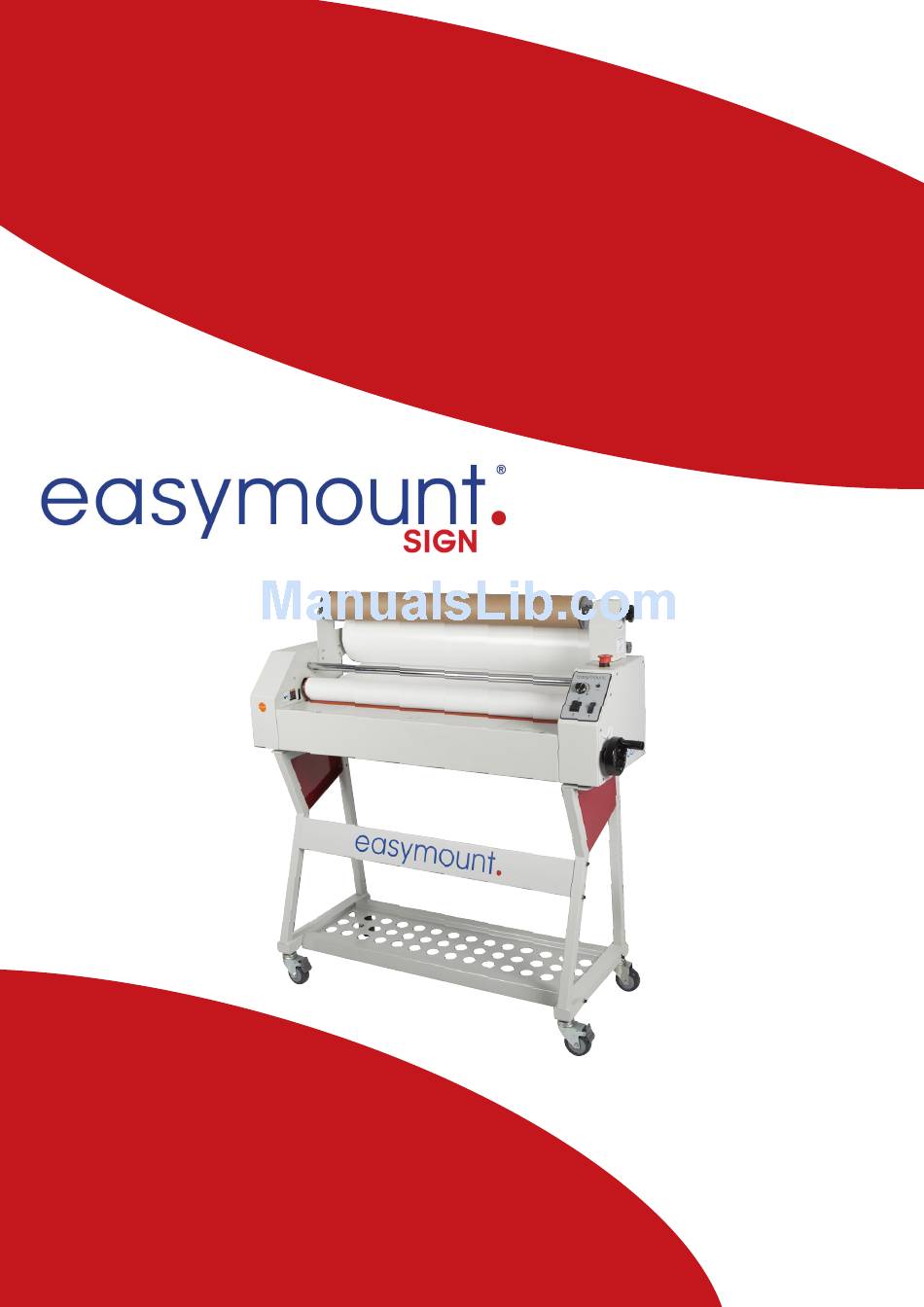

- Page 1 Product instruction manual Easymount Sign Laminator EM-720 EM-880 The Easymount Sign has been designed to be user friendly, however we strongly recommend you take a few minutes to read through this manual to ensure correct operation. Keep this manual safe for future reference.
- Page 2 Contents Page 3 - Introduction Page 4 - Safety Instructions and environmental requirements Page 5 - Control panel and specifications Page 6 - Operating instructions Page 7 - Threading the film Page 8 - Cleaning and maintaining the system & Spare parts Page 9 - Warranty...
- Page 3 Introduction Thank you for purchasing the Easymount® Sign laminator. This Easymount® Sign laminator is designed to perform and built to last, with its solid heavy duty construction. The advanced features allow you to laminate and mount. Mount prints onto boards and apply vinyls, tapes and adhesive films quick and easily.
-
Page 4: Safety Instructions
Safety Instructions • Please ensure that the voltages of the power supply you are using match with rated working voltages before operating the machine • The power supply should be close to the system for convenient use • The power supply should provide reliable protective earthing connection • Before the operation, the electric outlet must be grounded correctly • This system must be earthed reliably to ensure the safety of the system during operation... -
Page 5: Control Panel
Control Panel Speed Control Forward / Reverse Auto / Foot Pedal Easymount EM-880 Specifications EM-720 EM-880 Max. Laminating Width 720mm/28” 880mm/34” Max. Mounting Thickness 15mm/0.5” Laminating Speed 3m/10ft / min Rated Working Voltage/Frequency 220V-240V, 50Hz-60Hz Rate Input Power Dimensions 940 x 650 x 1250mm / 1100 x 650 x 1250mm / 40 x 26 x 49”... -
Page 6: Function Of The Control Panel
Operating Instructions PREPARATION Connecting the power source: • Insert the plug into the power socket that is grounded correctly. • Turn on the power switch, the power indicator light should illuminate. MOTOR OVERLOAD CIRCUIT BREAKER This system is equipped with a motor overload circuit breaker (located near the power switch). When the motor overloads, the circuit breaker will cut off the power. - Page 7 Threading Cold Film Follow the diagram to thread the film: • Slide the cold film onto the roll shaft. Hold the cold film on the core adaptor to prevent it rotating. Screw the bolt on the core adaptor, put the roll on the brackets. Make sure both ends are fitted securely.
-
Page 8: Cold Lamination
COLD LAMINATION • Adjust the roller pressure hand wheel according to the thickness and the material of the film and the document to reach the optimum pressure. Turning the pressure wheel clockwise to increase the pressure. Turning the pressure wheel anti-clockwise will decrease the pressure. NOTE. - Page 9 IMPORTANT INFORMATION Your Easymount Sign laminator should reach you in perfect condition and is guaranteed for 1 Year from date of purchase covering defective parts and general wear and tear, this does not cover film jams, misfeeds or other operator related errors, which would be chargeable.
