Product instruction manual

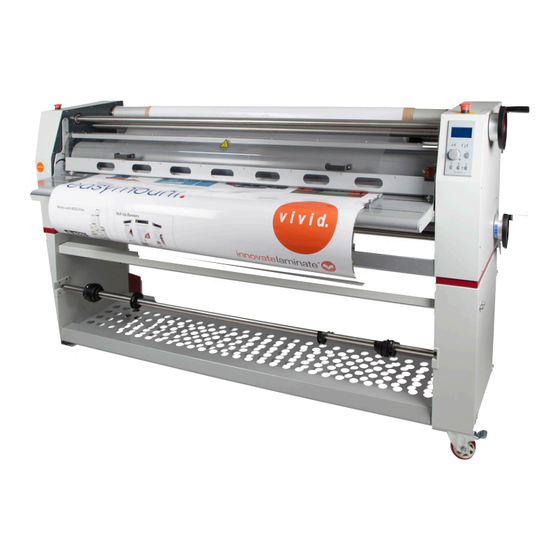

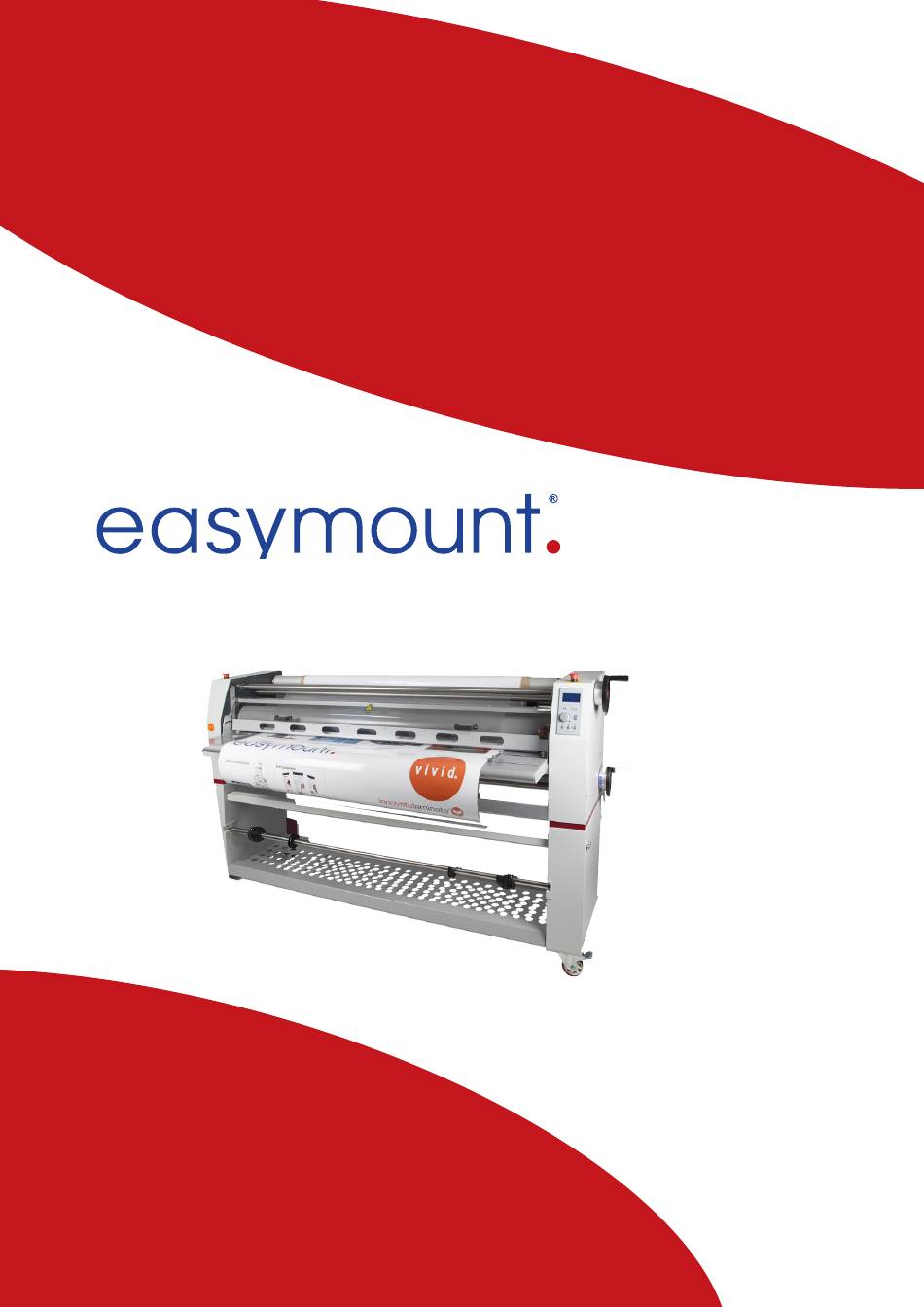

Magnum EM-1200DH & EM-1650DH
The Easymount has been designed to be user friendly,
however we strongly recommend you take a few minutes
to read through this manual to ensure correct operation.
Keep this manual safe for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM-1200DH and is the answer not in the manual?

Questions and answers

Related Manuals for Easymount EM-1200DH

Summary of Contents for Easymount EM-1200DH

  • Page 1 Product instruction manual Magnum EM-1200DH & EM-1650DH The Easymount has been designed to be user friendly, however we strongly recommend you take a few minutes to read through this manual to ensure correct operation. Keep this manual safe for future reference.

  • Page 2: Table Of Contents

    Contents Preface---------------------------------------------------------------------------------------------1 Contents-------------------------------------------------------------------------------------------2 Ⅰ. Applications & Characteristics of EM1180DH/EM-1650DH Series ----------------3 Ⅱ. Application Requirements------------------------------------------------------------------3 Ⅲ. Safety Points for Attention-----------------------------------------------------------------4 Ⅳ. Figure of the Whole Machine--------------------------------------------------------------6 V. Figure of Control Panel--------------------------------------------------------------------7 VI. Major Technical Parameters--------------------------------------------------------------8 Ⅶ. Unpacking & Installation of the Machine-----------------------------------------------9 A.

  • Page 3: Ⅰ. Applications & Characteristics Of Em1180Dh/Em-1650Dh Series

    Ⅰ . Applications & Characteristics of EM1180DH/EM-1650DH Series EM-1200DH and EM-1650DH laminators are the large or medium-sized post-production equipments for the computer picture & text systems. They integrate the functions of cold lamination, hot lamination and mounting. The number 1200 and 1650 means the maximum widths of the films used on these machines, and the unit is in ‘mm’.

  • Page 4: Ⅲ. Safety Points For Attention

    Ⅲ . Safety Points for Attention · Please ensure that the voltages of power supply you are using match the rated working voltages before operations. Please use the power supply matching the rated voltage. Do not misuse other incorrect power supply. ·...
  • Page 5 Please don’t put burrs, sharp blade or over-thick rigid materials in between the two rubber rollers. ( such as tools, rulers and knives, etc.) · Don’t cut the films directly on the surface of rubber rollers so as to avoid damages to them.

  • Page 6: Ⅳ. Figure Of The Whole Machine

    Ⅳ . Figure of the Whole Machine ( Figure 1 ) 1.Left cabinet 2. Emergency stop switch 3.Pressure-adjusting linkage axle of the front rubber roller 4. Backing paper roller 5. Front guard shield 6. Right cabinet 7. Pressure-adjusting hand-wheel of the front roller 8. Control panel 9.

  • Page 7: Figure Of Control Panel

    roller 12. Supporting sleeve of material roller 13. Front working table 14. The right and left supports of material roller 15. Adjustable foot wheel 16. Positioning plate of the front working table 17. Supporting beam 18. Rear working table 19. The upper support of material roller 20.

  • Page 8: Major Technical Parameters

    Ready indicator is on. ·For the Single / Double Roller Heat-up Key, when you press Single, the top roller will be heated up. And when Double, both the top and bottom rollers will be heated up at the same time. ·The Temperature-regulating Knob is used to set the temperature of the rollers.

  • Page 9: Ⅶ. Unpacking & Installation Of The Machine

    Warning: Please pay attention to the rated voltage of the machines, and do not use the voltage of power supply by mistake! Ⅶ . Unpacking & Installation of the Machine A. Open the Packing Box of the Stand (See Figure 3) ( Figure 3) 1.

  • Page 10: Take Out The Machine

    3) Put the mounted stand at a pointed place ( a plain ground ) for further use. C. Take Out the Machine ( See Figure 5 ) ( Figure 5 ) 1. Hex bolt and nut 2. Pressing board 3. Frame 4. Fixing plate of material roller 5.
  • Page 11 put the covers back. ( Figure 6 ) 1. Stand 2. Frame ▲ When putting the frame onto the stand or moving it, be careful not to hurt your fingers!

  • Page 12: Install The Support Of Material Roller And The Roller(Parts)

    E. Install the Support of Material Roller and the Roller(Parts) ( See Figure 7) ( Figure 7 ) 1. Material roller ( parts) 2. Fastening bolts 3. Joint plate of material roller’s support 1) Fix the two joint plates onto the frame with the bolts. 2) Put the parts of material roller into the notch of the support.
  • Page 13 · Switch on the power supply and choose any function key or knob as you need. · When doing cold mounting work, press Cold. · When doing hot laminating work, press Heat-up. · When doing single-face or double-face lamination, just choose Single-roller or Double-roller Heat-up accordingly.

  • Page 14: Adjust The Pressure Between Rubber Rollers

    4. Positioning sleeve 5. Adjusting nuts 6. fastening bolts of orientation sleeve 7. Orientation sleeve ·The method of mounting and adjusting of backing paper roller ( See Figure 9 ) 1. Turn pressure-adjusting nuts anti-clockwise towards the right cabinet, move the backing paper roller transversely and take it down from the machine, and doing the opposite will help fix it on.

  • Page 15: Operation Instructions And Steps

    When you open or close the folded hand-wheel, please pull the handgrip out a little more first. Don’t force a turning so as to avoid possible damages. ▲ When the machine lies idle for a long period of time, please lift up the top roller with the hand-wheel, so as to avoid distortion of the rubber surface due to high pressure.
  • Page 16 ( Figure 10 ) 1 . Front working table 2.Front top roller 3. Pressure-adjusting linkage shaft 4. Top guiding roller 5.Film 6. Backing paper roller 7. Backing paper 8. Cold film roller 9. Rear top roller 10. Rear bottom roller 11.
  • Page 17 lamination. · Single-face mounting with roll film: 1) Adjusting the friction: After putting the film roller onto the support, pull the film and you should feel roper resistance. If not, turn to adjust the sleeve. Note: if the film is not very tight, you need to adjust the positioning sleeve ▲...
  • Page 18 roller 10）Film 11）Heat-sensitive film 12）Bottom guiding roller 3．Function setting： A．Press the key for ‘Hot’ ； B．Press the key for ‘Single’roller heat-up； C．Choose a temperature which is fit for the lamination； D．Adjust the speed to what you need； When ‘Ready’ light is on，the heat-up process is over. 4.How to feed in the film: Tape the picture and text plainly onto the lining paper.

  • Page 19: Continuous Double-Face Hot Laminating

    C. Continuous Double-Face Hot laminating ( Figure 12 ) 1) Front working table 2) Front top roller 3) Pressure-adjusting linkage shaft 4) Top guiding roller 5)Top heat-sensitive film 6)Top film roller 7) Rear top roller 8) Rear bottom roller 9) Bottom film roller 10) Bottom heat-sensitive film 11) Bottom guiding roller 12) Front bottom...

  • Page 20: Common Faults & Settlements Of Quality Issues

    rear working table. Pull the two film plain and turn the hand-wheels to lower the rollers. Then put the hand-wheels in a free position—that is to say in a completely pressure-free state. Note: As the rubber roller will expand while being heated, the pressure will also change.
  • Page 21 The space between the two rubbers is adjusted in working state. In stand-by state, the unbalance of space between the two rubber rollers is produced by the screw pitch of the stroke adjustment structure, which does not affect normal operation. If the quality of lamination is affected, check and adjust according to the following steps: ·...

  • Page 22: Treatments Of The Problems Before Repairs

    B. Treatments of the Problems before Repairs Problems Causes Treatments ·No power supply ·Turn on power supply ·Protective tube blown out ·Replace protective tube ·Pressure of rubber roller is Rubber roller does not run · Reduce pressure of rubber roller too big ·Turn the speed up ·Speed is too low...

  • Page 23: Maintenance And Repair

    XII . Maintenance and Repair · The machine needs timely cleaning after being used for a certain period of time. The front rubber roller especially needs cleaning, otherwise the quality of Lamination will be affected. But before doing so, don ’ t forget to switch off the power supply for the safety sake of your life.
  • Page 24 IMPORTANT INFORMATION Your Easymount Double Hot System should reach you in perfect condition and is guaranteed for 1 Year from date of purchase covering defective parts and general wear and tear; this does not cover paper jams, misfeeds or other operator related errors, which would be chargeable.
