KMINA K10063 User Manual

Upright rollator
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
U S ER M AN U AL
MA N UA L D E US UA RIO
BENUTZERHANDBUCH
MANUEL D'UTILISATION
MANUALE UTENTE

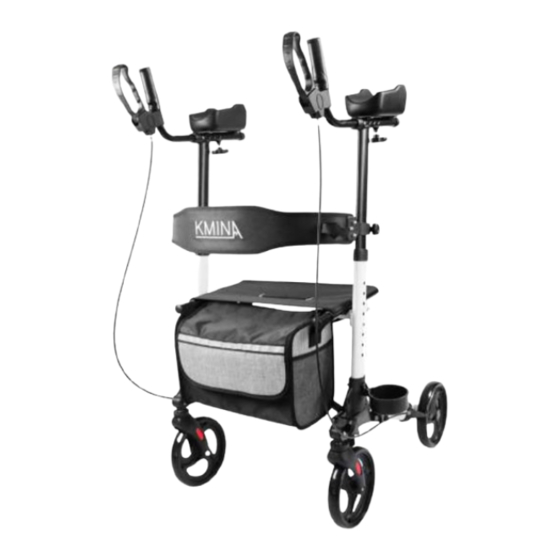

KMINA - UPRIGHT ROLLATOR
KMINA - ANDADOR ANTEBRAZO
KMINA - ARTHRITIS ROLLATOR
KMINA - DÉAMBULATEUR VERTICAL
KMINA - DEAMBULATORE VERTICALE
EN
The KMINA Upright Rollator is a walker designed for those who have balance problems, leg weakness or difficulty
maintaining an upright posture while walking. Its major point of support is the forearm supports, which provide a
higher level of stability by allowing the forearms to rest while the user walks. It also allows weight to be distributed
more evenly, reducing pressure on the hands and wrists. It has been designed for both indoor and outdoor use and
can be easily folded for easy transport. It has a space to store the cane and a lever to help lift the walker.
Br ake
Backr est
Basket
A S S E MB LY
1. Remove the walker from the box and place it with the wheels facing upwards to begin assembling.
2. Unscrew the nuts on the 4 casters, unscrew them and retighten the 4 lock nuts. Then open the frame of the walker
until you hear a click to indicate that it is fully open.
3. Insert the backrest through the bottom of the handlebars and then snap both handlebars into the central frame by
adjusting it to the desired height in one of its 8 settings. The forearm padding should be positioned at the rear of the walker.
4. Place the brakes on the handlebar tube and adjust it to one of the 4 settings (leaving a space of 3" - 6") that best matches the
length of your arms. Tighten the thread located at the bottom of the forearm padding for a secure brake attachment.
5. Hook the cane holder into the tab on the left side of the walker.
6. Finally, insert the basket into the tubes at the front of the walker.
FOLDI NG SY S TE M
1. To unfold, pull outward on the seat ends until the seat opens fully and push down to fully engage.
2. To fold, remove the basket from the walker and pull the strap on the seat upwards.
H E IG H T AD JU STME NT
The walker can be adjusted to 8 different heights between 43" - 50" by means of a push button on the side of the
aluminum frame.
B RA K E S YS TE M
When the walker is in motion, the brakes are operated by simply pushing the brake levers inward.
1. To lock the brakes, press the brake levers outward until you hear a locking sound. The wheels will remain locked
until you pull the brake levers inward again.
2. To unlock the brakes, push the brake levers inward.
The brake pressure is adjusted by turning the adjusting nut, located on the top of the brake shoe, on the rear wheel.
1. Turning the nut counterclockwise will increase the braking pressure.
2. Turning the nut clockwise decreases the pressure required for braking.
REFER EN CE
KM IN A - U PR IGHT R OLLATOR
Forearm pad
Folding strap
Aluminum
fram e
Cane holder
W heels
1
K1 006 3
