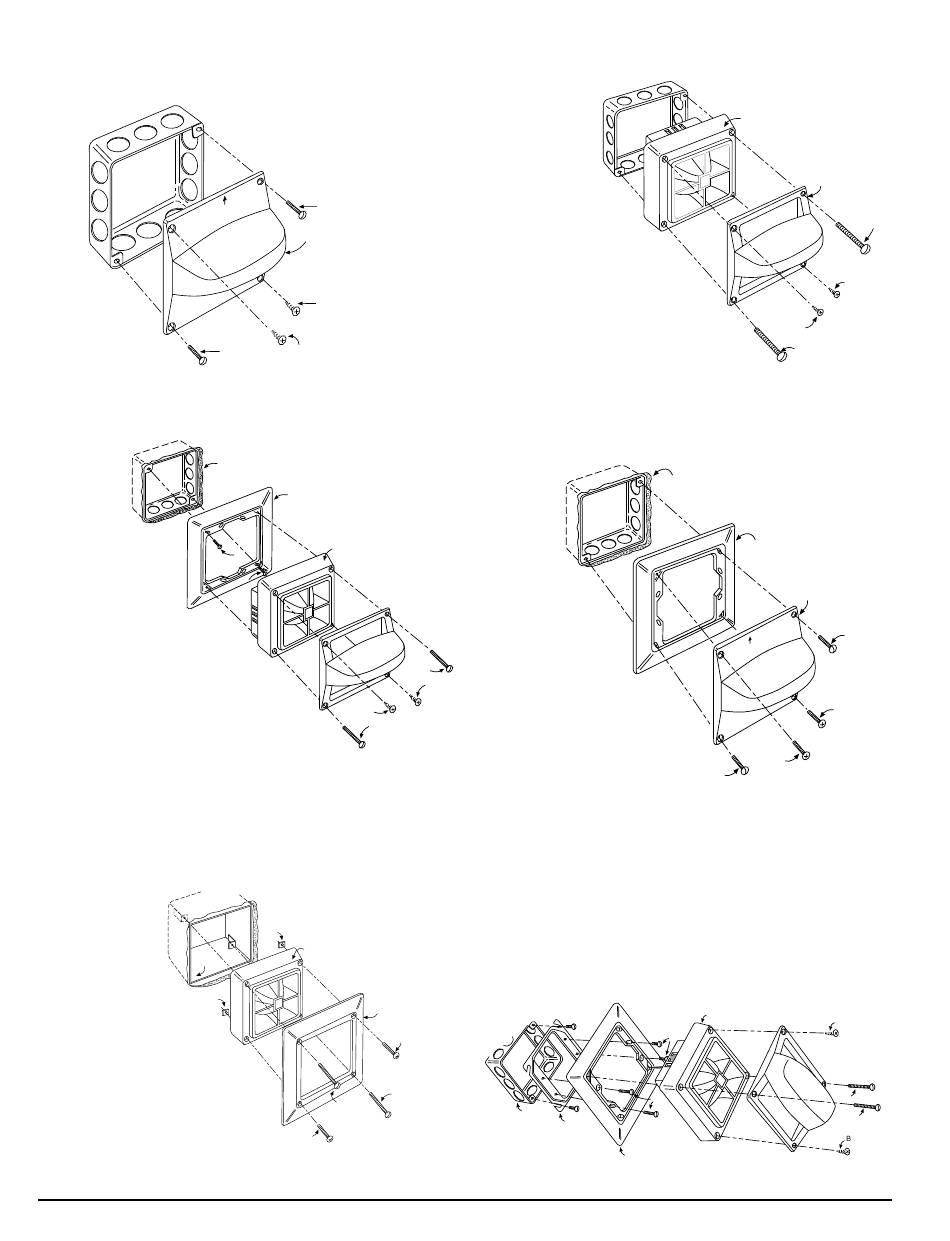

Figure 9. Strobe surface mount:
Standard
Backbox
P
T O
Figure 11. Sounder or sounder/strobe semi-flush
mount:
1. Screw plate to box with screw E.
2. Complete field wiring. (See Fig. 3,
4, 5, and 6)
3. Screw sounder or sounder/strobe
to plate with screw A.
4. Fill remaining holes with screw B.
Figure 13. Sounder flush mount (deep box required):
BB-D
D
1. Complete field wiring.
2. Screw plate sounder to Box
with screw F.
D900-06-00
1. Complete field wiring.
2. Screw strobe to box with screw A.
3. Fill remaining holes with Screw B.
A
Signal Strobe
B
B
A
A78-2514-00
STANDARD
BACKBOX
MP-SF
MA-12/24D
E
E
B
A
D
MA 12/24D
MP-F
F
F
C
Figure 10. Sounder/strobe sur face mount:
1. Complete field wiring.
2. Screw sounder/strobe to box
with screw A.
3. Fill remaining screw holes with
screw B.
Figure 12. Strobe semi-flush mount:
A
B
1. Screw strobe to plate with
screw C.
2. Complete field wiring.
3. Screw strobe plate to box with
A78-2517-01
screw A.
Figure 14. Sounder or sounder/strobe semi-flush
mount with plaster ring:
1. Plaster ring should be properly mounted to electrical box
with screws supplied with box.
2. Screw plate to plaster ring with screw G.
3. Complete field wiring. (See Fig. 5, 7, and 8)
4. Screw sounder/strobe to plate with A.
5. Fill remaining holes with screw B.
C
Standard
Backbox
Plaster
Ring
A78-1137-08
4
Standard
MA-12/24D
Backbox
B
A
STANDARD
BACKBOX
MP-SF
Signal Strobe
P
T O
C
A
MA 12/24
G
G
MP-SF
