INSTALLATION AND MAINTENANCE INSTRUCTIONS
RP12/24ADA Series Retrofit
Strobes for Fire Protective
Signaling Systems
Table 1. RP12/24ADA Series electrical ratings:
Model Supply Operating Current from Regulated Supply
Voltage
Range
Average
Operatin
Current
RP24110ADA
20-30V 210
RP24110ADAW
RP2475ADA
20-30V 170
RP2475ADAW
RP2415ADA
20-30V 75
RP2415ADAW
RP1215ADA
10.5-17V 170
RP1215ADAW
RP241575ADA
RP241575ADAW
20-30V 93
RP121575ADA
RP121575ADAW
10.5-17V 225
NOTICE: This manual should be left with the owner/user
of this equipment.
General Description
The National Fire Protection Association has published
standards and recommended practices for the installation
and use of the listed appliances. It is recommended that the
installer be familiar with these requirements, with local
codes, and any special requirements of the local fire au-
thority having jurisdiction.
The RP12/24ADA series retroplates are ADA compliant (75
and 110 cd models) signaling devices and designed for use
in existing or new installations. They are a low-cost alterna-
tive to replacing a sounder with a new sounder/strobe.
This signaling strobe is intended to be connected to the
alarm indicating circuit of a UL-listed fire alarm control

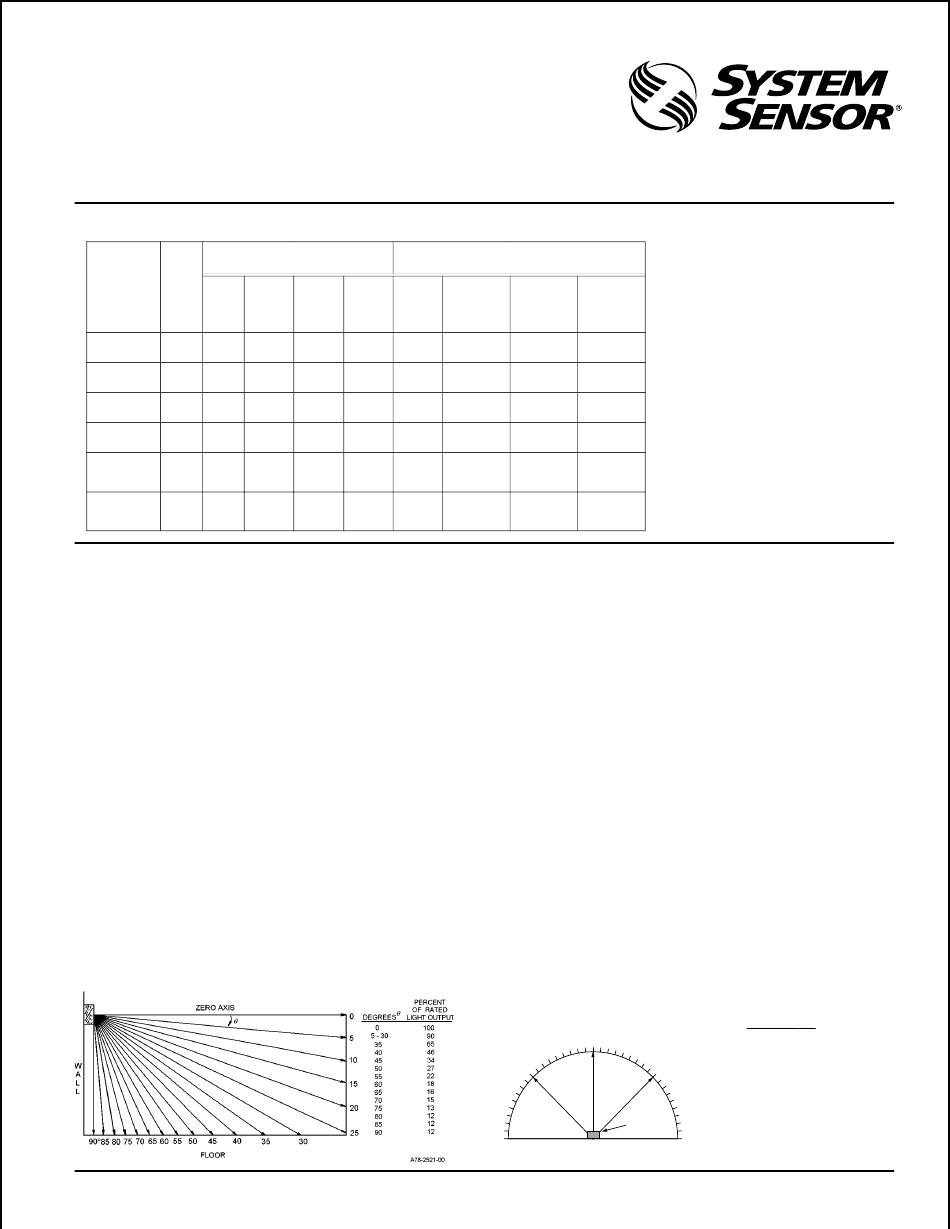

Figure 1. Vertical and horizontal light distribution:
D900-09-00
Peak Peak Inrush Average
Current Current Current Operating
(mA) (mA) (mA in Current
20/30V 10.5V/17V access of (mArms)
Peak)
470/500 - 0 245
385/400 - 0 200
160/180 - 0 90
- 360/380 0 200
210/220 -- 0 120
-- 510/560 0 270
Operating Current from Full-Wave Rectified Unfiltered
Supply
Peak Current Peak Current Inrush Current
(mA) (mA) (Amps in
20Vrms/30Vrms 10.5Vrms/17Vrms excess of Peak)
400/500 - 0.08
320/370 - 0.04
275/290 - 0.02
- 330/380 0.02
275/290 -- 1
-- 500/530 0.02
panel. It is compatible with DC line supervision. Models
RP2415ADA, RP2475ADA,
RP241575ADA require 24 volt panels. Models RP1215ADA
and RP121575ADA require 12 volt panels. Panels may have
full-wave rectified, unfiltered power supplies. The strobes
produce one flash per second (nominal) with continuous
nominal voltage applied.
The rated light output of the RP2415ADA, RP1215ADA,
RP241575ADA, and RP121575ADA is 15 cd (see Figure 1).
The rated light output of the RP2475ADA is 75 cd (please
see Figure 1).
The rated light output of the RP24110ADA is 110 cd (please
see Figure 1).
NOTE: The light output at 0° viewing angle for RP12/
241575ADA models is 75 cd (see Figure 1).
0˚
45˚
90˚
1
A Division of Pittway
3825 Ohio Avenue, St. Charles, Illinois 60174
1-800-SENSOR2, FAX: 630-377-6495
NOTE: In-rush current du-
ration is less than
20 microseconds
(0.00002 seconds).
RP24110ADA,
Percent of
Degrees Rating
0 100
5 - 25 90
30 - 45 75
50 55
55 45
–45˚
60 40
65 35
70 35
75 30
80 30
LIGHT
85 25
90 25
–90˚
and
I56-757-02
