Tronair 01-1269-0020 Operation & Service Manual

Global express custom towbar

Advertisement

Quick Links

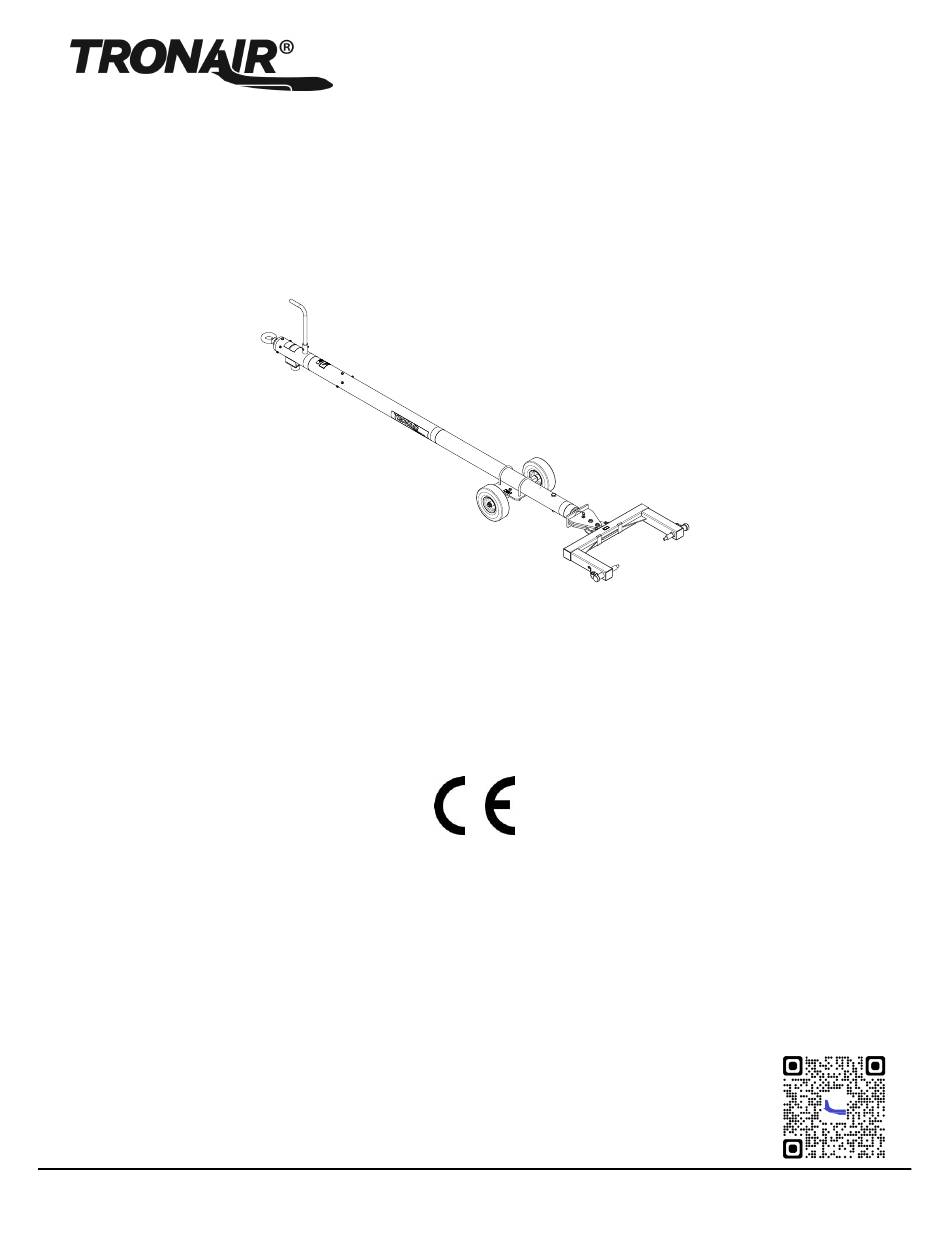

OPERATION & SERVICE MANUAL
Models: 01-1269-0020
01A1269-0020
Global Express Custom Towbar
12/2007 − Rev. 02
For Spare Parts, Operations & Service Manuals or Service Needs
Scan the QR code or visit Tronair.com/aftermarket
Tronair, Inc.
Phone: (419) 866-6301 | 800-426-6301
1 Air Cargo Pkwy East
Web: www.tronair.com
Swanton, OH 43558
Email: sales@tronair.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01-1269-0020 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tronair 01-1269-0020

  • Page 1 01A1269-0020 Global Express Custom Towbar 12/2007 − Rev. 02 For Spare Parts, Operations & Service Manuals or Service Needs Scan the QR code or visit Tronair.com/aftermarket Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
  • Page 2 REVISION DATE TEXT AFFECTED 12/2007 Added CE marking and Declaration of Conformity, Modified Parts List...
  • Page 3 Models: 01-1269-0020, 01A1269-0020 Global Express Custom Towbar TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 SPECIFICATIONS .............................. 1 SAFETY INFORMATION ..............................1 GENERAL ................................1 TRAINING ..................................1 TRAINING REQUIREMENTS ..........................1 TRAINING PROGRAM ............................
  • Page 4 Tronair towbars/heads must only be used with matching Tronair heads/towbars, and Tronair shear pins. This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur.
  • Page 5: Usage Procedure

    Models: 01-1269-0020, 01A1269-0020 Global Express Custom Towbar OPERATION PRELIMINARY CHECKLIST 4.1.1 Towbar ⎯ Check towing eye mounting bolts. Ensure the fasteners are not loose or missing. ⎯ Check towing eye for bending, excessive wear and deformity. ⎯ Check the ball lok-T pin. Ensure ball lok-T pin is securely attached to towbar via its lanyard. Ensure ball lok-T pin is not missing.
  • Page 6 Tronair recommends a telecoupler pintle hook arrangement. This arrangement is known to eliminate binding. Tronair offers a Standard Telecoupler, Model Number 01-1950-5000, for use on tugs. Reference Figure 3. Damage to the towbar and/or aircraft can result by towing or pushing an aircraft with an incorrect size eyebolt or pintle pin.
  • Page 7 If warranty coverage is approved, either replacement parts will be sent or the product will have to be returned to Tronair for repairs. If the product is to be returned, a Return Material Authorization (RMA) number will be issued for reference purposes on any shipping documents.
  • Page 8 Assembly, Shock – 01A1269-0020 Z-4752 Item 1 consists of items which are not sold separately. Due to the high compression used in assembly, it is suggested this Shock Assembly be returned to Tronair for repair. Discuss with your Salesperson. 2 G-1420-106012 Bolt, Hex Head, Grade 5, -18 x 1 ¼"...
  • Page 9 Models: 01-1269-0020, 01A1269-0020 Global Express Custom Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description Z-3579-01-01 Weldment, Axle U-1027 Wheel, Pneumatic Tire TR-1585 Spacer, Wheel G-1100-107514 Bolt, Hex Head, Grade 5, 3/8 - 24 x 1 ½" long...
  • Page 10 Models: 01-1269-0020, 01A1269-0020 Global Express Custom Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description G-1202-1090 Stopnut, ¼ -13 Elastic G-1250-1110N Flatwasher, ¾ Narrow Z-5659-01 Shear Plate Replacement...
  • Page 11 APPENDIX I Declaration of Conformity...
  • Page 13 Enter serial number(s) Declaration: Tronair has assessed the equipment described above against the Essential Health and Safety Requirements of one or more Directives. Based on this assessment, the equipment described above is deemed to comply with the directive(s) listed below.
