Tronair 01-0506-0000 Operation & Service Manual

Multi-head beech king/queen air

Advertisement

Quick Links

OPERATION & SERVICE MANUAL
Model: 01-0506-0000
Multi-Head
Beech King/Queen Air
01/2007  Rev. 06
Tronair, Inc.
Phone: (419) 866-6301 | 800-426-6301
1 Air Cargo Pkwy East
Web: www.tronair.com
Swanton, OH 43558
Email: sales@tronair.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 01-0506-0000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tronair 01-0506-0000

  • Page 1 OPERATION & SERVICE MANUAL Model: 01-0506-0000 Multi-Head Beech King/Queen Air 01/2007  Rev. 06 Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
  • Page 2 REVISION DATE TEXT AFFECTED 12/18/03 pg 1 2.1 Safety Information/General - warning added 01/2007 Added CE marking...
  • Page 3: Table Of Contents

    Model: 01-0506-0000 Beech King/Queen Air Multi-Head TABLE OF CONTENTS PAGE DESCRIPTION .................................. 1 SPECIFICATIONS .............................. 1 SAFETY INFORMATION ..............................1 GENERAL ................................1 OPERATION ..................................1 PRELIMINARY CHECKLIST ..........................1 3.1.1 Head Attachment Weldment ..........................1 3.1.2 Sliding Pin ................................1 USAGE PROCEDURE ............................
  • Page 4: Description

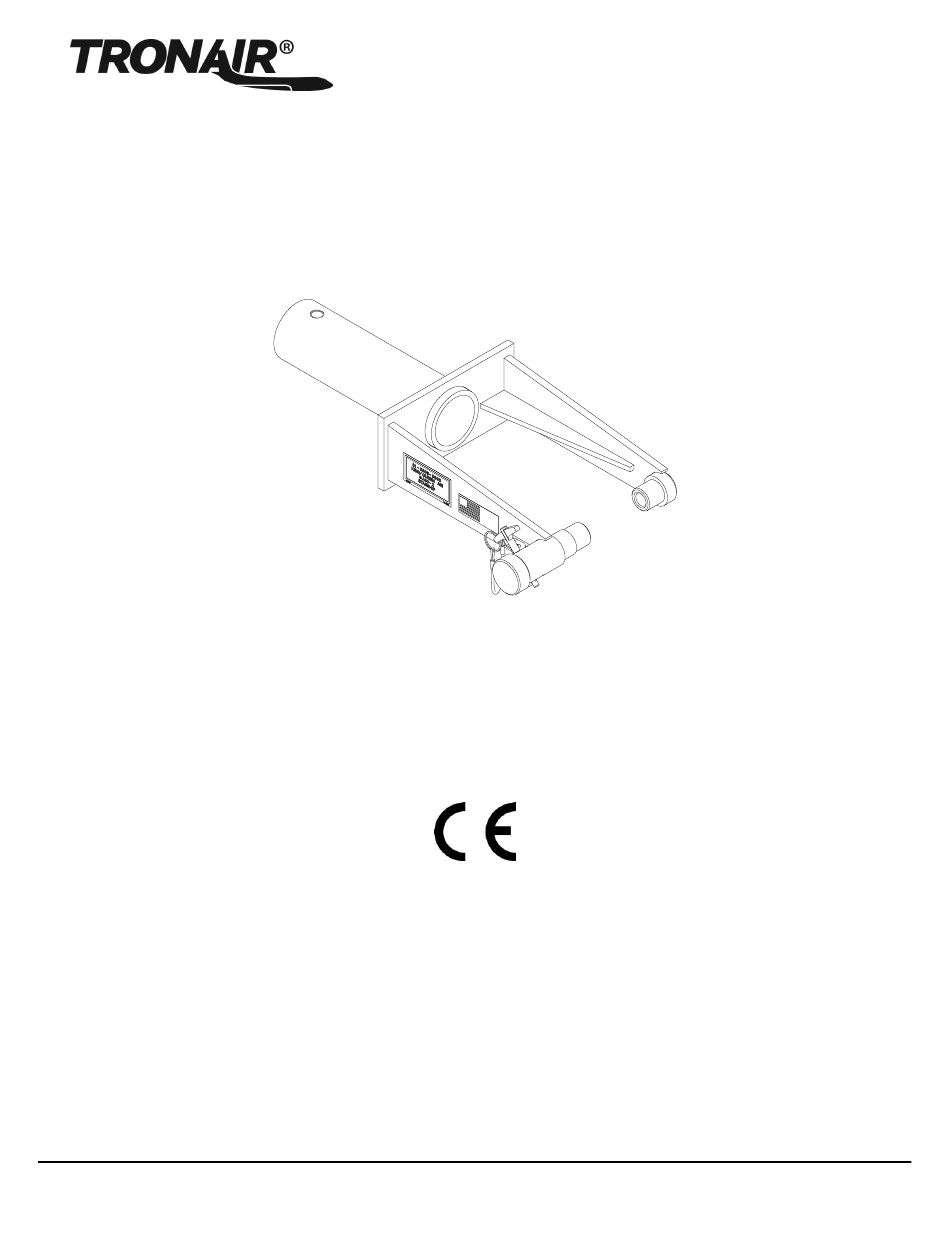

    Only Tronair OEM replacement parts shall be used. DESCRIPTION The Tronair Model 01-0506-0000 Multi-Head is a towbar head attachment for the Beech King and Queen Air, SJ30-2 and Starship aircraft. The towbar head attachment is designed for use with Tronair Multi-Head Towbar Models 01-1201-0010, 01-1202-0000 and 01-1290-0100 for towing the previously stated aircraft.
  • Page 5: Usage Procedure

    Model: 01-0506-0000 Beech King/Queen Air Multi-Head OPERATION (continued) USAGE PROCEDURE Secure the towbar head attachment using the ball lok-T pin (supplied with the multi-head towbar) onto one of the following Tronair Multi-Head Towbar Models:  01-1201-0010  01-1202-0000  01-1290-0100 Set the sliding pin to the correct location on the multi-head towbar using its ball lok-T pin.
  • Page 6: Training

    GUARANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the...
  • Page 7 Model: 01-0506-0000 Beech King/Queen Air Multi-Head Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description Not Sold Separately Head Weldment R-2111 Sliding Pin G-1300-19040 Roll Pin, 3/16" diameter x ½" long K-1308 Kit, Ball Lok-T Pin Replacement;...
  • Page 9 APPENDIX I Declaration of Conformity...
  • Page 11: Declaration Of Conformity

    DECLARATION of CONFORMITY The design, development and manufacture is in accordance with European Community guidelines Multi-Head Towbar 01-0506-0000 Relevant provisions complied with by the machinery: 2006/42/EC Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the Manufacturer: Quality Assurance Representative Tronair, Inc.
