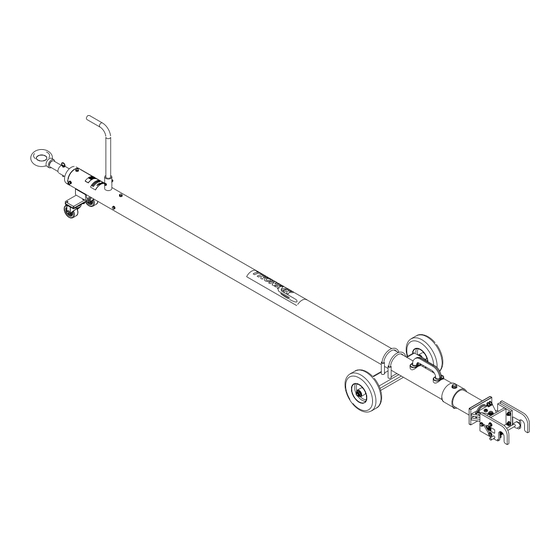

Falcon 50/50ex/900/900ex/ 2000/2000ex custom towbar

Advertisement

Quick Links

OPERATION & SERVICE MANUAL
Models: 01-1211-0010
01B1211-0010
Falcon 50/50EX/900/900EX/2000/2000EX
Custom Towbar
07/2019  Rev. 02
For Spare Parts, Operations & Service Manuals or Service Needs
Scan the QR code or visit Tronair.com/aftermarket
Tronair, Inc.
Phone: (419) 866-6301 | 800-426-6301
1 Air Cargo Pkwy East
Web: www.tronair.com
Swanton, OH 43558
Email: sales@tronair.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01-1211-0010 01B1211-0010 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tronair 01-1211-0010 01B1211-0010

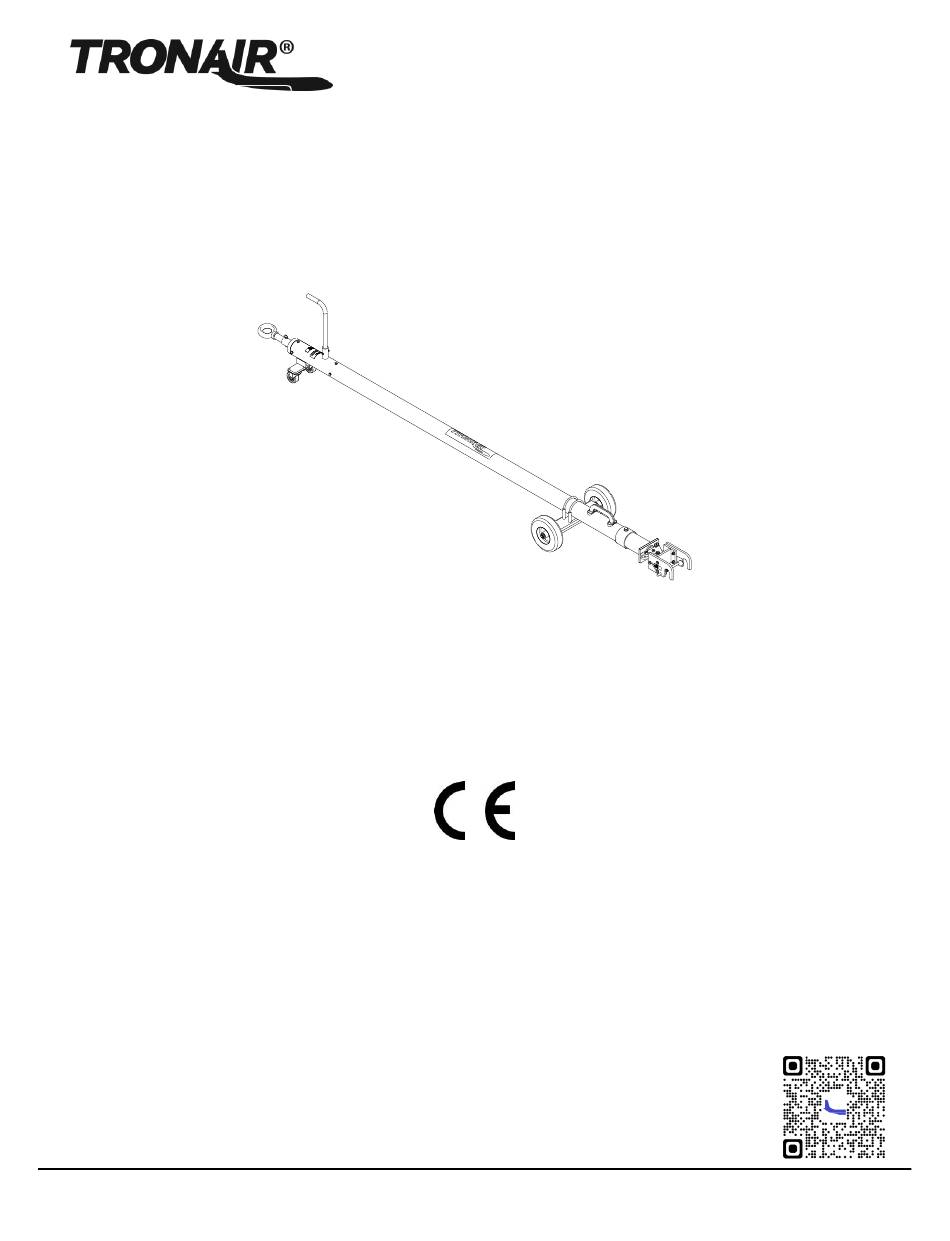

  • Page 1 01B1211-0010 Falcon 50/50EX/900/900EX/2000/2000EX Custom Towbar 07/2019  Rev. 02 For Spare Parts, Operations & Service Manuals or Service Needs Scan the QR code or visit Tronair.com/aftermarket Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
