OPERATION & SERVICE MANUAL
Model: 01-1291-0010
Custom Towbar
Cessna Citation III, VI, VII, X,
Excel & Longitude
11/2017 - Rev. 10
For Spare Parts, Operations & Service Manuals or Service Needs
Scan the QR code or visit Tronair.com/aftermarket
Tronair, Inc.
Phone: (419) 866-6301 | 800-426-6301
1 Air Cargo Pkwy East
Web: www.tronair.com
Swanton, OH 43558
Email: sales@tronair.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tronair 01-1291-0010
Summary of Contents for Tronair 01-1291-0010

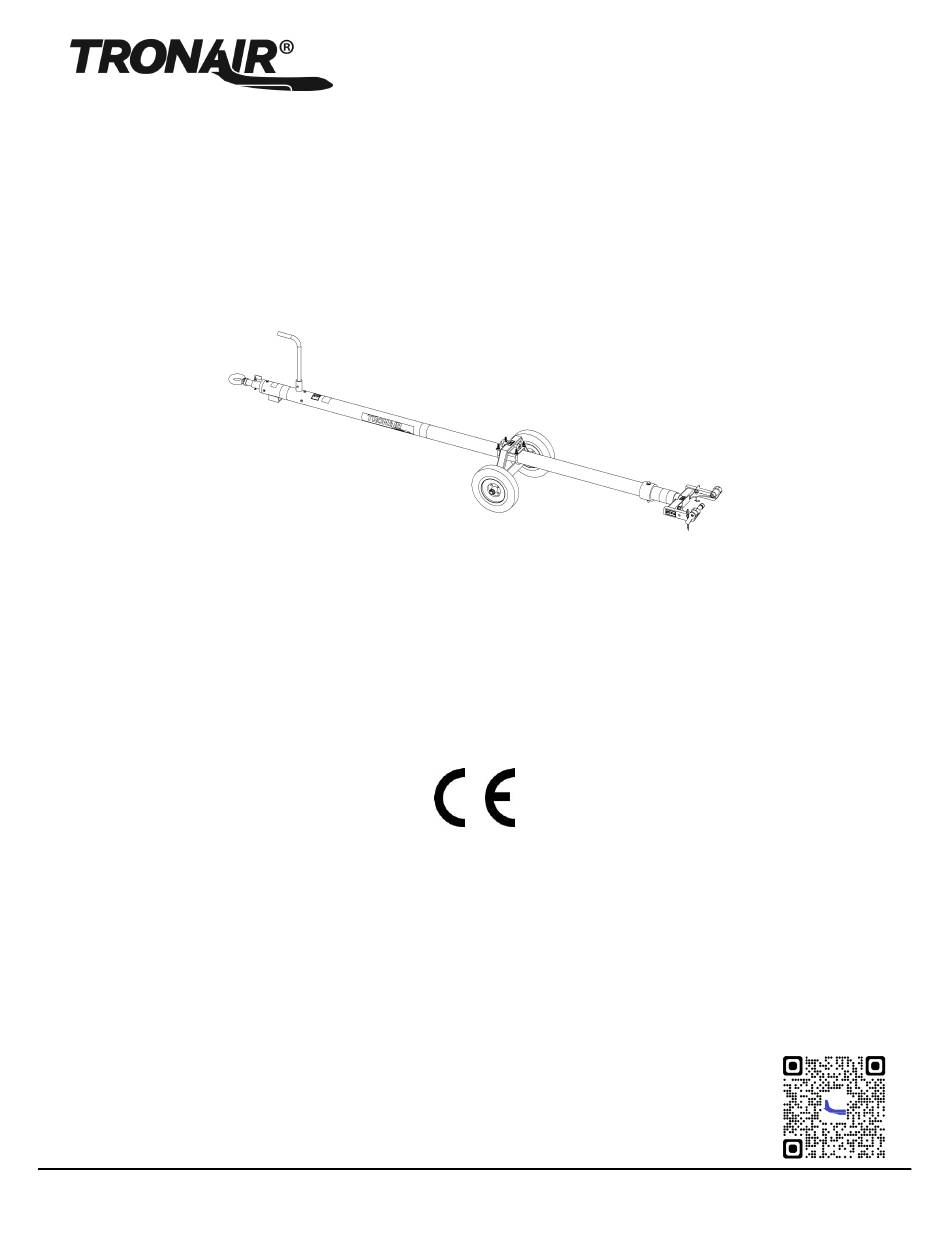

- Page 1 Cessna Citation III, VI, VII, X, Excel & Longitude 11/2017 - Rev. 10 For Spare Parts, Operations & Service Manuals or Service Needs Scan the QR code or visit Tronair.com/aftermarket Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 01/2004 3.2.1 Operation/General - Warning added 02/24/04 Modified part number 08/2004 Modified part number 06/2005 Modified part number 03/2007 Added CE marking 03/2009 Major revision 11/2017 Major revision...
-
Page 3: Table Of Contents
Model: 01-1291-0010 Custom Towbar - Cessna Citation III, VI, VII, X, Excel & Longitude TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 SPECIFICATIONS .............................. 1 FEATURES ................................. 1 SAFETY INFORMATION ..............................2 USAGE AND SAFETY INFORMATION ...................... -
Page 4: Product Information
PRODUCT INFORMATION DESCRIPTION The Tronair Model 01-1291-0010 Custom Towbar is a designed for towing the Cessna Citation III, VI, VII, X, Excel & Longitude Aircraft manufactured by Cessna Aircraft Company. The custom towbar includes pivoting aircraft attachment arms for remote interface to the aircraft tow point. There is a handle and an eyebolt at the end of the towbar for towing. -
Page 5: Safety Information
GENERAL The Tronair Model 01-1291-0010 Custom Towbar is a designed for towing the Cessna Citation III, VI, VII, X, Excel & Longitude Aircraft manufactured by Cessna Aircraft Company. To ensure safe operation, please read the following statements and understand their meaning. This manual contains safety precautions which are explained as follows. -
Page 6: Operation
Model: 01-1291-0010 Custom Towbar - Cessna Citation III, VI, VII, X, Excel & Longitude OPERATION PRELIMINARY CHECKLIST 4.1.1 Towbar ⎯ Check eyebolt for wear or deformation. ⎯ Check shock mounting bolts. Ensure shock mounting bolts are not loose or missing. -
Page 7: Couplers
To ensure proper towing and pushing, check to make sure the pintle pin diameter is not too long for the eyebolt's inside diameter. An approximate one-half inch (½") gap between the pin diameter and the eyebolt should be seen. If any of these conditions are not met, please contact Tronair for information to obtain a new coupler. FIGURE 4 4.2.4... -
Page 8: Provision Of Spares
If warranty coverage is approved, either replacement parts will be sent or the product will have to be returned to Tronair for repairs. If the product is to be returned, a Return Material Authorization (RMA) number will be issued for reference purposes on any shipping documents. - Page 9 Model: 01-1291-0010 Custom Towbar - Cessna Citation III, VI, VII, X, Excel & Longitude Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description TR-1857-01 Tube, Handle G-1100-105520 Bolt, Hex Head, Grade 5, ¼ - 28 x 2" long...
- Page 10 Model: 01-1291-0010 Custom Towbar - Cessna Citation III, VI, VII, X, Excel & Longitude Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description K-3620 Kit, Axle Replacement; consists of:...
- Page 11 Model: 01-1291-0010 Custom Towbar - Cessna Citation III, VI, VII, X, Excel & Longitude Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description Z-9642 Assembly, Shear Pin TR-1118-03 Tube, Shear...
- Page 12 Model: 01-1291-0010 Custom Towbar - Cessna Citation III, VI, VII, X, Excel & Longitude Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description Z-5139-01 (Reference Only) Weldment, Head Not Sold Separately...
- Page 13 APPENDIX I Declaration of Conformity...
- Page 15 DECLARATION of CONFORMITY The design, development and manufacture is in accordance with European Community guidelines Custom Towbar 01-1291-0010 Relevant provisions complied with by the machinery: 2006/42/EC Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the Manufacturer: Quality Assurance Representative Tronair, Inc.
