OPERATION & SERVICE MANUAL
Models: 01-1229-0011
01A1229-0011
Custom Towbar
Canadair RJ Aircraft
07/2007 Rev. 06
When ordering Replacement Parts/Kits, please specify Model, Color and Serial Number of your Unit.
Tronair, Inc.
Phone: (419) 866-6301 | 800-426-6301
1 Air Cargo Pkwy East
Web: www.tronair.com
Swanton, OH 43558
Email: sales@tronair.com
Advertisement
Table of Contents
Related Manuals for Tronair 01-1229-0011
Summary of Contents for Tronair 01-1229-0011

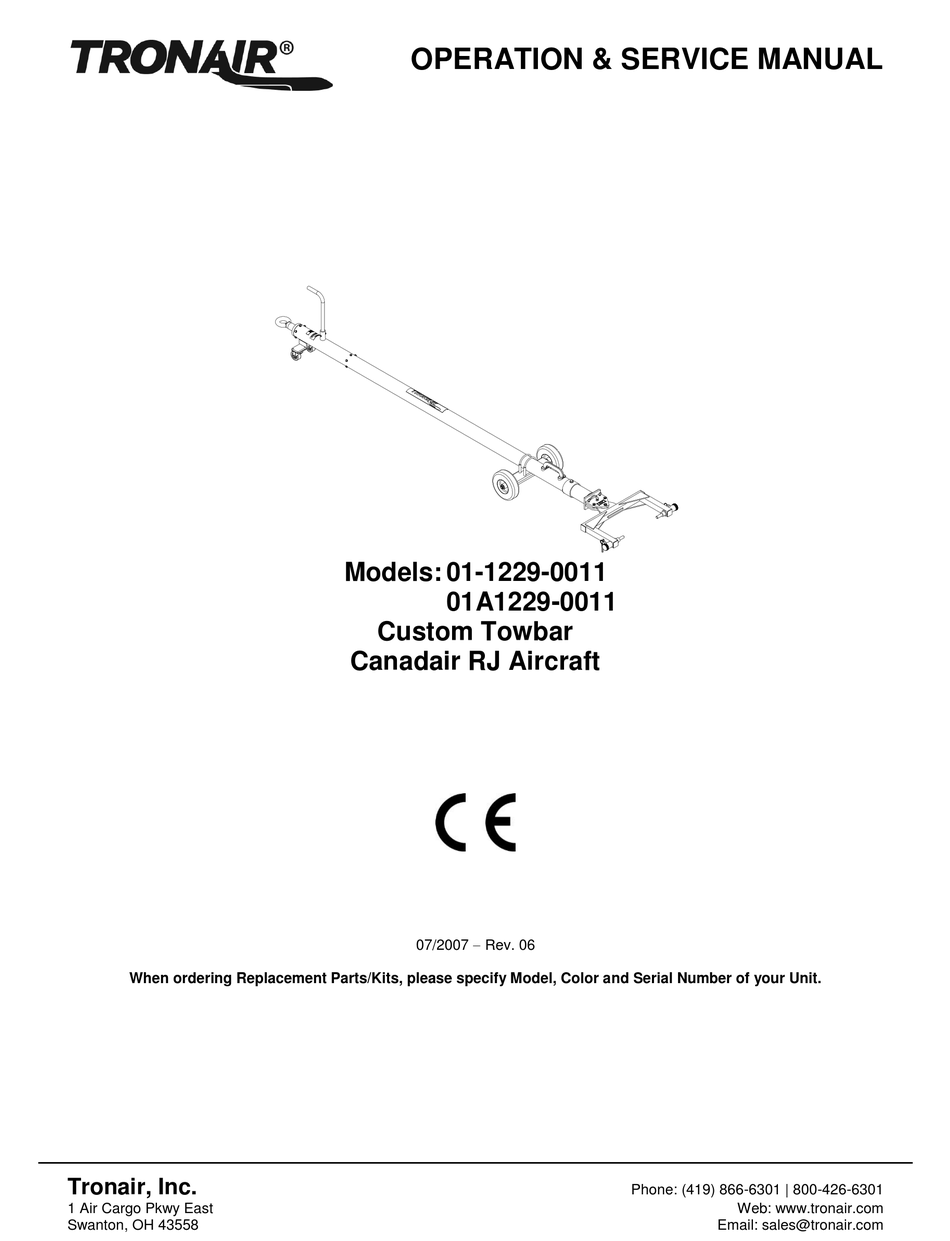

- Page 1 OPERATION & SERVICE MANUAL Models: 01-1229-0011 01A1229-0011 Custom Towbar Canadair RJ Aircraft 07/2007 Rev. 06 When ordering Replacement Parts/Kits, please specify Model, Color and Serial Number of your Unit. Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 01/2004 pg 1 Added warning 03/2007 Major revision 07/2007 Modified 2.1 General Warning...
- Page 3 Models: 01-1229-0011 and 01A1229-0011 Custom Towbar - Canadair RJ Aircraft TABLE OF CONTENTS PAGE DESCRIPTION .................................. 1 1.1SPECIFICATIONS................................ 1 SAFETY INFORMATION ..............................1 2.1GENERAL ..................................1 OPERATION ..................................2 3.1PRELIMINARY CHECKLIST ............................2 3.1.1 Towbar ................................2 3.1.2 Towing Head ............................... 2 3.2USAGE PROCEDURE ..............................
-
Page 4: Specifications
Tronair towbars/heads must only be used with matching Tronair heads/towbars, and Tronair shear pins. This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 5: Usage Procedure
Models: 01-1229-0011 and 01A1229-0011 Custom Towbar - Canadair RJ Aircraft OPERATION PRELIMINARY CHECKLIST 3.1.1 Towbar Check weld between towbar and handles for cracks. Check air pressure in tires; inflate/deflate as required. Check all fastener connections to ensure they are not loose or missing. -
Page 6: Training Program
Custom Towbar - Canadair RJ Aircraft 3.2.3 Couplers (continued) Tronair recommends a telecoupler pintle hook arrangement. This arrangement is known to eliminate binding. Tronair offers a Standard Telecoupler, Model Number 01-1950-5000, for use on tugs. Reference Figure 3. FIGURE 3 01-1950-5000 Standard Telecoupler... -
Page 7: Parts List And Illustrations
GUARANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the... - Page 8 U-1024 Wheel, Pneumatic Tire Due to the high compression used in assembly, this Shock Assembly should be returned to Tronair for repair. Discuss with Customer Service Salesperson. Use Loctite 271 or equivalent during re-assembly. 07/2007 | Rev. 06...
- Page 9 Models: 01-1229-0011 and 01A1229-0011 Custom Towbar - Canadair RJ Aircraft Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description Z-5614-01-01 (Reference Only) Not Sold Separately Weldment, Towbar Assembly, Head; consists of:...
- Page 11 APPENDIX I Declaration of Conformity...
-
Page 13: Declaration Of Conformity
DECLARATION of CONFORMITY The design, development and manufacture is in accordance with European Community guidelines Custom Towbars 01-1229-0011 01A1229-0011 Relevant provisions complied with by the machinery: 2006/42/EC Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the Manufacturer: Quality Assurance Representative Tronair, Inc.
