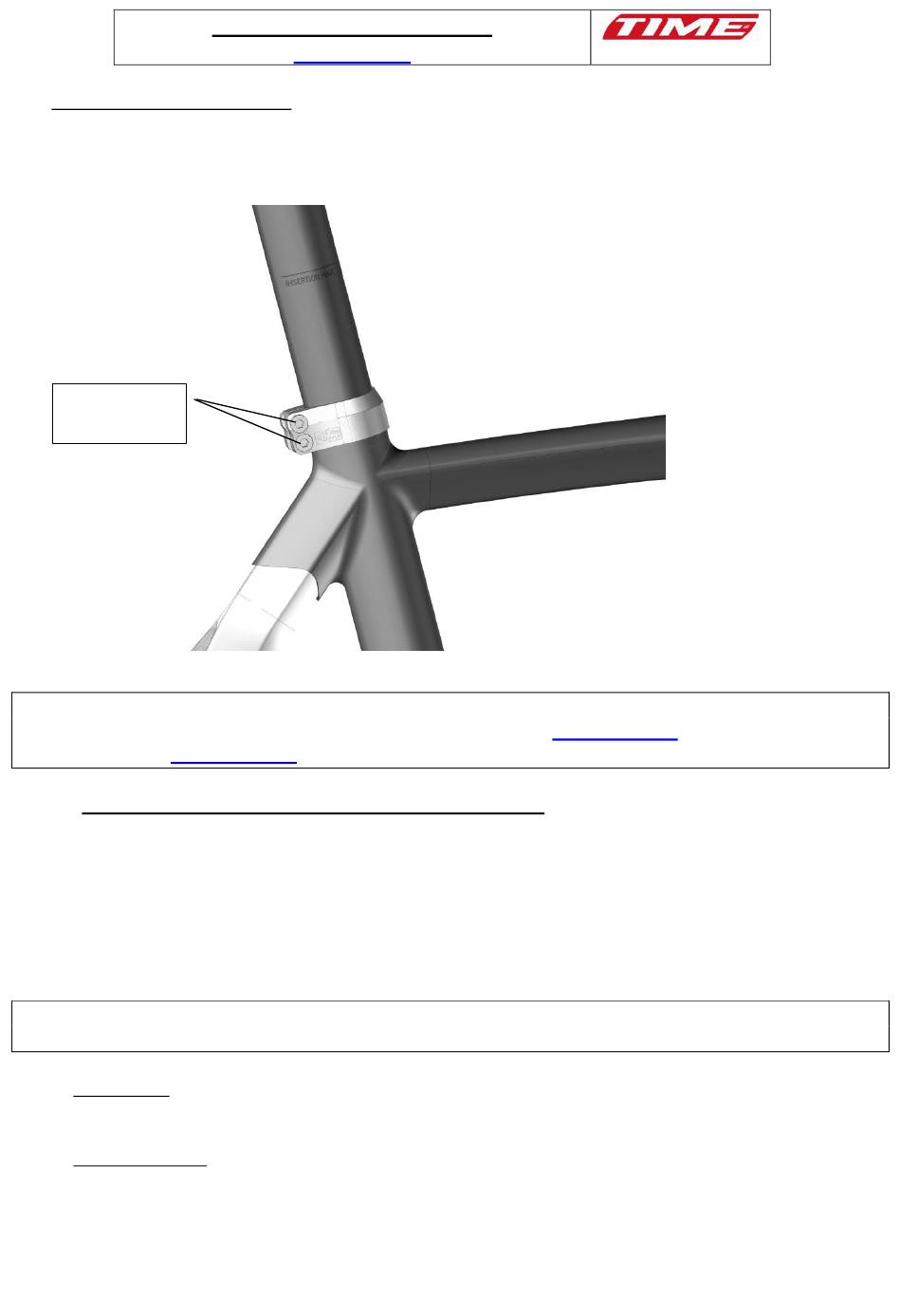

5) Tightening of saddle collar
Once the saddle height has been determined, tighten the saddle collar to the recommended torque of
5Nm, while being careful to alternate the tightening on each bolt (fig 5).
Torque Max
5 Nm
Figure 5
Important:
In no case should the seatpost extend beyond the limit maked Max extension, or inserted beyond
the limit marked Max insertion.
B) STEM HEIGHT ADJUSTMENT AND STEM SET-UP
The RX Instinct frames
The QUICKSET concept involves separating the headset adjustment from the stem adjustment, all while
maintaining the advantages of the Aheadset system (TIME patent). The cyclist can therefore adjust their
position without changing the headset adjustment. This solution makes any sort of compression system
obsolete.
The QUICKSET headset adjustment is factory set, and therefore it is not necessary to take it apart
beforehand.
1) Stem set-up
- Go to the instructions provided with the chosen accessory.
2) Stem trial set-up
- Do a trial set-up to determine the height of the stem (fig.10)
- For maximum adjustment, a kit of 3 spacers of 5, 10, and 15 mm are included with the module.
These spacers are designed to avoid any unwanted vibrations!
- Do a trial setting of the stem height.
Projet de notice de montage
RX Instinct
or modules are equipped with a patented headset system, QUICKSET.
