Saddle Height Adjustment - Time RX Instinct Assembly Instructions Manual

Bicycle set up
Before setting up the bike, make sure all parts and components are compatible with the TIME module
frame.
In order to adapt the TIME Translink module to the user's height and position, it will be necessary to
adjust the stem height as well as the saddle height.
A) Saddle height adjustment
B) Fork pivot height adjustment and stem set-up
C) Bottom bracket set-up.
D) Brake caliper set-up
E) Front derailleur set-up
F) Rear derailleur set-up
G) Supplementary components
H) Adjustments and maintenance
1 Headset adjustment
2 Headset bearing replacement
3 Rear derailleur support replacement
4 Cleaning
A) SADDLE HEIGHT ADJUSTMENT
The RX Instinct is equipped with a seatpost specifically designed for the frame.
Warning: This seatpost cannot be replaced by any other model, even if it has a similar shape!
1) Saddle set-up on the seat clamp
Make sure the lower cradle is in the correct position.

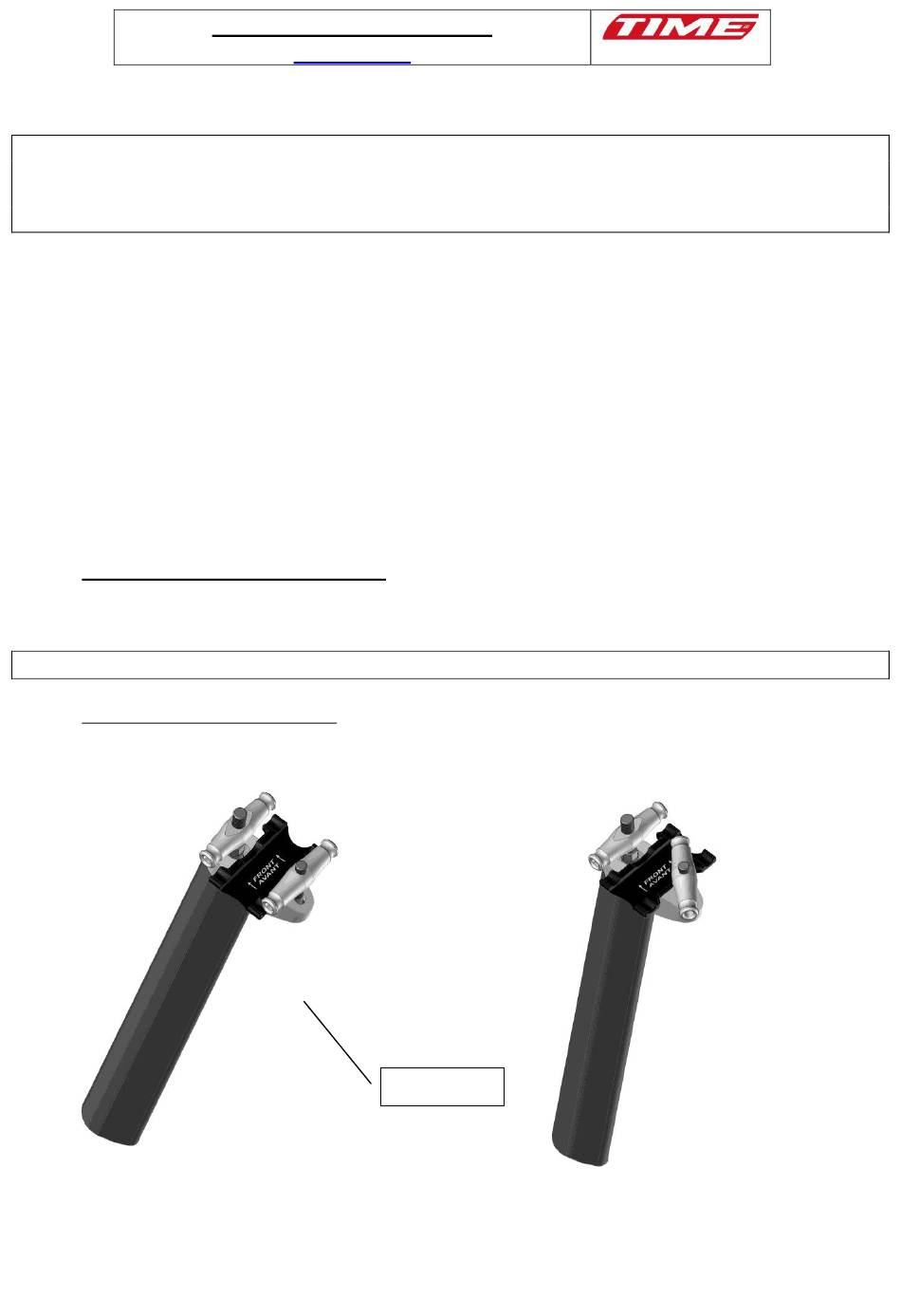

Loosen the rear cradle bolt (fig.1) to insert the seat rails (fig 1-1)
Figura 1
Projet de notice de montage
RX Instinct
Rear bolt
Figura 1-1
- 5 -
or
