Time RX Instinct Assembly Instructions Manual page 12

E) FRONT DERAILLEUR SET-UP
Before proceeding to set-up, familiarize yourself with the manufacturer's spec sheet for the front
derailleur.

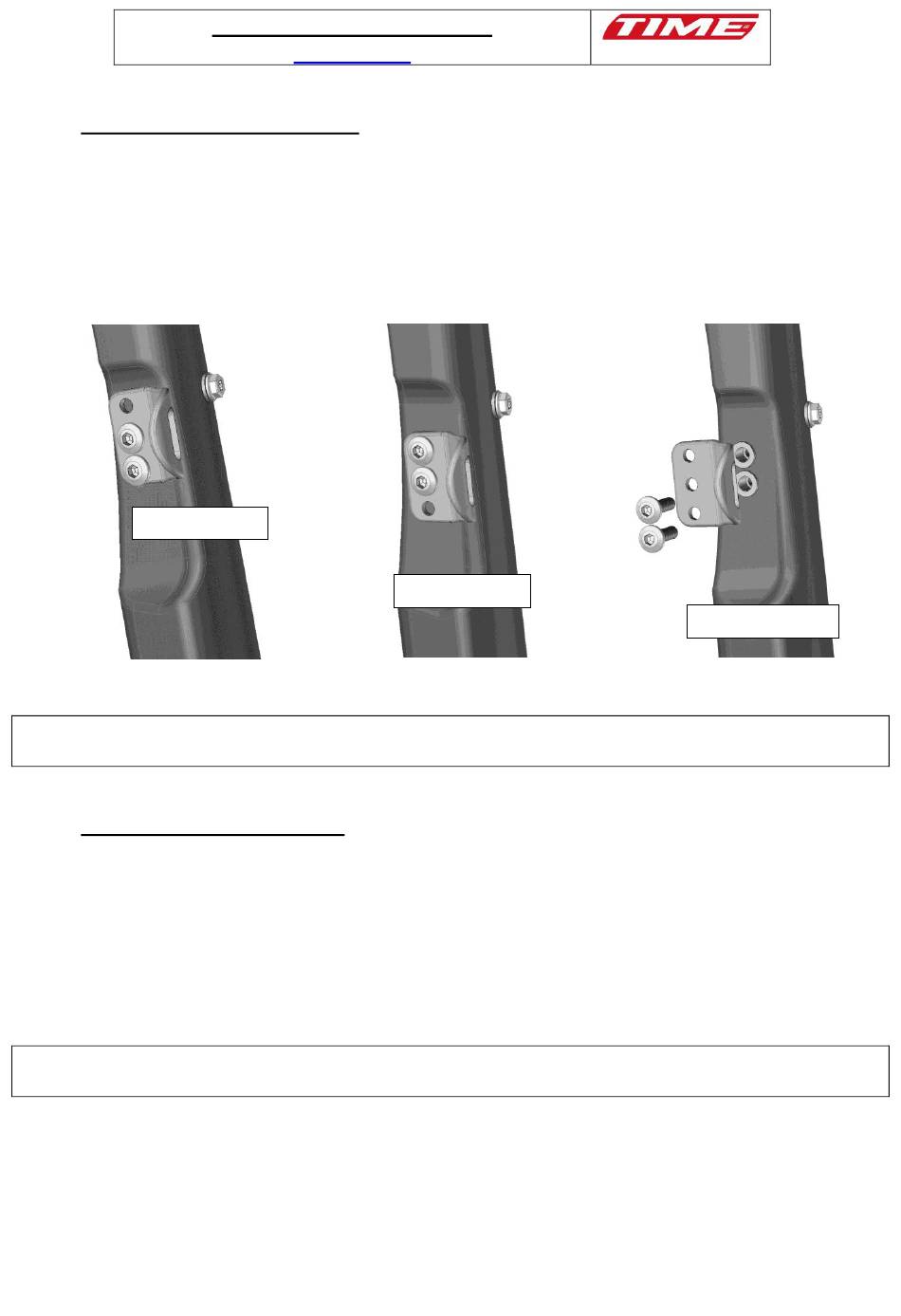

The TIME RX Instinct
- The derailleur hanger is adjustable in 2 positions.
- Upper position for standard pedals (chainring of 53 teeth) (fig.11)
- Low position for compact pedals (chainring of 50 teeth) (fig.12)
- Tighten the bolts (Ref: 600045041) to 7 Nm using a torque wrench.
Upper position
Figure 11
Warning: in no case force the position of the angular derailleur hanger, as this may irreparably damage
the frame.
F) REAR DERAILLEUR SET-UP
Before proceeding to set-up, familiarize yourself with the manufacturer's spec sheet for the rear
derailleur.
The TIME module is compatible with 10 and 11 speed derailleurs.
- Lightly grease the attachment bolt before set-up.
- Standard thread M 10 X 100
Warning: If adjusting the rear hanger turns out to be necessary, it is important to have a professional do
this with the correct tool. Large and repeated distortions can weaken the rear derailleur hanger.
Projet de notice de montage
RX Instinct
frames and module are made to fit an 'à braser' front derailleur.
Figure 12
- 12 -
Lower position
Expanded view
